TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E40932600
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 6.3
- Core Material
- CuCrTiSi
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.2
- Maximum Cable Cross section [mm²]
- 0.35
- Min Temp (C)
- -40
- Max Temp (C)
- +130

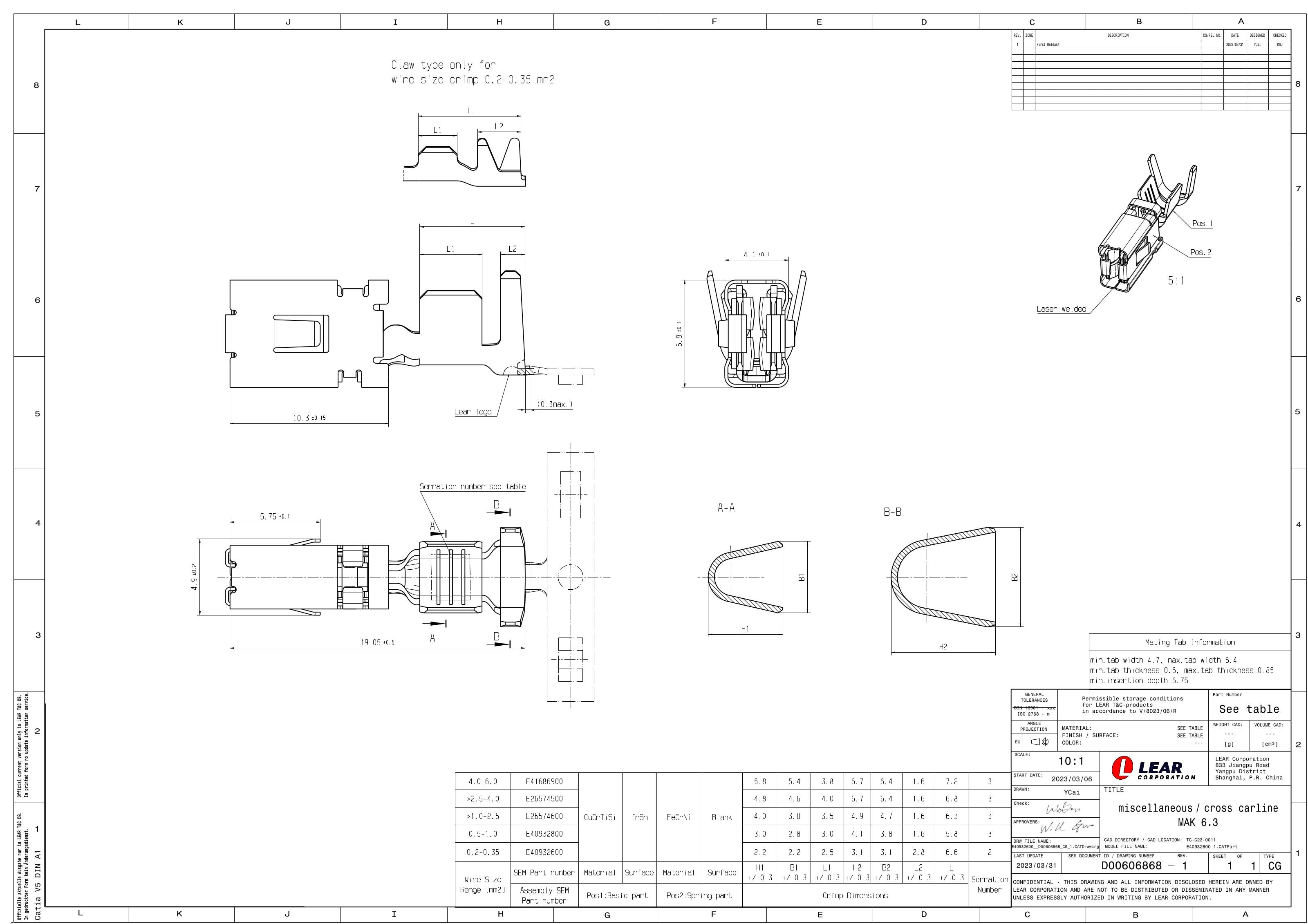

2D Drawing
2D Drawing E40932600
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E00011031
Product Category:
TERMINALSLegacy Part Number:
28304306185Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E00011488
Product Category:
TERMINALSLegacy Part Number:
28305306185Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E40932800
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
320257Q92
Product Category:
TERMINALSLegacy Part Number:
28306306185Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 1-2.5mm²
E26574600
Product Category:
TERMINALSLegacy Part Number:
28306000002Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
1
Maximum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
E00011489
Product Category:
TERMINALSLegacy Part Number:
28307306185Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
E26574500
Product Category:
TERMINALSLegacy Part Number:
28307000002Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 4-6mm²
E41686900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
46way MAK 1.5/2.8/6.3 Receptacle Unsealed Brown Connector
E30809600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Unsealed
46way MAK 1.5/2.8/6.3 Receptacle Unsealed Blue Connector
E30809800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Unsealed

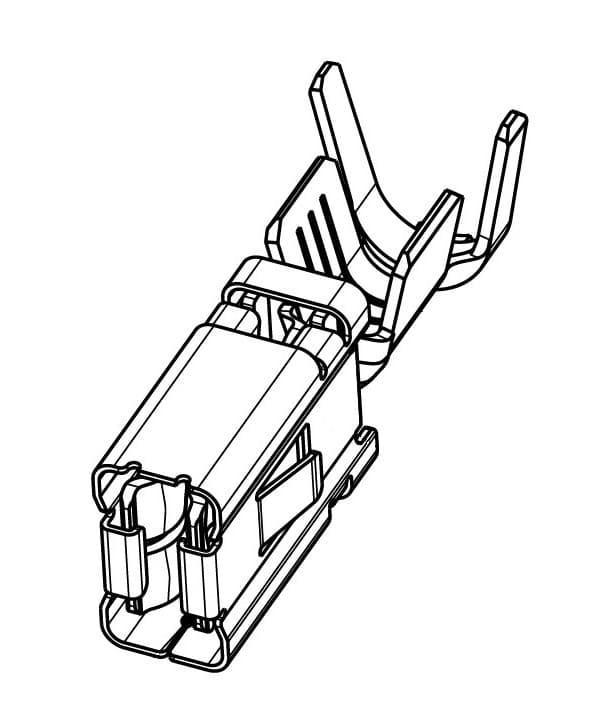

E40932600 - MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
Part Number: E40932600
Product Specification
An unsealed receptacle terminal belonging to the MAK product family, sized at 6.3 mm. It falls within the terminals product category.
Rated for an operating temperature range of –40 to +130 °C.
Part Number: E40932600.
This product requires other components for a fully functional assembly configuration:
Lear Connection Systems is offering other variants of this product:
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (E00011031)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E00011488)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E40932800)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (320257Q92)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 1-2.5mm² (E26574600)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm² (E00011489)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm² (E26574500)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 4-6mm² (E41686900)
