TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E00011488
- Legacy Part Number
- 28305306185
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 6.3
- Core Material
- CuCrTiSi
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1
- Min Temp (C)
- -40
- Max Temp (C)
- +130
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 1-2.5mm²
E26574600
Product Category:
TERMINALSLegacy Part Number:
28306000002Core Material
Cu
Plating Material
Sn
Minimum Cable Cross section [mm²]
1
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
E26574500
Product Category:
TERMINALSLegacy Part Number:
28307000002Core Material
Cu
Plating Material
Sn
Minimum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Unsealed Crimp Terminal, Ag, 4-6mm²
E02960400
Product Category:
TERMINALSLegacy Part Number:
28839000002Core Material
CuCrTiSi
Plating Material
Ag
Minimum Cable Cross section [mm²]
4
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E00011031
Product Category:
TERMINALSLegacy Part Number:
28304306185Core Material
CuCrTiSi
Plating Material
Sn
Minimum Cable Cross section [mm²]
0.2
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E40932600
Product Category:
TERMINALSLegacy Part Number:
–Core Material
CuCrTiSi
Plating Material
Sn
Minimum Cable Cross section [mm²]
0.2
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E40932800
Product Category:
TERMINALSLegacy Part Number:
–Core Material
CuCrTiSi
Plating Material
Sn
Minimum Cable Cross section [mm²]
0.5
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
320257Q92
Product Category:
TERMINALSLegacy Part Number:
28306306185Core Material
CuCrTiSi
Plating Material
Sn
Minimum Cable Cross section [mm²]
1.5
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
E00011489
Product Category:
TERMINALSLegacy Part Number:
28307306185Core Material
CuCrTiSi
Plating Material
Sn
Minimum Cable Cross section [mm²]
2.5
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 4-6mm²
E41686900
Product Category:
TERMINALSLegacy Part Number:
–Core Material
CuCrTiSi
Plating Material
Sn
Minimum Cable Cross section [mm²]
4
Loading...

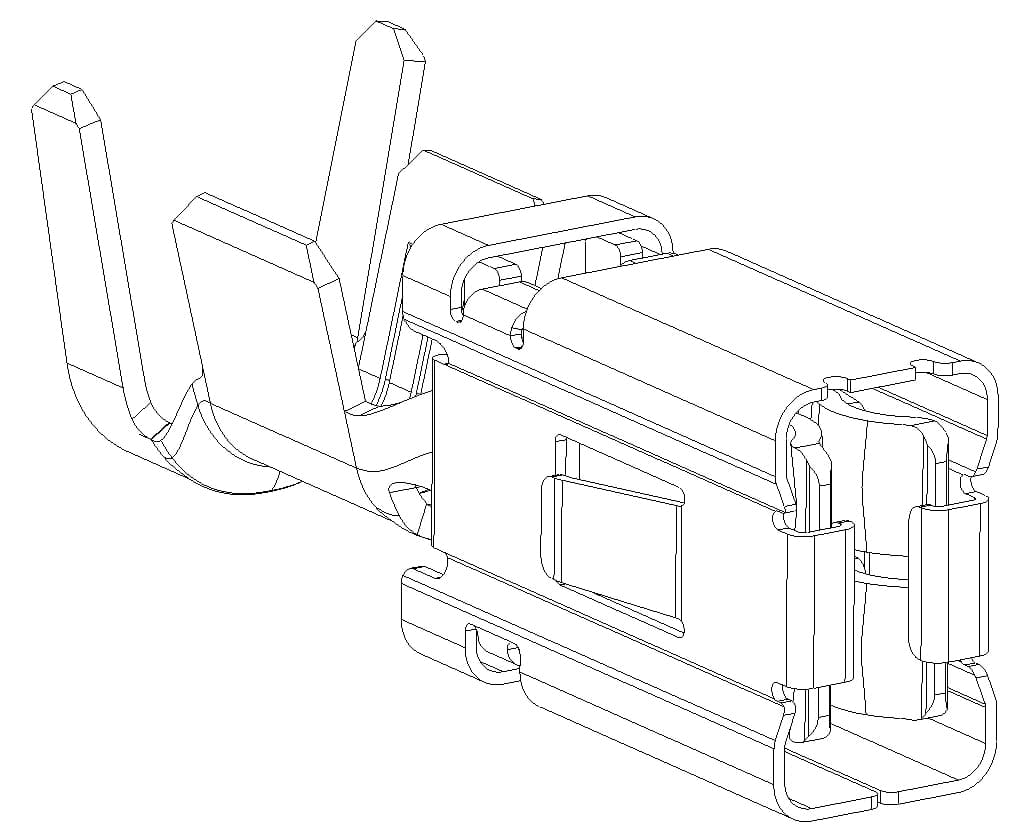

E00011488 - MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
Part Number: E00011488
Click to see 3D model
Product Specification
Previously cataloged under part number 28305306185.
Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.
The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
Part Number: E00011488, compatible with: 12414021, 12414021.
Lear Connection Systems is offering other variants of this product:
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 1-2.5mm² (E26574600)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm² (E26574500)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Ag, 4-6mm² (E02960400)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (E00011031)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (E40932600)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E40932800)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (320257Q92)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm² (E00011489)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 4-6mm² (E41686900)
