TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E40928100
- Product Family
- AFK
Other properties
- Terminal Size [mm]
- 1.5
- Core Material
- CuFe
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.2
- Maximum Cable Cross section [mm²]
- 0.35
- Min Temp (C)
- -40
- Max Temp (C)
- +130

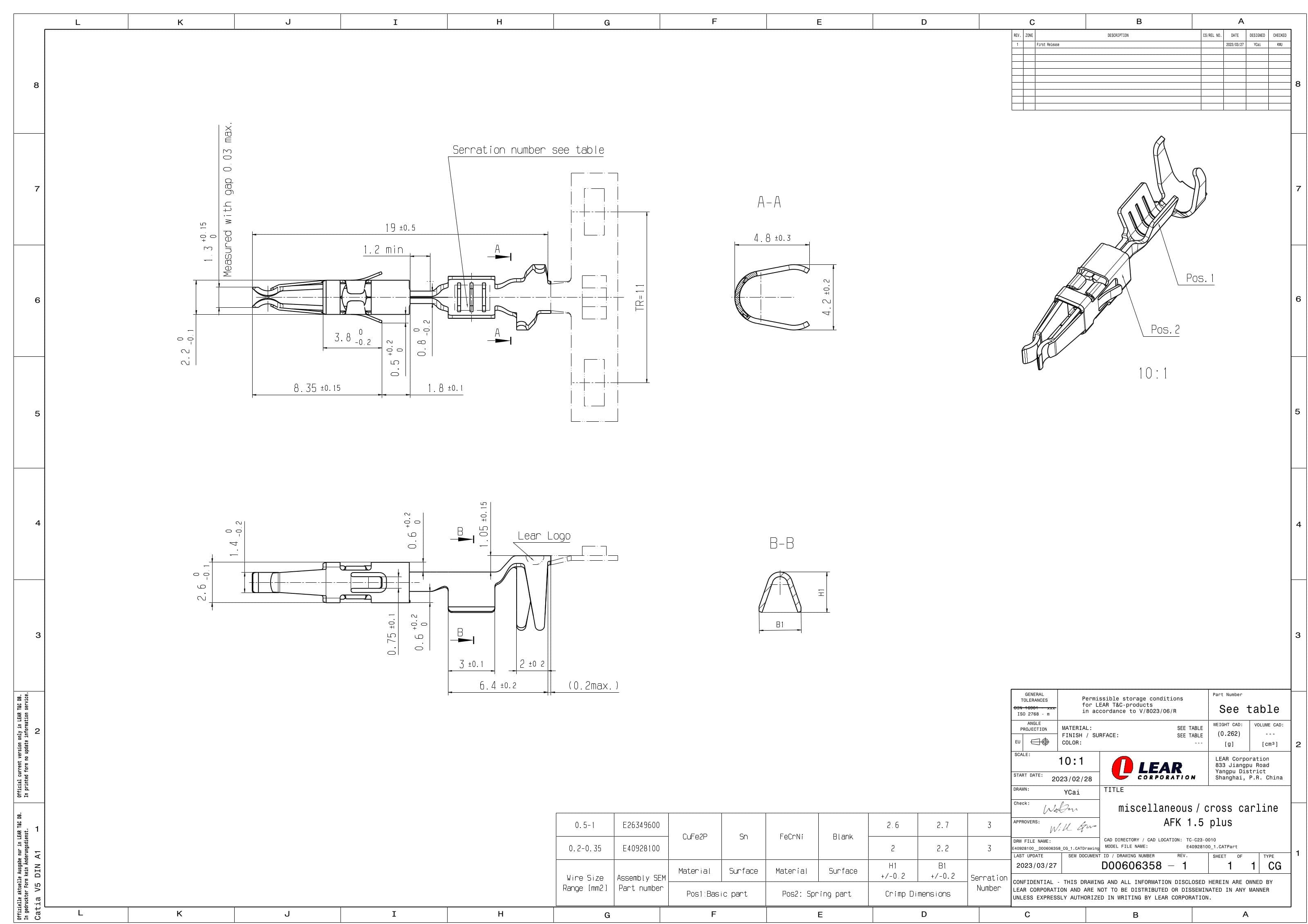

2D Drawing
2D Drawing E40928100
AFK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
320257AW5
Product Category:
TERMINALSLegacy Part Number:
26596331185Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E26349600
Product Category:
TERMINALSLegacy Part Number:
26041000001Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
4way AFK 1.5 Receptacle Unsealed Black Connector
E37112300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
1.5
Sealable
Unsealed
6way AFK 1.5 Receptacle Unsealed Black Connector
E52643900
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
6
Product Family
AFK
Terminal Size [mm]
1.5
Sealable
Unsealed

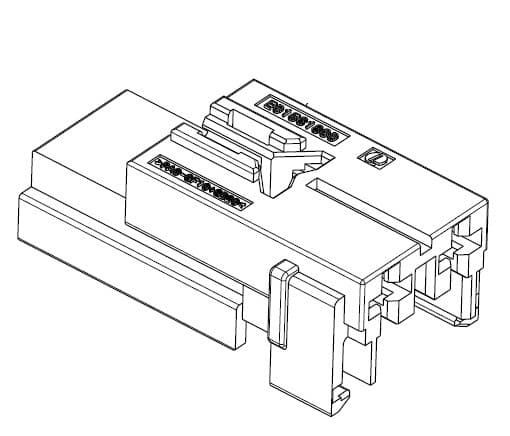

4way AFK 1.5/2.8 Receptacle Unsealed Black Connector
E01561800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
1.5, 2.8
Sealable
Unsealed
E40928100 - AFK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
Part Number: E40928100
Product Specification
A sealed receptacle terminal belonging to the AFK product family, sized at 1.5 mm. Categorized under terminals, it is designed for crimp termination.
Rated for an operating temperature range of –40 to +130 °C.
Part Number: E40928100.
This product requires other components for a fully functional assembly configuration:
Lear Connection Systems is offering other variants of this product:
