TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E26349600
- Legacy Part Number
- 26041000001
- Product Family
- AFK
Other properties
- Terminal Size [mm]
- 1.5
- Core Material
- Cu
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1
- Min Temp (C)
- -40
- Max Temp (C)
- +130
AFK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
320257AW5
Product Category:
TERMINALSLegacy Part Number:
26596331185Core Material
Cu
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
AFK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
E40928100
Product Category:
TERMINALSLegacy Part Number:
–Core Material
CuFe
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2

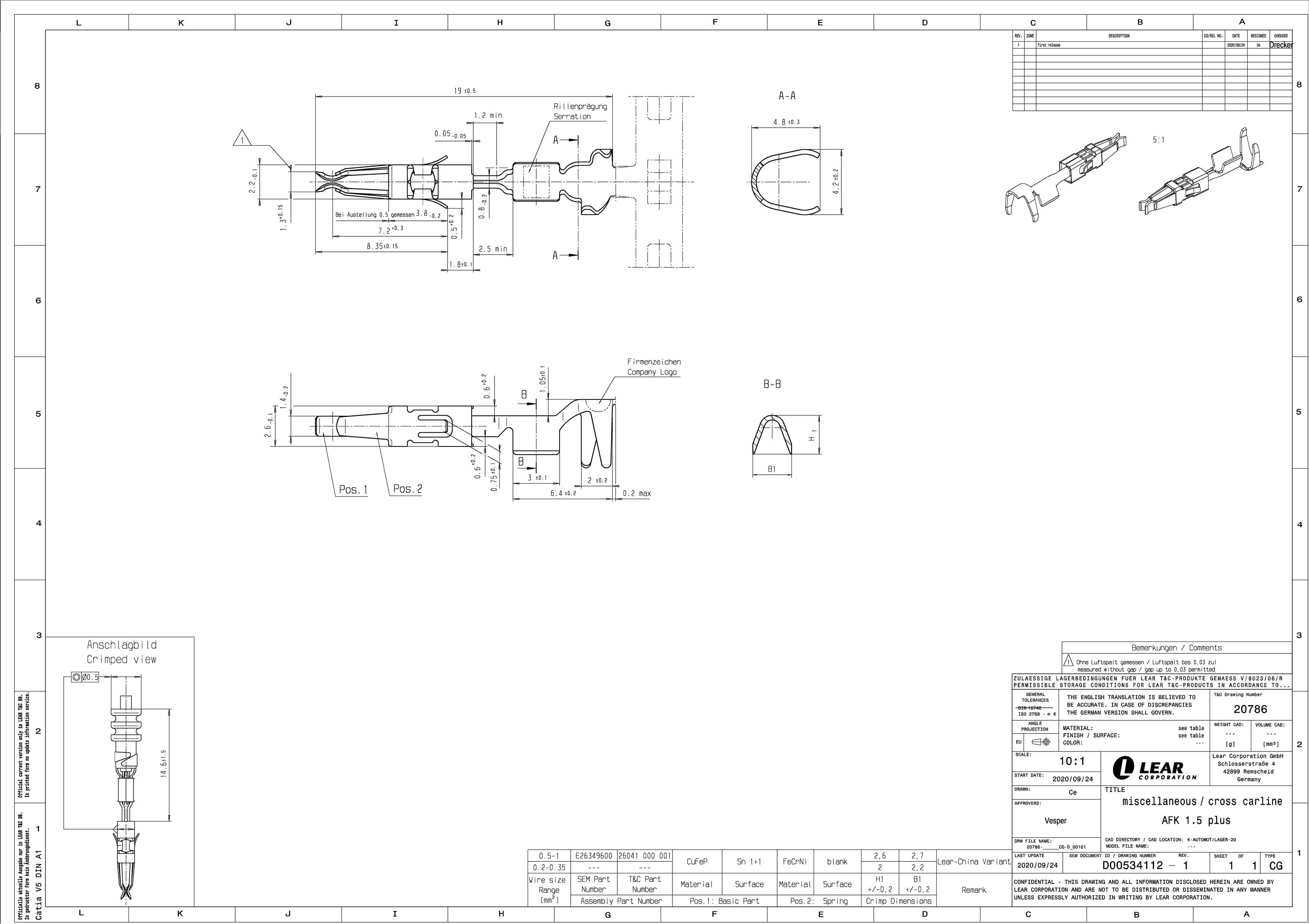

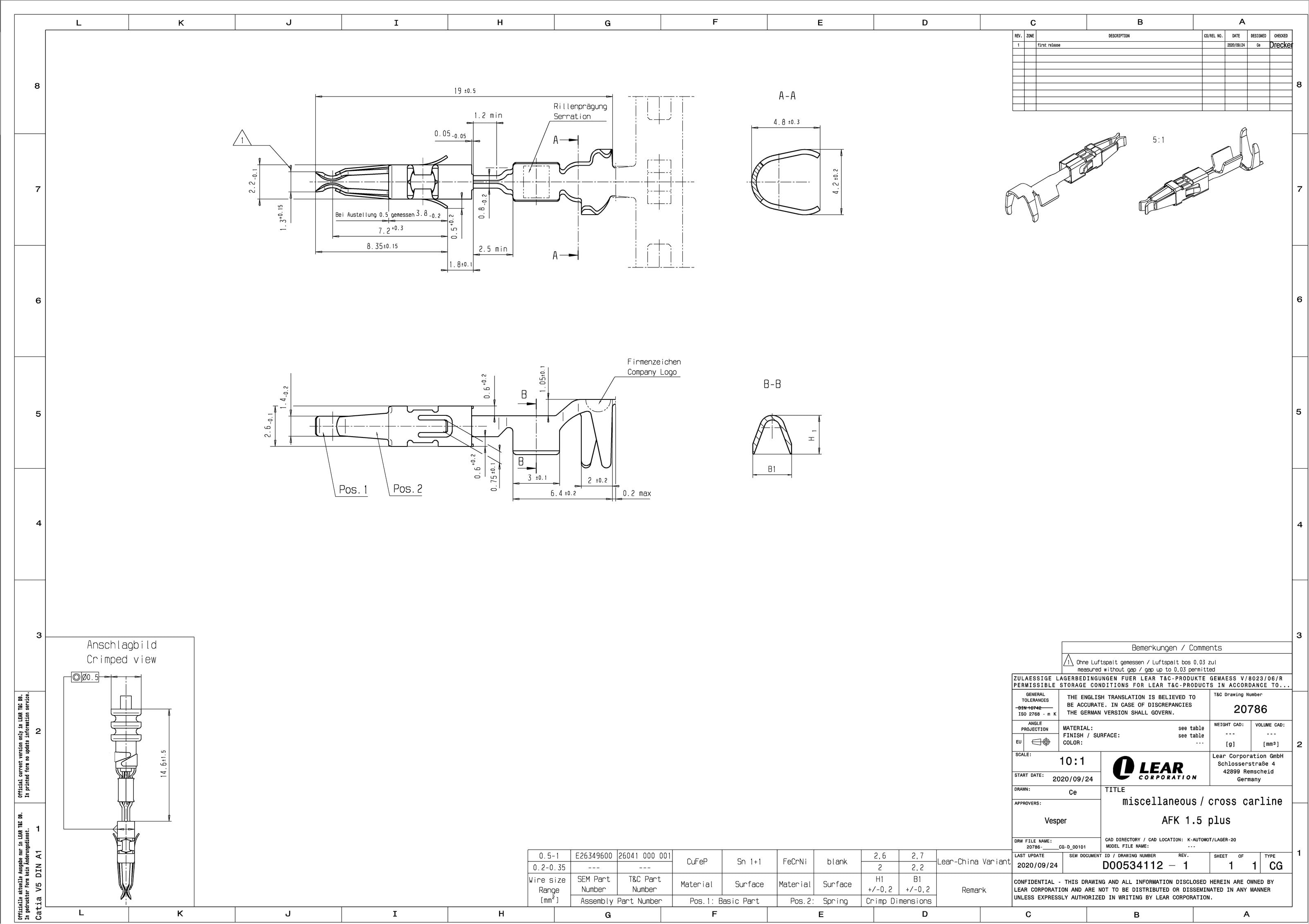

E26349600 - AFK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
Part Number: E26349600
Product Specification
Previously cataloged under part number 26041000001.
Lear's AFK Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. Its high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. Two locking latches ensure secure locking in cavity.
lts compact design, low mating efforts and good terminal retention is ideal for high density connectors.
Part Number: E26349600.
