TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E01561800
- Product Family
- AFK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.5, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 85
- Connector Application
- Seat Motor

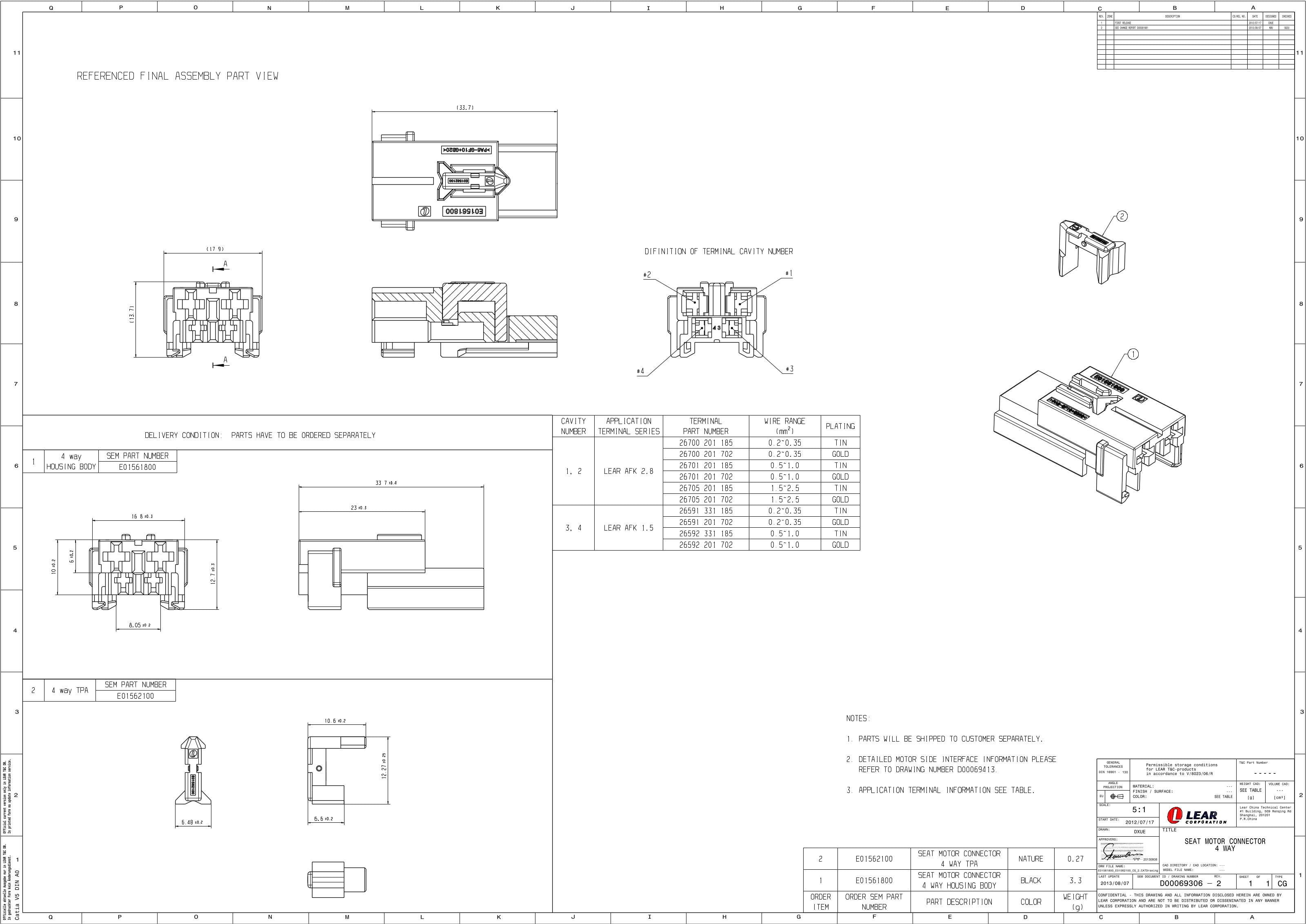

2D Drawing
2D Drawing E01561800
4way AFK 1.5/2.8 Receptacle Unsealed Natural Connector
E01562100
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
1.5, 2.8
Sealable
Unsealed
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
3202531A5
Product Category:
TERMINALSLegacy Part Number:
26591331185Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E26574100
Product Category:
TERMINALSLegacy Part Number:
26591000001Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
3202650K8
Product Category:
TERMINALSLegacy Part Number:
26592331185Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E26574000
Product Category:
TERMINALSLegacy Part Number:
26592000001Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
3202536L6
Product Category:
TERMINALSLegacy Part Number:
26700201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
3202581Y9
Product Category:
TERMINALSLegacy Part Number:
26701201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E26574300
Product Category:
TERMINALSLegacy Part Number:
26701000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
3202581I7
Product Category:
TERMINALSLegacy Part Number:
26705201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
E26574400
Product Category:
TERMINALSLegacy Part Number:
26705000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
E01561800 - 4way AFK 1.5/2.8 Receptacle Unsealed Black Connector
Part Number: E01561800
Product Specification
This unsealed receptacle connector belongs to the AFK product family within the Connectors category, configured with 4 cavities to accommodate four circuits.
It accepts terminals in both 1.5 mm and 2.8 mm sizes, providing flexibility across compatible terminal dimensions. Primarily designed for seat motor applications in automotive vehicles.
The connector is equipped with Terminal Position Assurance (TPA), ensuring terminals are fully seated and locked within their cavities during and after assembly.
The main connector part is molded in PA6 GF GB with a dominant black color. Operating temperature range spans -40 °C to 85 °C.
Part Number: E01561800.
This product requires other components for a fully functional assembly configuration:
- 4way AFK 1.5/2.8 Receptacle Unsealed Natural Connector (E01562100)
- AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (3202531A5)
- AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (E26574100)
- AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (3202650K8)
- AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E26574000)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (3202536L6)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (3202581Y9)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E26574300)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (3202581I7)
- AFK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (E26574400)
