TECHNICAL INFORMATION

Identification

Product Category
CONNECTORS
Part Number
E52643900
Product Family
AFK

Other properties

No. of cavities
6
Terminal Type
Receptacle
Terminal Size [mm]
1.5
Sealable
Unsealed
Color
BLACK

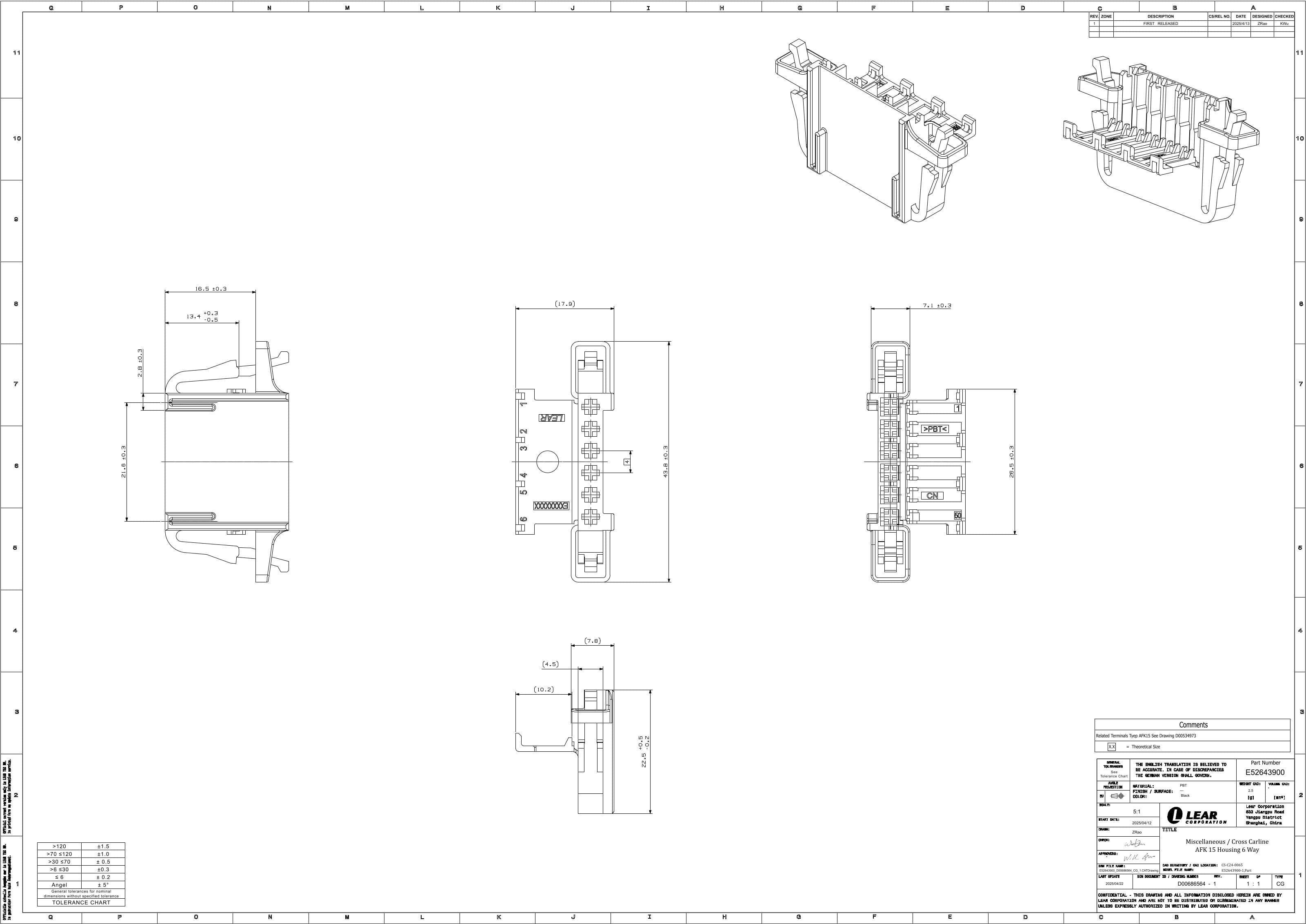

2D Drawing

2D Drawing E52643900

DOWNLOAD
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
3202531A5
Product Category:
TERMINALS
Legacy Part Number:
26591331185
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E26574100
Product Category:
TERMINALS
Legacy Part Number:
26591000001
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
3202650K8
Product Category:
TERMINALS
Legacy Part Number:
26592331185
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E26574000
Product Category:
TERMINALS
Legacy Part Number:
26592000001
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1

E52643900 - 6way AFK 1.5 Receptacle Unsealed Black Connector

Part Number: E52643900

6way AFK 1.5 Receptacle Unsealed Black Connector

Product Specification

This connector is a 6-cavity receptacle belonging to the AFK product family within the Connectors category. It accommodates 1.5 mm terminals and is unsealed, making it suited for applications where environmental sealing is not required.

The main connector part is molded in PBT with a dominant black color.

Part Number: E52643900.

This product requires other components for a fully functional assembly configuration:
