48V Sealed Eyelet Connector

Lear’s Sealed Eyelet ready for 48V connections e.g. OBC, HV Inverter and 48V Motor / Generator units. Ruggedized system for large cable applications. Ideal solution for 12 to 48V requiring sealed ring connections.

Published

Contents
48V Sealed Eyelet Connector

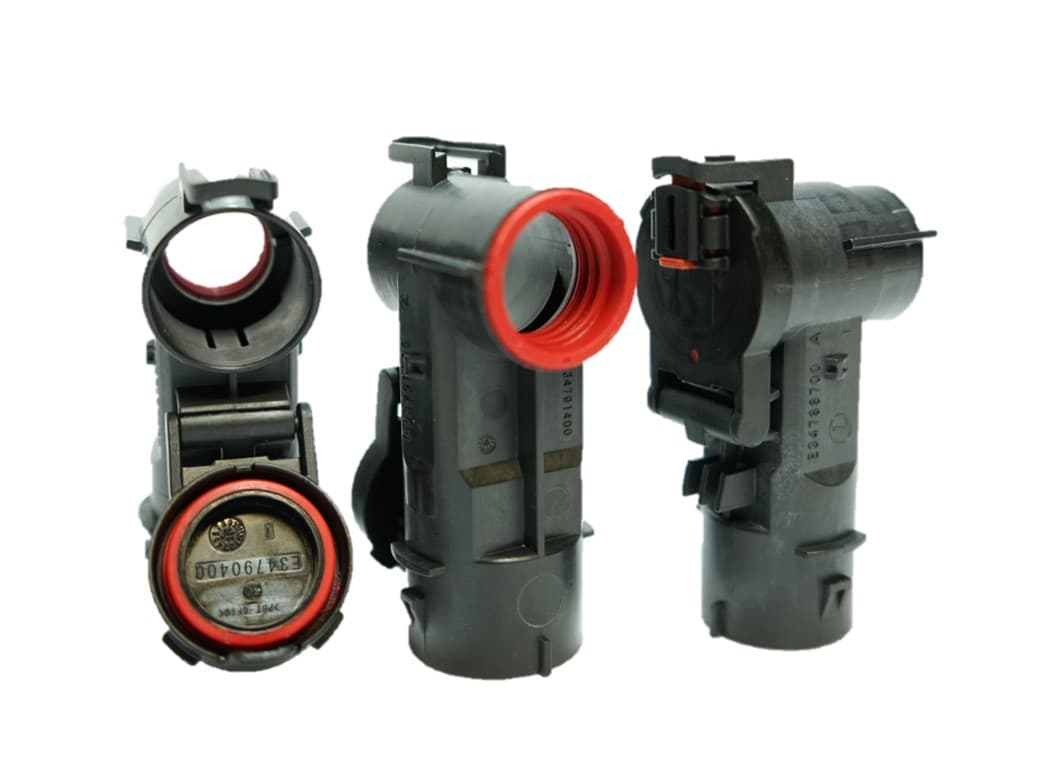

Lear's 48V Sealed Eyelet Connector provides flexibility and easier adaptation at the vehicle assembly plant. Design improvements allow use in harsher environmental conditions.



  • Fast and easy assembly process
  • High robustness against vibrations
  • High current carrying capabilities
  • Plastic Components ( UL-94 HB for Main Body, Cover & CPA, Seal Cap)
  • Seals LSR (2K) both Main Body & Cover
  • Third hand feature for connection to interface
  • Coding
  • Data Matrix Code (optional)
  • Terminal: Cu-HCP
  • Plating: Ag over Ni (fully post-plated)
  • Ultrasonic welded to wire CSA - 50 & 70mm²
  • Applicable to M8 screw/nut
  • Circuit Count: 1 Power
  • Terminal / Current Rating: Up to 240A @ 111°C (50mm² CSA) & up to 525A @ 111°C (70mm² CSA)
  • Wire Type / Size: 50-70mm²
  • Voltage Rating: 48V
  • Temperature Class: USCAR2 (-40 up to +140°C)
  • Seal Class: USCAR2 S2.5 (submersible, HP spray) / IP6K9K, IPX8
  • Vibration Class: USCAR2 V2 (Engine Profile)
