TECHNICAL INFORMATION

Identification

Product Category
CONNECTORS
Part Number
E30809600
Product Family
MAK

Other properties

No. of cavities
46
Terminal Type
Receptacle
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Unsealed
Color
BROWN
Min Temp (C)
-40
Max Temp (C)
125
Connector Application
Seat to body

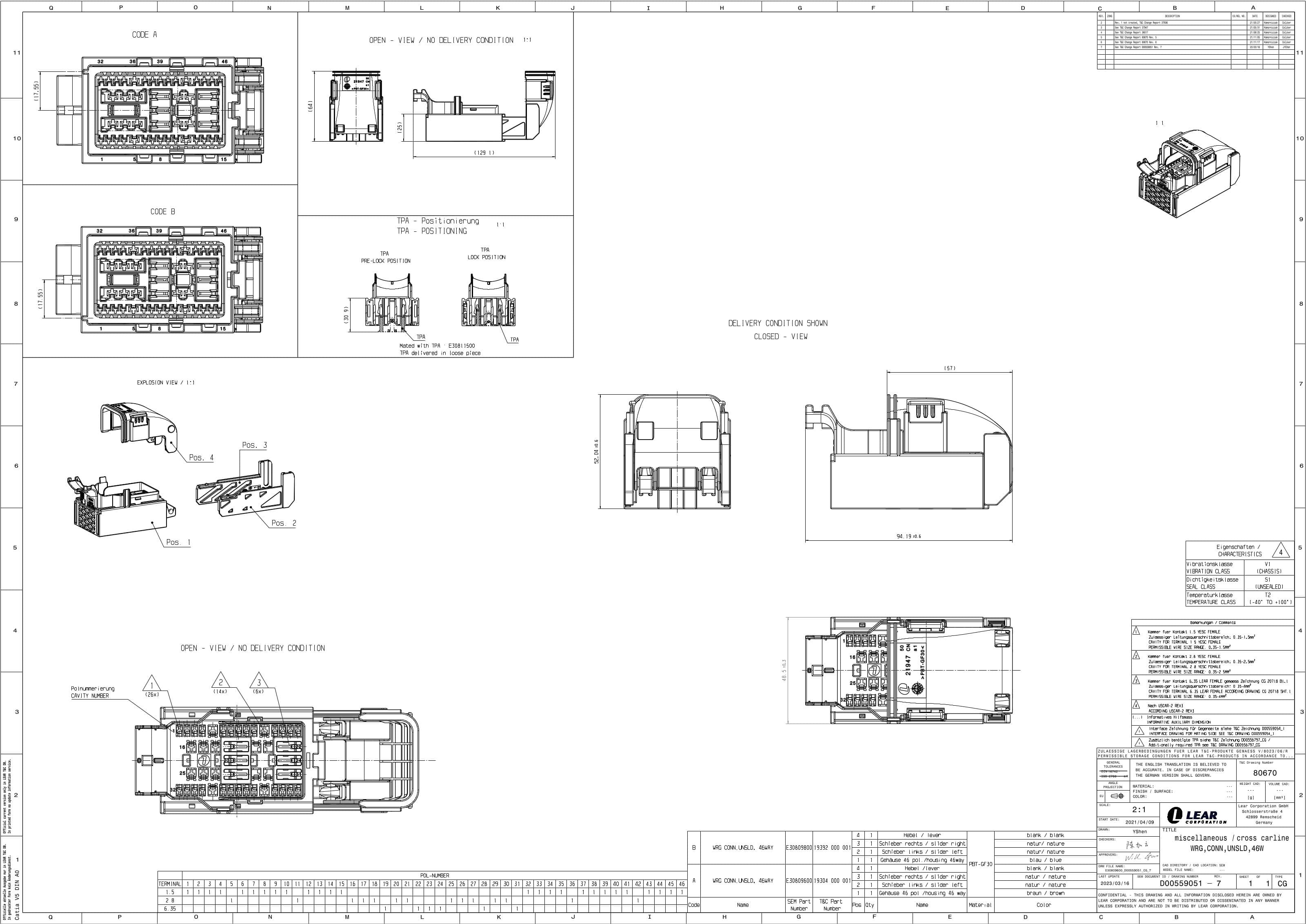

2D Drawing

2D Drawing E30809600

DOWNLOAD
46way MAK 1.5/2.8/6.3 Receptacle Unsealed Blue Connector
46way MAK 1.5/2.8/6.3 Receptacle Unsealed Blue Connector
E30809800
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
46
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Unsealed
46way MAK 1.5/2.8/6.3 Receptacle Unsealed Red Connector
46way MAK 1.5/2.8/6.3 Receptacle Unsealed Red Connector
E30811500
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
46
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Unsealed

E30809600 - 46way MAK 1.5/2.8/6.3 Receptacle Unsealed Brown Connector

Part Number: E30809600

46way MAK 1.5/2.8/6.3 Receptacle Unsealed Brown Connector

Product Specification

This unsealed receptacle connector belongs to the MAK product family within the CONNECTORS category, offering 46 cavities across a mixed terminal size range of 1.5, 2.8, and 6.3 mm.

Primarily designed for seat to body connections in automotive vehicles.

The main connector part is molded in PBT GF with a dominant brown color, and is rated for operation across a temperature range of -40 to 125 °C.

Part Number: E30809600.

This product requires other components for a fully functional assembly configuration:

Lear Connection Systems is offering other variants of this product:
