TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
320100423
Product Family
RECEPTACLE

Other properties

Terminal Size [mm]
6.3
Application
Micro Relay
Core Material
CuMg
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
1

DOWNLOADS

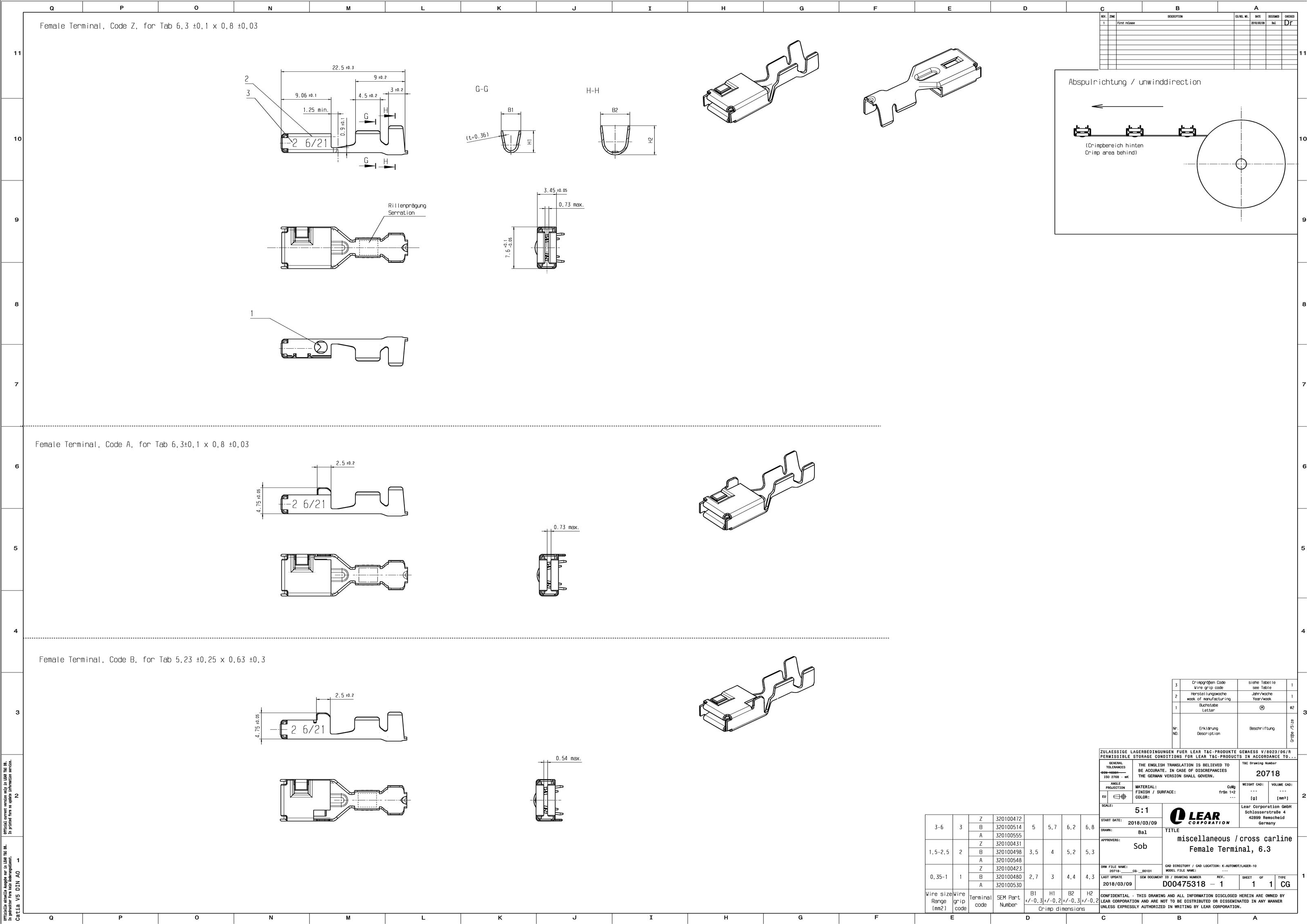

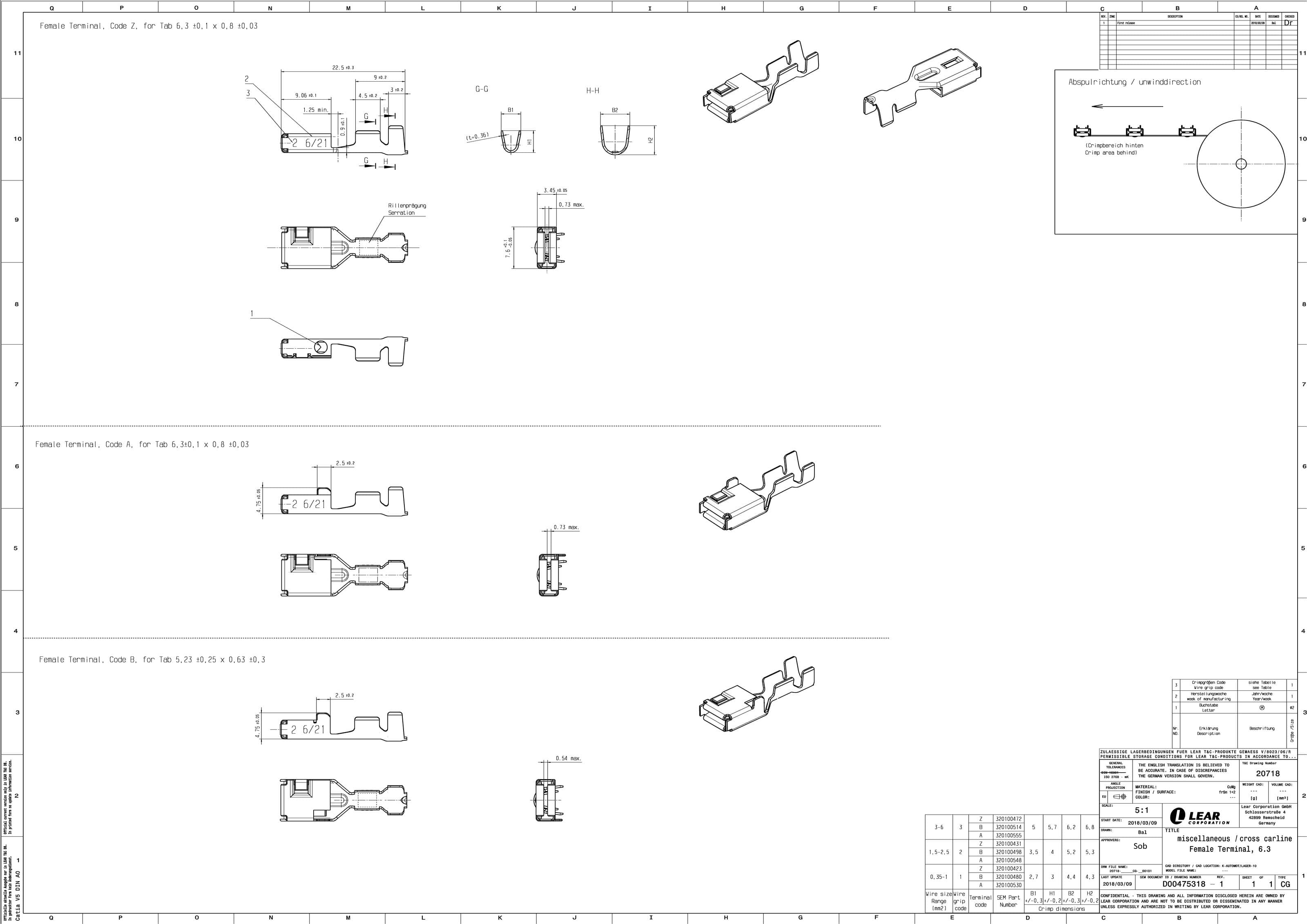

2D Drawing

2D Drawing 320100423

DOWNLOAD

3D PDF

3D PDF 320100423

DOWNLOAD

3D Cad

3D Cad 320100423

DOWNLOAD

Loading...

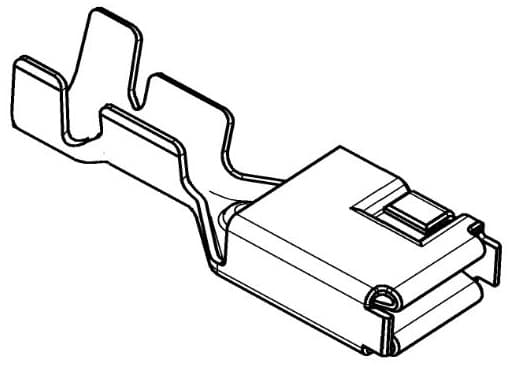

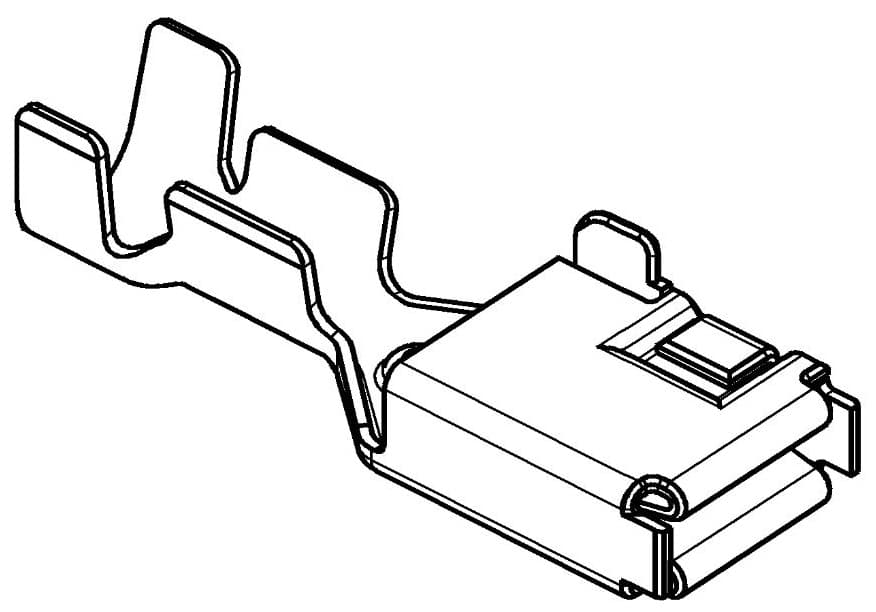

RECEPTACLE 6.3 TERMINAL

Part Number: 320100423

Click to see 3D model

RECEPTACLE 6.3 TERMINAL

Product Specification

Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
