TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E30811500
- Product Family
- MAK
Other properties
- No. of cavities
- 46
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.5, 2.8, 6.3
- Sealable
- Unsealed
- Color
- RED
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Seat to body
- Remarks
- Spacer

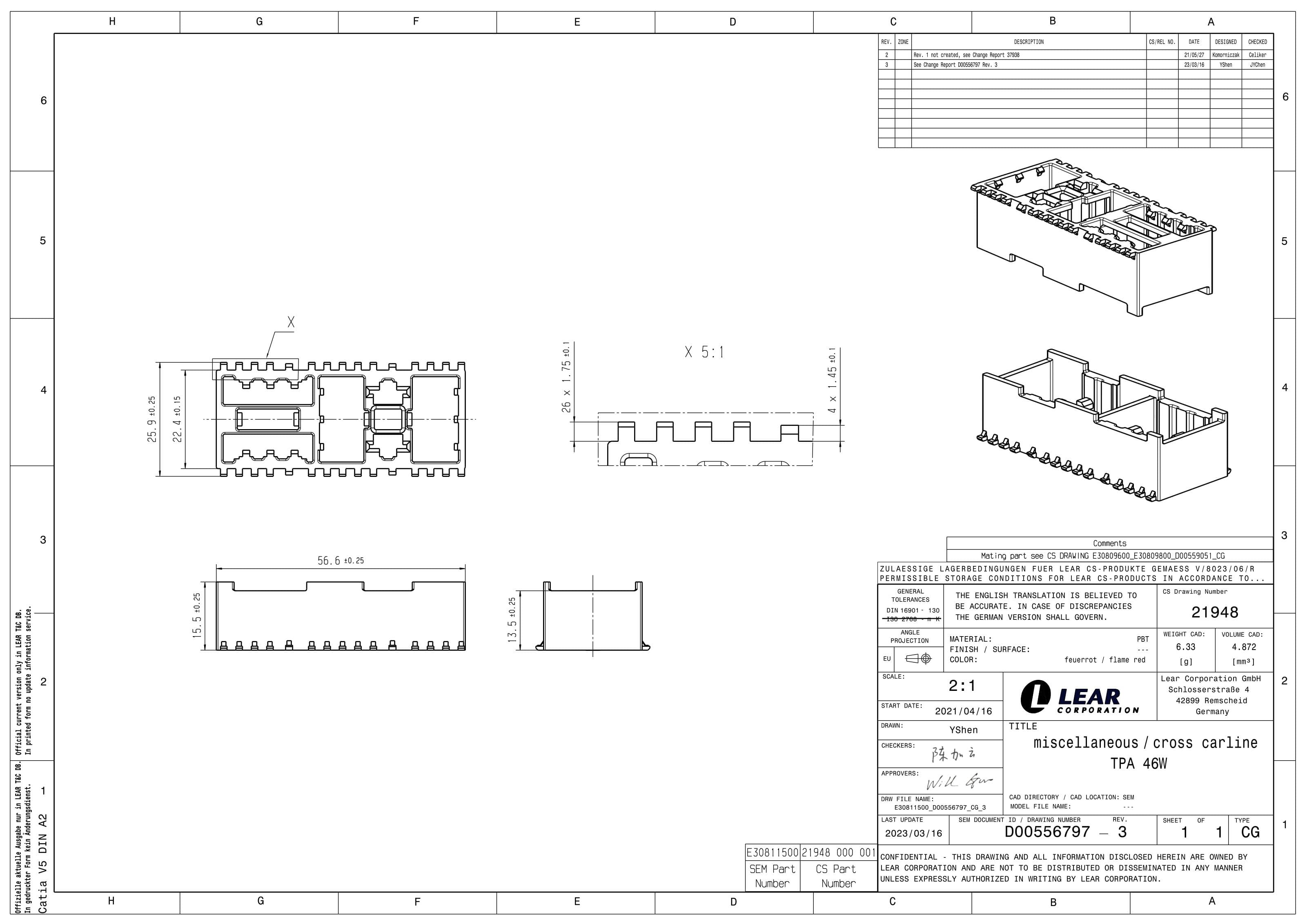

2D Drawing
2D Drawing E30811500
46way MAK 1.5/2.8/6.3 Receptacle Unsealed Brown Connector
E30809600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Unsealed
46way MAK 1.5/2.8/6.3 Receptacle Unsealed Blue Connector
E30809800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Unsealed
E30811500 - 46way MAK 1.5/2.8/6.3 Receptacle Unsealed Red Connector
Part Number: E30811500
Product Specification
This connector belongs to the MAK product family within the Connectors category, configured as a 46-cavity unsealed receptacle. It accommodates three terminal sizes — 1.5, 2.8, and 6.3 mm — providing flexibility across mixed-circuit harness designs.
Primarily designed for seat-to-body applications in automotive vehicles.
The main connector part is molded in PBT with a dominant red color. The operating temperature range spans -40 to 125 °C.
A spacer is included with this connector.
Part Number: E30811500.
This product requires other components for a fully functional assembly configuration:
