TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E30809800
- Product Family
- MAK
Other properties
- No. of cavities
- 46
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.5, 2.8, 6.3
- Sealable
- Unsealed
- Color
- BLUE
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Seat to body

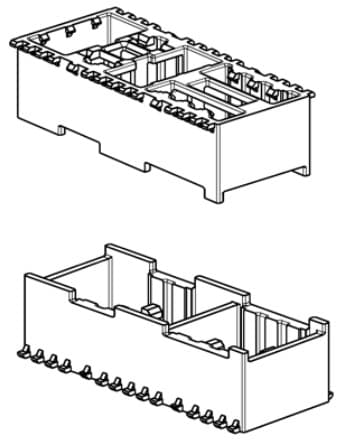

2D Drawing
2D Drawing E30809800
46way MAK 1.5/2.8/6.3 Receptacle Unsealed Red Connector
E30811500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Unsealed
MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm²
E34231200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
E33122000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E33122200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E31841000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E53848000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E33116800
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E53848100
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 6.3 Receptacle Sealed Crimp Terminal, Ag, 4-6mm²
E46492700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm²
E46492500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E40932600
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E40932800
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 4-6mm²
E41686900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
E30809800 - 46way MAK 1.5/2.8/6.3 Receptacle Unsealed Blue Connector
Part Number: E30809800
Product Specification
This unsealed receptacle connector belongs to the MAK product family within the CONNECTORS category, offering 46 cavities across a mixed terminal size range of 1.5, 2.8, and 6.3 mm.
Primarily designed for seat to body connections in automotive vehicles.
The connector operates across a temperature range of -40 to 125 °C. The main connector part is molded in PBT GF with a dominant blue color.
Part Number: E30809800.
This product requires other components for a fully functional assembly configuration:
- 46way MAK 1.5/2.8/6.3 Receptacle Unsealed Red Connector (E30811500)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm² (E34231200)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm² (E33122000)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E33122200)
- MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (E31841000)
- MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (E53848000)
- MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E33116800)
- MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E53848100)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Ag, 4-6mm² (E46492700)
- MAK 6.3 Receptacle Sealed Crimp Terminal, Sn, 4-6mm² (E46492500)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (E40932600)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E40932800)
- MAK 6.3 Receptacle Unsealed Crimp Terminal, Sn, 4-6mm² (E41686900)
Lear Connection Systems is offering other variants of this product:
