TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E30813200
Legacy Part Number
28272000002
Product Family
MAK

Other properties

Terminal Size [mm]
2.8
Core Material
CuCrTiSi
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
Min Temp (C)
-40
Max Temp (C)
+130

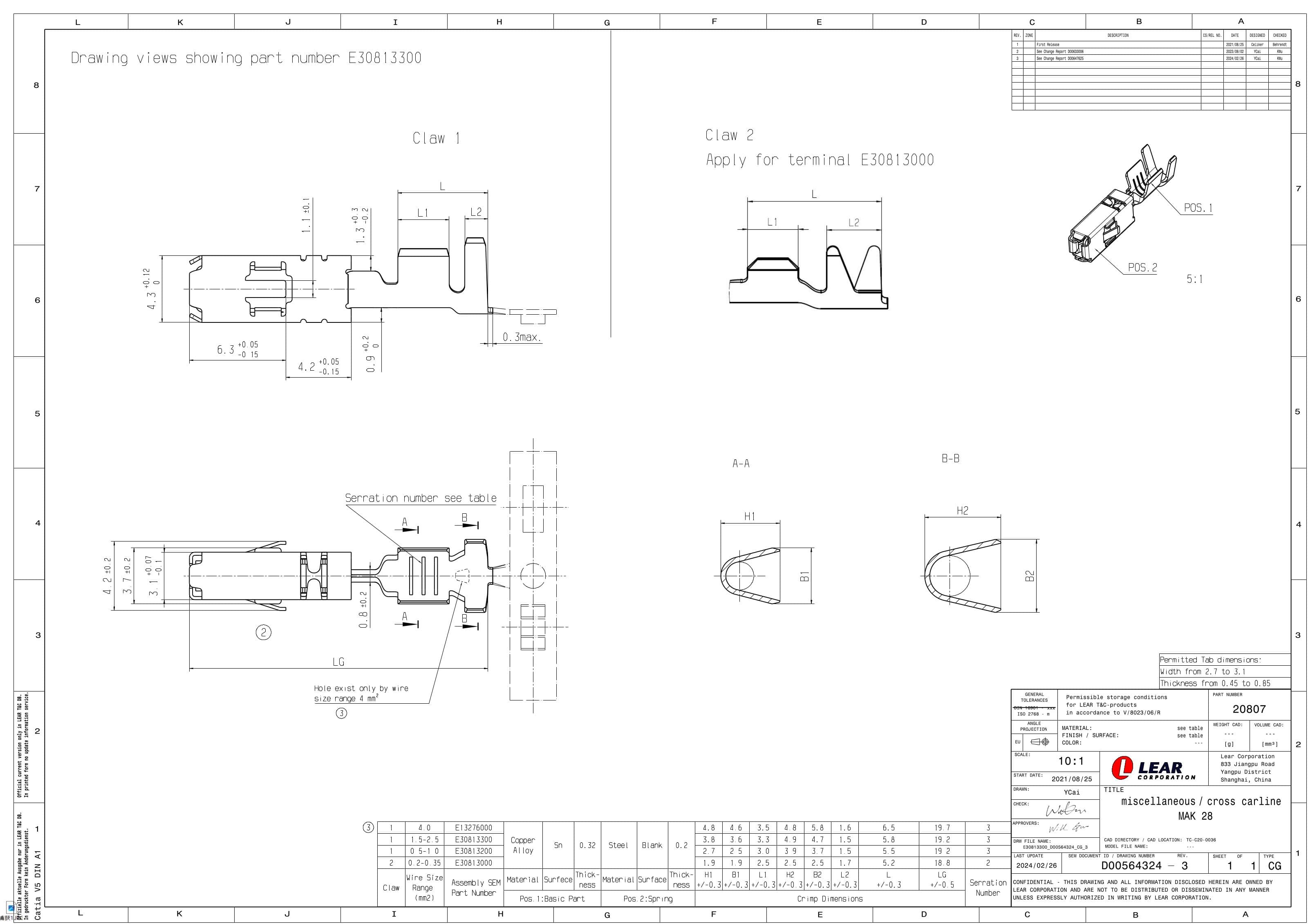

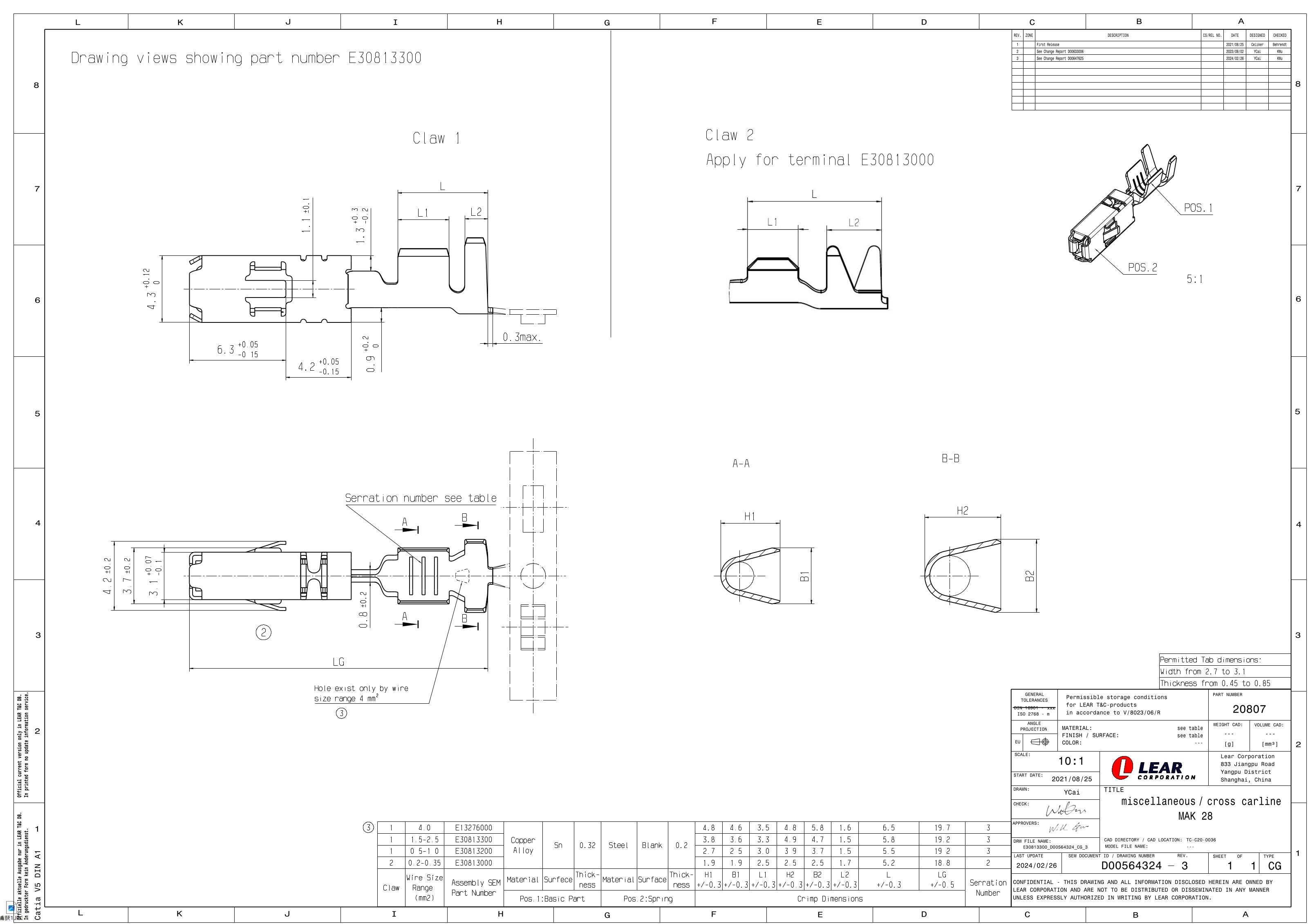

2D Drawing

2D Drawing E30813200

DOWNLOAD
22way MSK/MAK 0.63/1.5/2.8 Receptacle Unsealed Black Connector, Code A
22way MSK/MAK 0.63/1.5/2.8 Receptacle Unsealed Black Connector, Code A
E33901700
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
22
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.5, 2.8
Sealable
Unsealed
22way MSK/MAK 0.63/1.5/2.8 Receptacle Unsealed Gray Connector, Code B
22way MSK/MAK 0.63/1.5/2.8 Receptacle Unsealed Gray Connector, Code B
E33901800
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
22
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.5, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E32660000
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E32660400
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Gray Connector
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Gray Connector
E34329200
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed

E30813200 - MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²

Part Number: E30813200

MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²

Product Specification

Previously cataloged under part number 28272000002.

Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.

The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.

Part Number: E30813200.

This product requires other components for a fully functional assembly configuration:
