TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E57540400
- Product Family
- AFK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 4.8
- Sealable
- Sealed
- Color
- BLUE
- Connector Application
- Inline, 48V
- Mechanical coding
- A

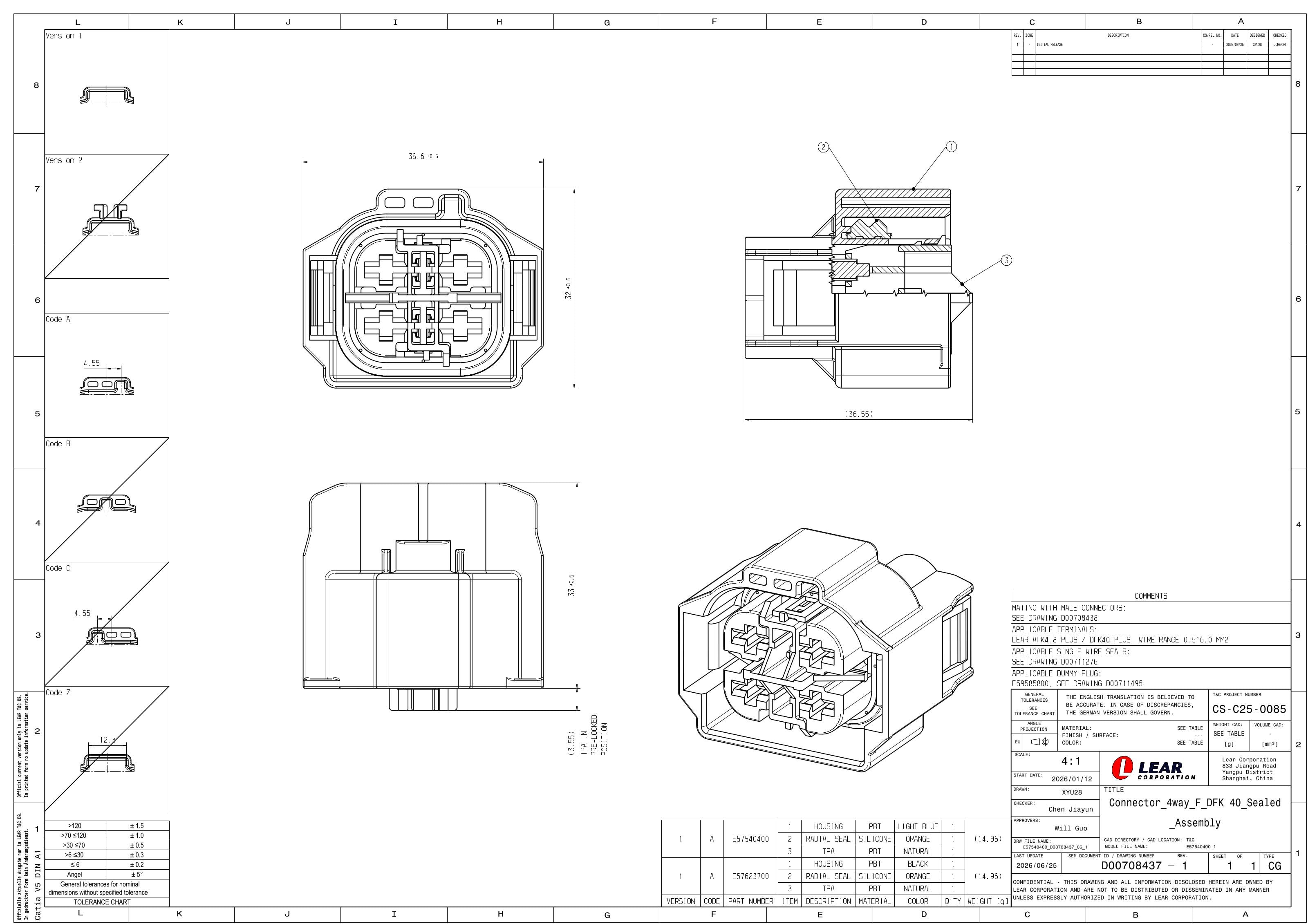

2D Drawing
2D Drawing E57540400
4way AFS 4.8 Tab Sealed Blue Connector, Code A
E57540500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFS
Terminal Size [mm]
4.8
Sealable
Sealed
4way AFS 4.8 Tab Sealed Black Connector, Code A
E57623900
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFS
Terminal Size [mm]
4.8
Sealable
Sealed
AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
3202535N2
Product Category:
TERMINALSLegacy Part Number:
26638201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
E32795600
Product Category:
TERMINALSLegacy Part Number:
26638000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
3202521A7
Product Category:
TERMINALSLegacy Part Number:
26637201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E32795500
Product Category:
TERMINALSLegacy Part Number:
26637000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
3202550H6
Product Category:
TERMINALSLegacy Part Number:
26636201185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
E32795400
Product Category:
TERMINALSLegacy Part Number:
26636000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
E57540400 - 4way AFK 4.8 Receptacle Sealed Blue Connector, Code A
Part Number: E57540400
Product Specification
This connector belongs to the AFK product family within the Connectors category, configured as a 4-cavity sealed receptacle with a terminal size of 4.8 mm.
Primarily designed for inline applications in automotive vehicles.
Mating integrity is ensured through a poka-yoke mechanical coding feature, designated Code A, which prevents incorrect connector mating.
The main connector part is molded in PBT with a dominant blue color.
Part Number: E57540400.
This product requires other components for a fully functional assembly configuration:
- 4way AFS 4.8 Tab Sealed Blue Connector, Code A (E57540500)
- 4way AFS 4.8 Tab Sealed Black Connector, Code A (E57623900)
- AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm² (3202535N2)
- AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm² (E32795600)
- AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (3202521A7)
- AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E32795500)
- AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (3202550H6)
- AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E32795400)
Lear Connection Systems is offering other variants of this product:
