TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202535N2
- Legacy Part Number
- 26638201185
- Product Family
- AFK
Other properties
- Terminal Size [mm]
- 2.8
- Core Material
- CuSn
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.2
- Maximum Cable Cross section [mm²]
- 0.35
- Min Temp (C)
- -40
- Max Temp (C)
- +130
4way AFK 4.8 Receptacle Sealed Black Connector, Code A
E57623700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
4.8
Sealable
Sealed
4way AFK 4.8 Receptacle Sealed Blue Connector, Code A
E57540400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
4.8
Sealable
Sealed
21way AFK 2.8 Receptacle Sealed Connector
3216786A7
Product Category:
CONNECTORSLegacy Part Number:
18655000000No. of cavities
21
Product Family
AFK
Terminal Size [mm]
2.8
Sealable
Sealed
21way AFK 2.8 Receptacle Sealed Connector
3216786B5
Product Category:
CONNECTORSLegacy Part Number:
18656000000No. of cavities
21
Product Family
AFK
Terminal Size [mm]
2.8
Sealable
Sealed
21way AFK 2.8 Receptacle Sealed Connector
3216786C3
Product Category:
CONNECTORSLegacy Part Number:
18756050000No. of cavities
21
Product Family
AFK
Terminal Size [mm]
2.8
Sealable
Sealed
21way AFK 2.8 Receptacle Sealed Connector
3216786H2
Product Category:
CONNECTORSLegacy Part Number:
18757050000No. of cavities
21
Product Family
AFK
Terminal Size [mm]
2.8
Sealable
Sealed
21way AFK 2.8 Receptacle Sealed Connector
3216786G4
Product Category:
CONNECTORSLegacy Part Number:
18756067000No. of cavities
21
Product Family
AFK
Terminal Size [mm]
2.8
Sealable
Sealed
21way AFK 2.8 Receptacle Sealed Connector
3216786L3
Product Category:
CONNECTORSLegacy Part Number:
18757067000No. of cavities
21
Product Family
AFK
Terminal Size [mm]
2.8
Sealable
Sealed
21way AFK 2.8 Receptacle Sealed Connector
3216786F6
Product Category:
CONNECTORSLegacy Part Number:
18756062000No. of cavities
21
Product Family
AFK
Terminal Size [mm]
2.8
Sealable
Sealed
21way AFK 2.8 Receptacle Sealed Connector
3216786K5
Product Category:
CONNECTORSLegacy Part Number:
18757062000No. of cavities
21
Product Family
AFK
Terminal Size [mm]
2.8
Sealable
Sealed
21way AFK 2.8 Receptacle Sealed Connector
3216786D1
Product Category:
CONNECTORSLegacy Part Number:
18756054000No. of cavities
21
Product Family
AFK
Terminal Size [mm]
2.8
Sealable
Sealed
21way AFK 2.8 Receptacle Sealed Connector
3216786J7
Product Category:
CONNECTORSLegacy Part Number:
18757054000No. of cavities
21
Product Family
AFK
Terminal Size [mm]
2.8
Sealable
Sealed
Loading...

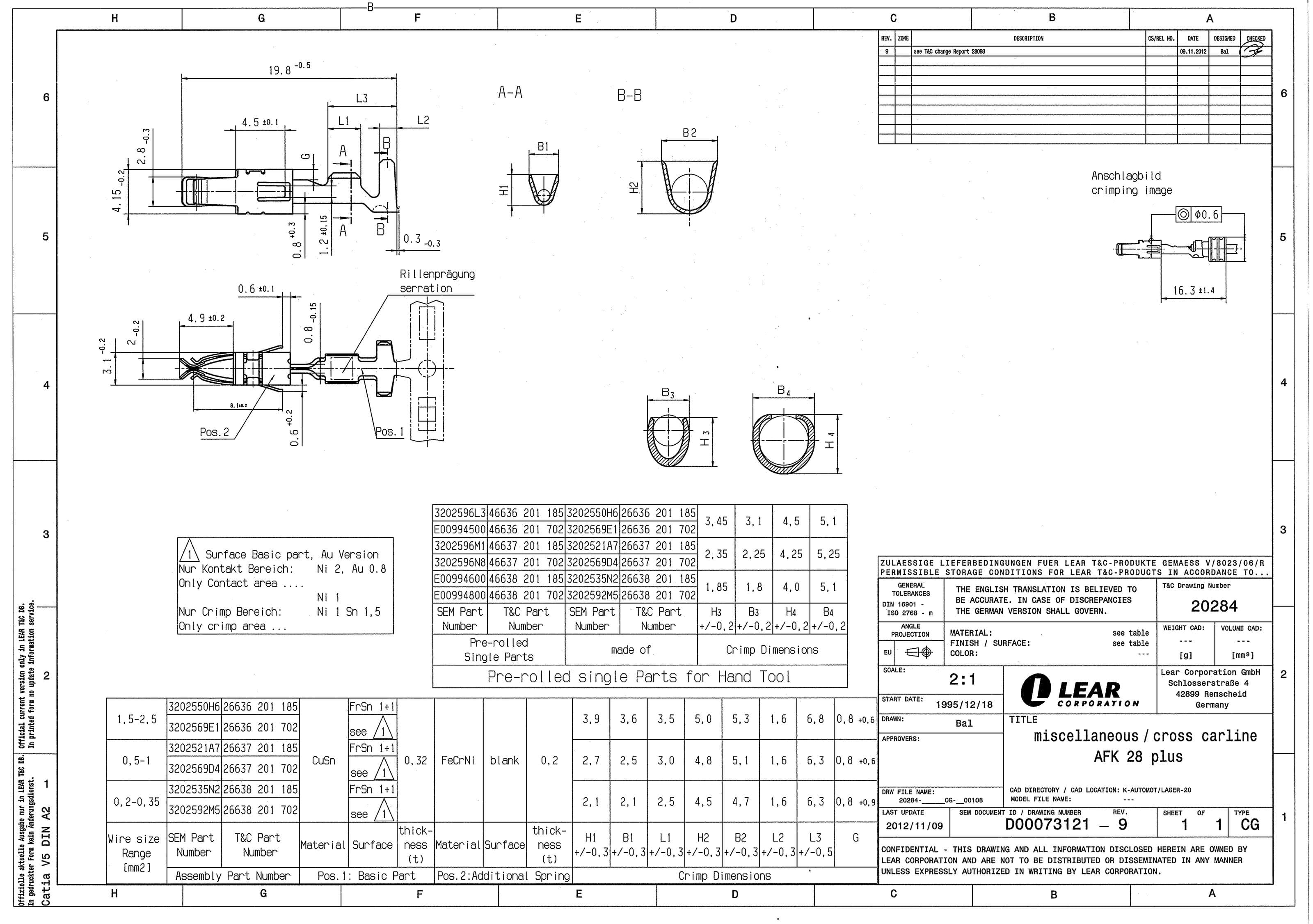

3202535N2 - AFK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
Part Number: 3202535N2
Click to see 3D model
Product Specification
Previously cataloged under part number 26638201185.
Lear's AFK Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. Its high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. Two locking latches ensure secure locking in cavity.
lts compact design, low mating efforts and good terminal retention is ideal for high density connectors.
Part Number: 3202535N2, compatible with: 927772-1, 9277723, 9299413, 15344659, 9642822, 9299411, 15344659.
This product requires other components for a fully functional assembly configuration:
- 4way AFK 4.8 Receptacle Sealed Black Connector, Code A (E57623700)
- 4way AFK 4.8 Receptacle Sealed Blue Connector, Code A (E57540400)
- 21way AFK 2.8 Receptacle Sealed Connector (3216786A7)
- 21way AFK 2.8 Receptacle Sealed Connector (3216786B5)
- 21way AFK 2.8 Receptacle Sealed Connector (3216786C3)
- 21way AFK 2.8 Receptacle Sealed Connector (3216786H2)
- 21way AFK 2.8 Receptacle Sealed Connector (3216786G4)
- 21way AFK 2.8 Receptacle Sealed Connector (3216786L3)
- 21way AFK 2.8 Receptacle Sealed Connector (3216786F6)
- 21way AFK 2.8 Receptacle Sealed Connector (3216786K5)
- 21way AFK 2.8 Receptacle Sealed Connector (3216786D1)
- 21way AFK 2.8 Receptacle Sealed Connector (3216786J7)
