TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
3202521A7
Legacy Part Number
26637201185
Product Family
AFK

Other properties

Terminal Size [mm]
2.8
Core Material
CuSn
Plating Material
Sn
Sealable
Sealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1

DOWNLOADS

2D Drawing

2D Drawing 3202521A7

DOWNLOAD

3D PDF

3D PDF 3202521A7

DOWNLOAD

3D Cad

3D Cad 3202521A7

DOWNLOAD

Loading...

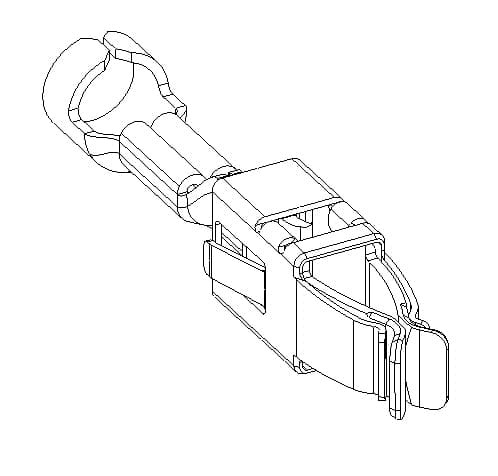

AFK 2.8 PLUS TERMINAL

Part Number: 3202521A7

Click to see 3D model

AFK 2.8 PLUS TERMINAL

Product Specification

Lear's AFK Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. Its high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. Two locking latches ensure secure locking in cavity.

lts compact design, low mating efforts and good terminal retention is ideal for high density connectors.
