TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E57960000
Product Family
AFK

Other properties

Terminal Size [mm]
4.8
Core Material
CuFe
Plating Material
Ag
Sealable
Sealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
Min Temp (C)
-40
Max Temp (C)
+150

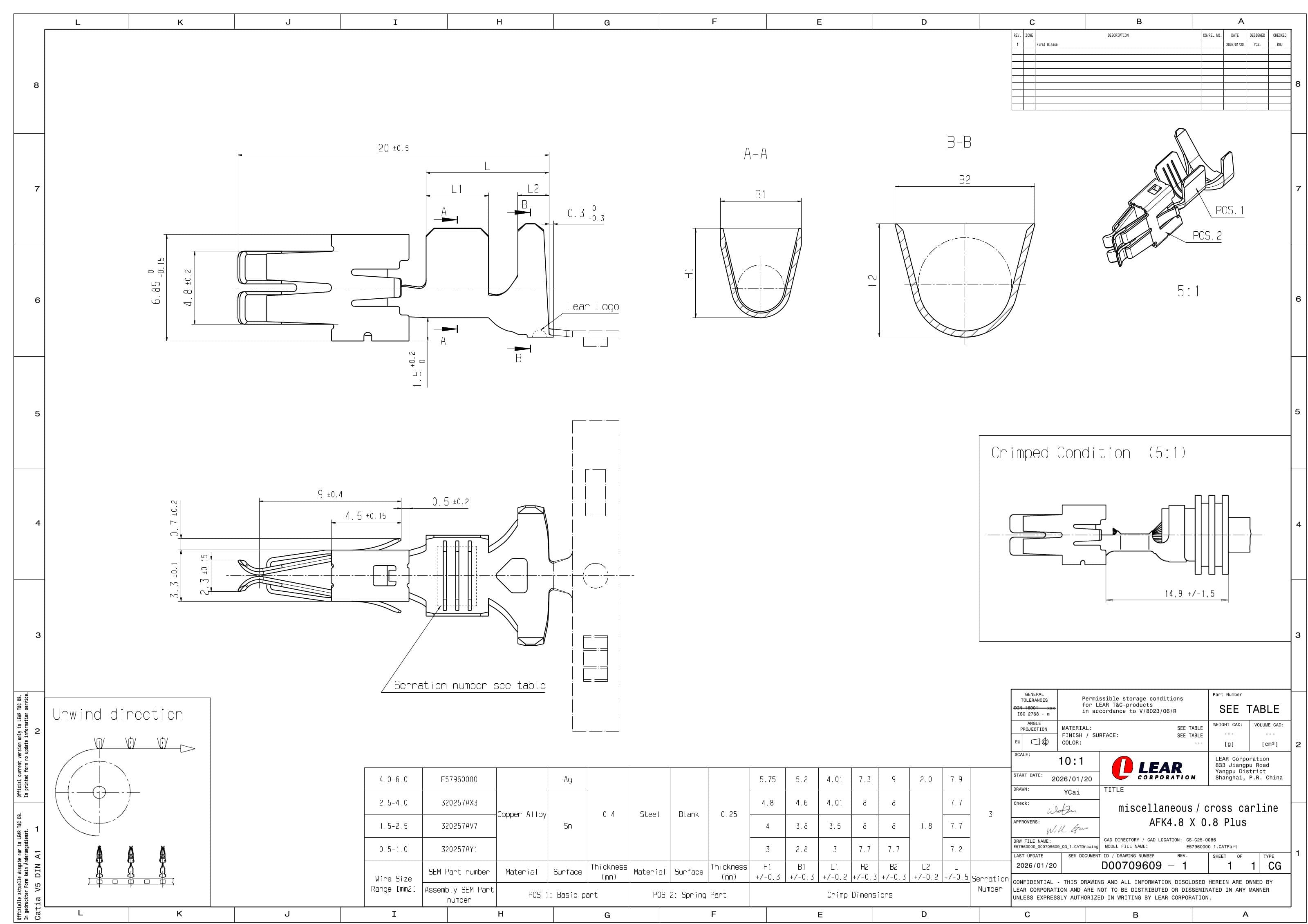

2D Drawing

2D Drawing E57960000

DOWNLOAD
AFK 4.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
AFK 4.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
320257AY1
Product Category:
TERMINALS
Legacy Part Number:
26679330186
Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 4.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
AFK 4.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
320257AV7
Product Category:
TERMINALS
Legacy Part Number:
26682330186
Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
AFK 4.8 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
AFK 4.8 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
320257AX3
Product Category:
TERMINALS
Legacy Part Number:
26684330186
Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
4way AFK 4.8 Receptacle Sealed Blue Connector, Code A
4way AFK 4.8 Receptacle Sealed Blue Connector, Code A
E57540400
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
4
Product Family
AFK
Terminal Size [mm]
4.8
Sealable
Sealed
4way AFK 4.8 Receptacle Sealed Black Connector, Code A
4way AFK 4.8 Receptacle Sealed Black Connector, Code A
E57623700
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
4
Product Family
AFK
Terminal Size [mm]
4.8
Sealable
Sealed

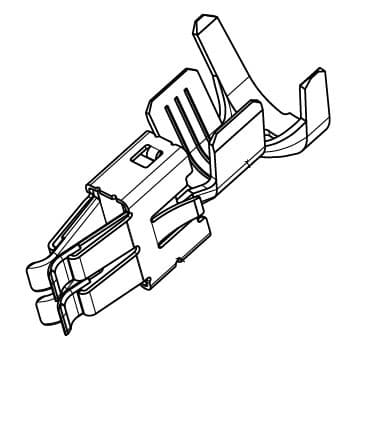

E57960000 - AFK 4.8 Receptacle Sealed Crimp Terminal, Ag, 4-6mm²

Part Number: E57960000

AFK 4.8 Receptacle Sealed Crimp Terminal, Ag, 4-6mm²

Product Specification

A sealed receptacle terminal belonging to the AFK product family, sized for 4.8 mm systems. Categorized within the Terminals product category, it is designed for crimp installation onto conductors in the 4–6 mm² cross-section range, with silver (Ag) plating on the contact surface.

Rated for an operating temperature range of −40 °C to +150 °C, making it suitable for demanding underhood and high-cycle thermal environments.

Part Number: E57960000.

This product requires other components for a fully functional assembly configuration:

Lear Connection Systems is offering other variants of this product:
