TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E57623900
- Product Family
- AFS
Other properties
- No. of cavities
- 4
- Terminal Type
- Tab
- Terminal Size [mm]
- 4.8
- Sealable
- Sealed
- Color
- BLACK
- Connector Application
- Inline, 48V
- Mechanical coding
- A
2D Drawing

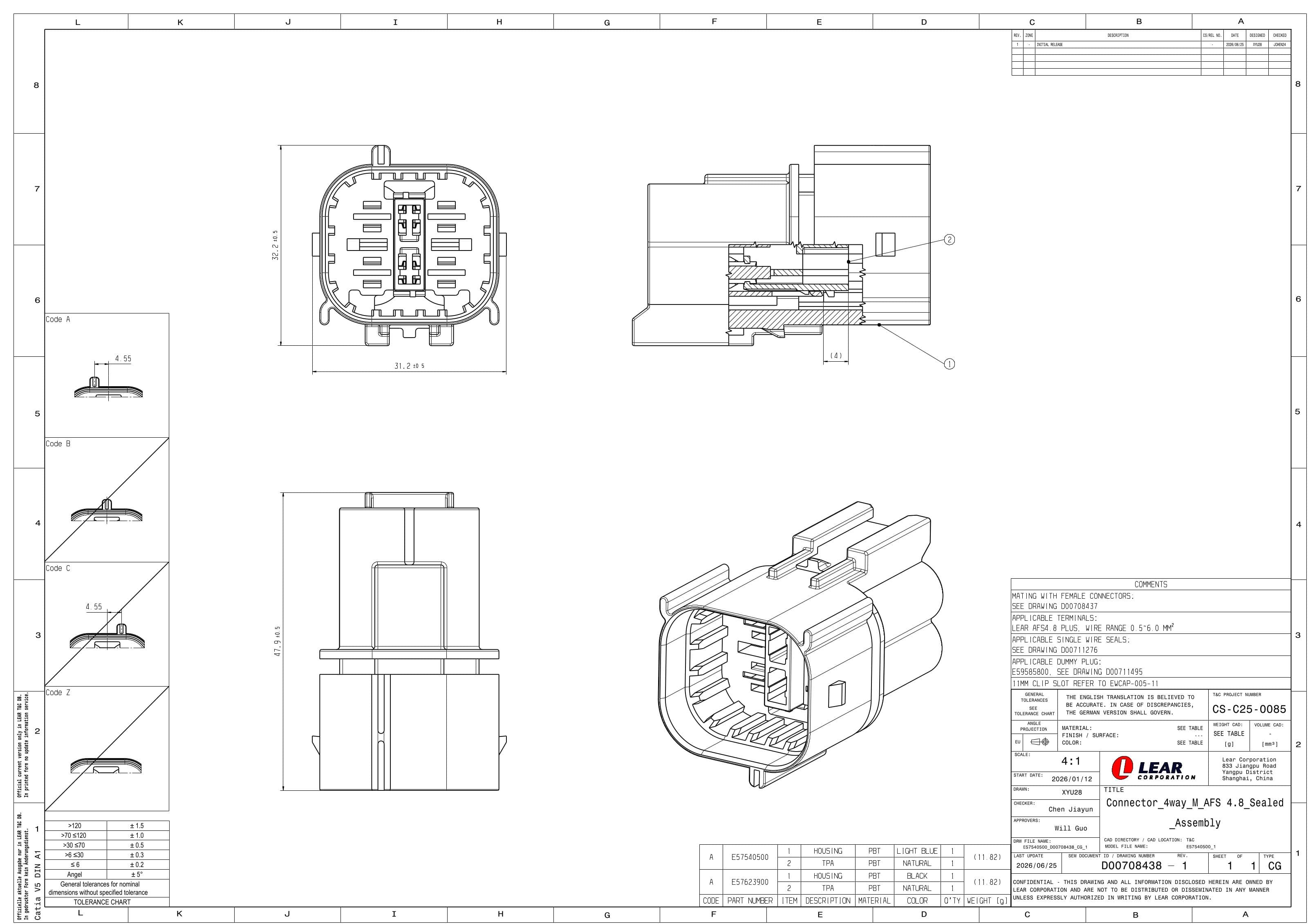

2D Drawing E57623900
4way AFK 4.8 Receptacle Sealed Blue Connector, Code A
E57540400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
4.8
Sealable
Sealed
4way AFK 4.8 Receptacle Sealed Black Connector, Code A
E57623700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
4.8
Sealable
Sealed
AFS Tab Sealed Crimp Terminal, Sn, 0.5-1mm²
3202636Q4
Product Category:
TERMINALSLegacy Part Number:
26687330185Terminal Size [mm]
–
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFS 4.8 Tab Sealed Crimp Terminal, Sn, 1.5-2.5mm²
3202636T5
Product Category:
TERMINALSLegacy Part Number:
26691330185Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
AFS 4.8 Tab Sealed Crimp Terminal, Sn, 2.5-4mm²
3202636U3
Product Category:
TERMINALSLegacy Part Number:
26693330185Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
AFS 4.8 Tab Sealed Crimp Terminal, Sn, 4-6mm²
3202636K7
Product Category:
TERMINALSLegacy Part Number:
26978306179Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
AFS 4.8 Tab Sealed Crimp Terminal, Ag, 4-6mm²
3202636L5
Product Category:
TERMINALSLegacy Part Number:
26978306710Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
E57623900 - 4way AFS 4.8 Tab Sealed Black Connector, Code A
Part Number: E57623900
Product Specification
This sealed, 4-cavity connector belongs to the AFS product family within the Connectors category, accommodating tab terminals at a 4.8 mm terminal size.
Primarily designed for inline applications in automotive vehicles.
Mechanical coding A provides a poka-yoke mating feature to prevent incorrect connector assembly.
The main connector part is molded in PBT with a dominant black color.
Part Number: E57623900.
This product requires other components for a fully functional assembly configuration:
- 4way AFK 4.8 Receptacle Sealed Blue Connector, Code A (E57540400)
- 4way AFK 4.8 Receptacle Sealed Black Connector, Code A (E57623700)
- AFS Tab Sealed Crimp Terminal, Sn, 0.5-1mm² (3202636Q4)
- AFS 4.8 Tab Sealed Crimp Terminal, Sn, 1.5-2.5mm² (3202636T5)
- AFS 4.8 Tab Sealed Crimp Terminal, Sn, 2.5-4mm² (3202636U3)
- AFS 4.8 Tab Sealed Crimp Terminal, Sn, 4-6mm² (3202636K7)
- AFS 4.8 Tab Sealed Crimp Terminal, Ag, 4-6mm² (3202636L5)
Lear Connection Systems is offering other variants of this product:
