TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E33083800
- Product Family
- COS, MAS, AFS
Other properties
- No. of cavities
- 41
- Terminal Type
- Tab
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- GRAY
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Seat to body
- Mechanical coding
- 2
- Remarks
- w/o shorting bar

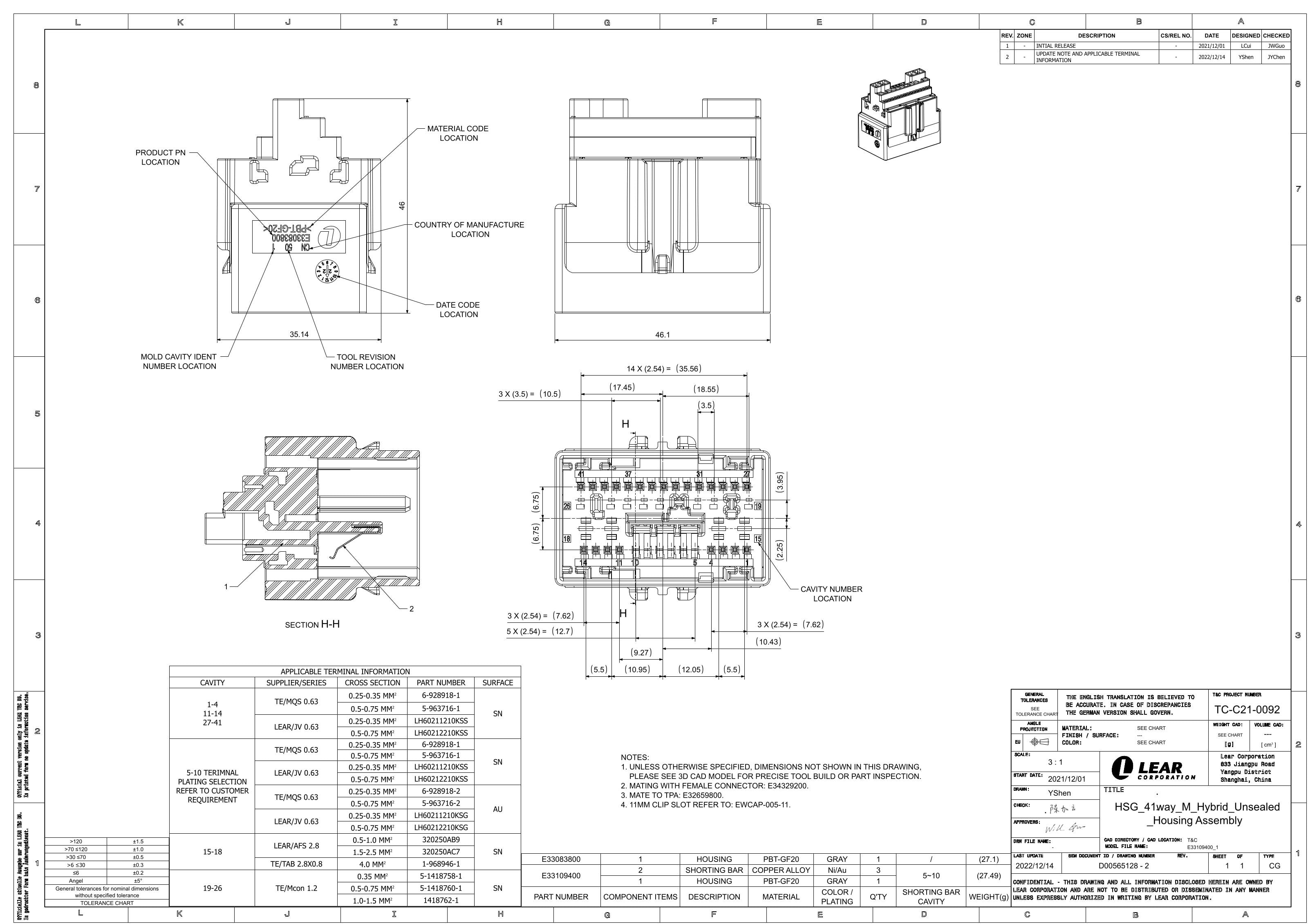

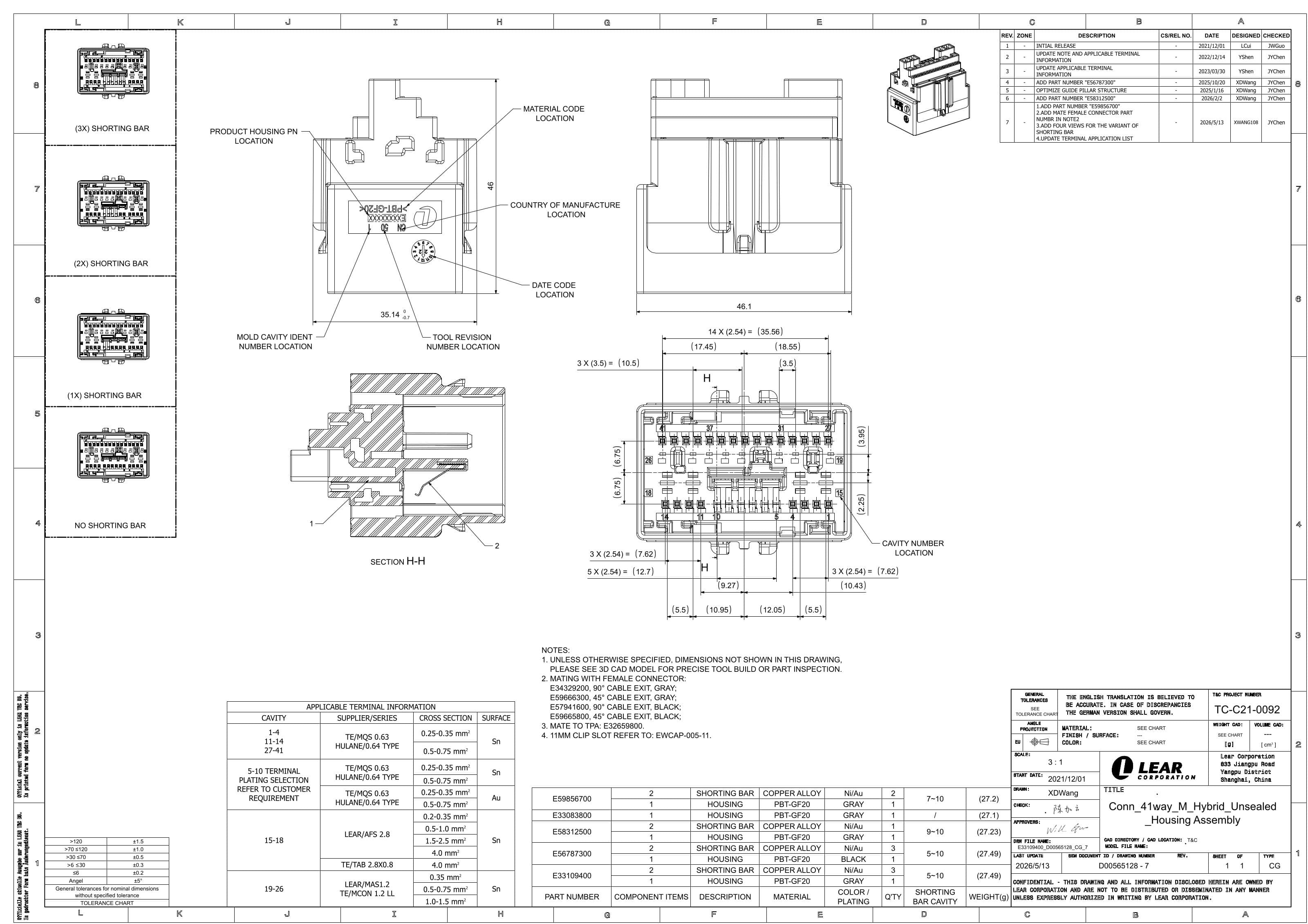

2D Drawing
2D Drawing E33083800
41way COS/MAS/AFS 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E56787300
Product Category:
CONNECTORSLegacy Part Number:
–Terminal Type
Receptacle
Color
BLACK
Connector Application
–
Product Type
–
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2
E33109400
Product Category:
CONNECTORSLegacy Part Number:
–Terminal Type
Tab
Color
GRAY
Connector Application
Inline, Seat to body
Product Type
Low Voltage (Std.12V)
41way COS/MAS/AFS 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E56787300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2
E33109400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Natural Connector
E32659800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector
E57941600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Gray Connector
E34329200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
320250AA1
Product Category:
TERMINALSLegacy Part Number:
26671330185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 0.5-1mm²
320250AB9
Product Category:
TERMINALSLegacy Part Number:
26659330185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
320250AC7
Product Category:
TERMINALSLegacy Part Number:
26657330185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 4mm²
E37019300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
4
COS 0.63 Tab Unsealed Crimp Terminal, Sn, 0.22-0.35mm²
E37600300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.35
COS 0.63 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E37600400
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E35505900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.35mm²
E35506000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E35506100
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 1-1.5mm²
E35506200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
1
Maximum Cable Cross section [mm²]
1.5
E33083800 - 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2
Part Number: E33083800
Product Specification
This unsealed connector accommodates 41 cavities and belongs to the COS, MAS, and AFS product families within the CONNECTORS category. It accepts tab terminals in three sizes — 0.63, 1.2, and 2.8 mm — supporting a range of circuit configurations within a single housing.
Primarily designed for inline and seat-to-body connections in automotive vehicles.
Mating integrity is ensured through mechanical coding 2, a poka-yoke feature that prevents mismatched connections. The connector is equipped with Terminal Position Assurance (TPA) to secure terminals in their seated positions.
The main connector part is molded in PBT GF with a dominant gray color. Operating temperature range is -40 to 125 °C.
Supplied without shorting bar.
Part Number: E33083800.
This product requires other components for a fully functional assembly configuration:
- 41way COS/MAS/AFS 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E56787300)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2 (E33109400)
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Natural Connector (E32659800)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Black Connector (E57941600)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Gray Connector (E34329200)
- AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (320250AA1)
- AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 0.5-1mm² (320250AB9)
- AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (320250AC7)
- AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 4mm² (E37019300)
- COS 0.63 Tab Unsealed Crimp Terminal, Sn, 0.22-0.35mm² (E37600300)
- COS 0.63 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E37600400)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E35505900)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.35mm² (E35506000)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E35506100)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 1-1.5mm² (E35506200)
