TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E56787300
- Product Family
- COS, MAS, AFS
Other properties
- No. of cavities
- 41
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63, 1.2, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Remarks
- with 3 shorting bar
2D Drawing

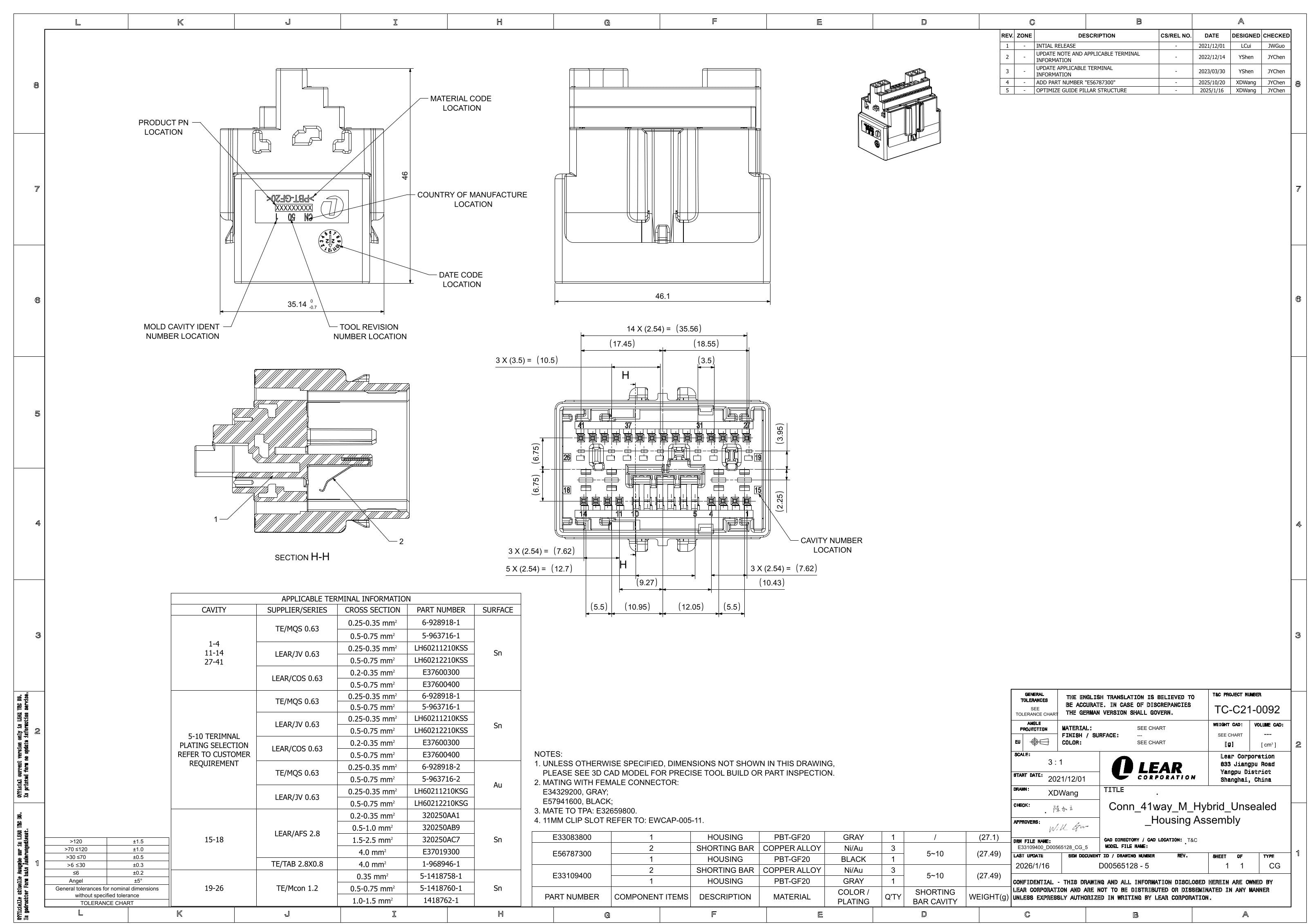

2D Drawing E56787300
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2
E33083800
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
COS, MAS, AFS
No. of cavities
41
Terminal Size [mm]
0.63, 1.2, 2.8
Terminal Type
Tab
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2
E33109400
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
COS, MAS, AFS
No. of cavities
41
Terminal Size [mm]
0.63, 1.2, 2.8
Terminal Type
Tab
4way MAK 1.2 Receptacle Sealed Black Connector with CPA, Code A
E30205000
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
MAK
No. of cavities
4
Terminal Size [mm]
1.2
Terminal Type
Receptacle
4way MAK 1.2 Receptacle Sealed Blue Connector with CPA, Code C
E30205400
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
MAK
No. of cavities
4
Terminal Size [mm]
1.2
Terminal Type
Receptacle
4way MAK 1.2 Receptacle Sealed Natural Connector with CPA, Code B
E30205200
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
MAK
No. of cavities
4
Terminal Size [mm]
1.2
Terminal Type
Receptacle
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code D
E30205500
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
MAK
No. of cavities
4
Terminal Size [mm]
1.2
Terminal Type
Receptacle
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code F
E30205600
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
MAK
No. of cavities
4
Terminal Size [mm]
1.2
Terminal Type
Receptacle
4way MAK 1.2 Receptacle Sealed Connector with CPA, Code G
E30206000
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
MAK
No. of cavities
4
Terminal Size [mm]
1.2
Terminal Type
Receptacle
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Black Connector, Code A
E35208300
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
MAK
No. of cavities
4
Terminal Size [mm]
1.2
Terminal Type
Receptacle
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Blue Connector, Code C
E35208400
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
MAK
No. of cavities
4
Terminal Size [mm]
1.2
Terminal Type
Receptacle
.PNG&w=3840&q=75)
4way MAK 1.2 Receptacle Sealed Natural Connector, Code B
E40819900
Product Category:
CONNECTORSLegacy Part Number:
–Product Family
MAK
No. of cavities
4
Terminal Size [mm]
1.2
Terminal Type
Receptacle
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2
E33083800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Gray Connector
E34329200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
41
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.13-0.22mm²
E35505900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.13
Maximum Cable Cross section [mm²]
0.22
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.35mm²
E35506000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E35506100
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 1-1.5mm²
E35506200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
1
Maximum Cable Cross section [mm²]
1.5
E56787300 - 41way COS/MAS/AFS 0.63/1.2/2.8 Receptacle Unsealed Black Connector
Part Number: E56787300
Product Specification
This connector provides 41 cavities and is configured as an unsealed receptacle, belonging to the Connectors product category within the COS, MAS, and AFS product families.
It accommodates three terminal sizes — 0.63 mm, 1.2 mm, and 2.8 mm — supporting mixed-circuit layouts within a single housing. The connector is supplied with Terminal Position Assurance (TPA) to secure terminals in their seated positions and includes 3 shorting bars.
The main connector part is molded in PBT GF with a dominant black color.
Part Number: E56787300.
This product requires other components for a fully functional assembly configuration:
- 41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2 (E33083800)
- 41way MSK/MAK 0.63/1.2/2.8 Receptacle Unsealed Gray Connector (E34329200)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.13-0.22mm² (E35505900)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.35mm² (E35506000)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E35506100)
- MAS 1.2 Tab Unsealed Crimp Terminal, Sn, 1-1.5mm² (E35506200)
