TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E33122000
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 1.5
- Core Material
- CuNiSi
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.2
- Maximum Cable Cross section [mm²]
- 0.35
- Min Temp (C)
- -40
- Max Temp (C)
- +130

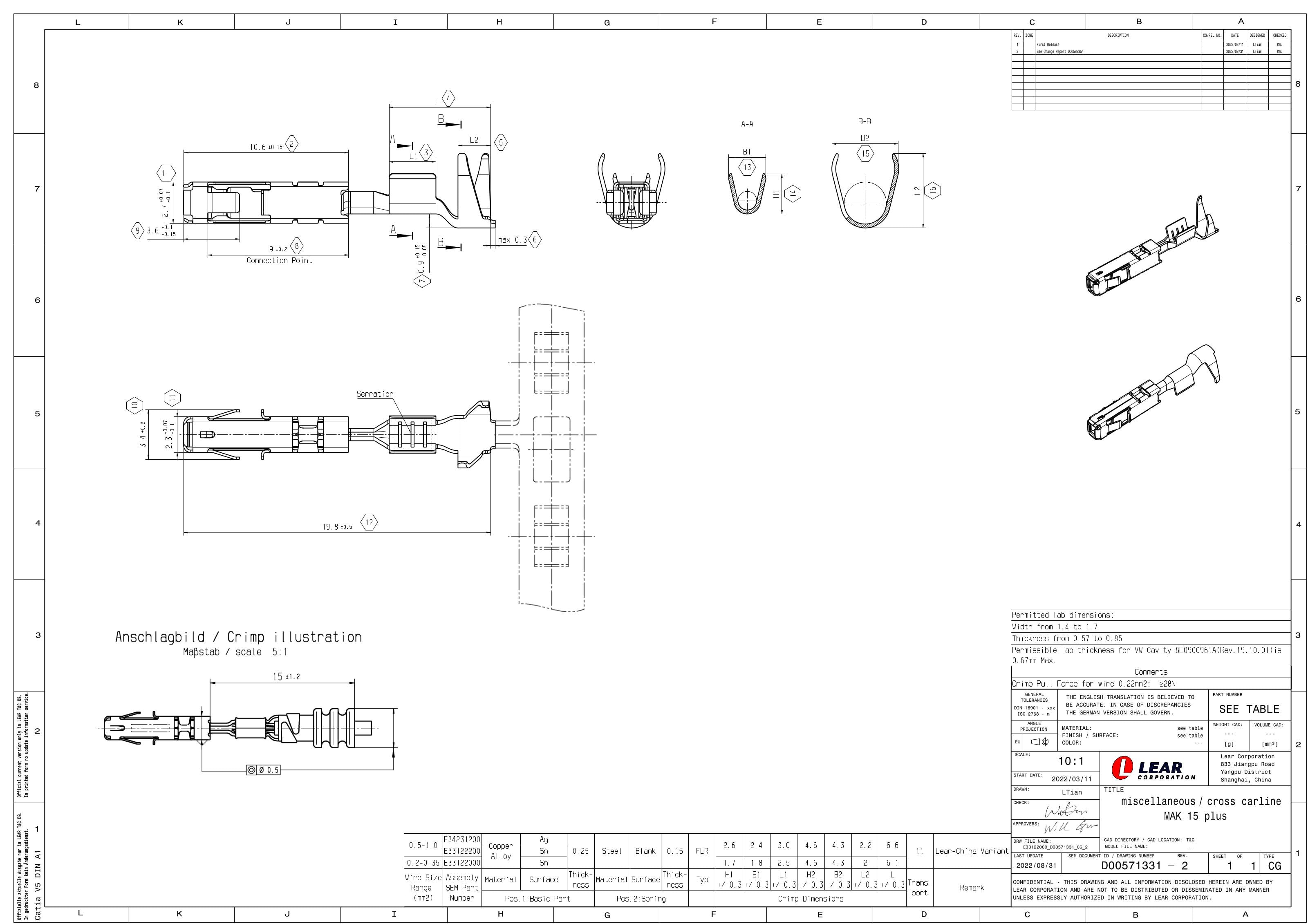

2D Drawing
2D Drawing E33122000
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
E53852200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E33122200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E53852300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm²
E34231200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm²
E53858900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1

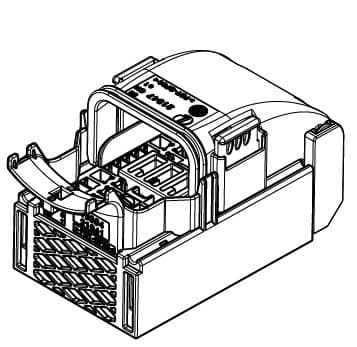

46way MAK 1.5/2.8/6.3 Receptacle Unsealed Brown Connector
E30809600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Unsealed
46way MAK 1.5/2.8/6.3 Receptacle Unsealed Blue Connector
E30809800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Unsealed
38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector with CPA
E02108600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
38
Product Family
MAK
Terminal Size [mm]
1.5, 2.8, 6.3
Sealable
Sealed
22way MSK/MAK 0.63/1.5/2.8 Receptacle Unsealed Black Connector, Code A
E33901700
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
22
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.5, 2.8
Sealable
Unsealed
22way MSK/MAK 0.63/1.5/2.8 Receptacle Unsealed Gray Connector, Code B
E33901800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
22
Product Family
MSK, MAK
Terminal Size [mm]
0.63, 1.5, 2.8
Sealable
Unsealed
E33122000 - MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
Part Number: E33122000
Product Specification
A sealed receptacle terminal belonging to the MAK product family, sized at 1.5 mm. Categorized under terminals, it is designed for crimp termination and carries a sealed configuration for reliable environmental protection.
The terminal operates across a temperature range of −40 to +130 °C, supporting performance in demanding automotive thermal environments.
Part Number: E33122000.
This product requires other components for a fully functional assembly configuration:
- 46way MAK 1.5/2.8/6.3 Receptacle Unsealed Brown Connector (E30809600)
- 46way MAK 1.5/2.8/6.3 Receptacle Unsealed Blue Connector (E30809800)
- 38way MAK 1.5/2.8/6.3 Receptacle Sealed Black Connector with CPA (E02108600)
- 22way MSK/MAK 0.63/1.5/2.8 Receptacle Unsealed Black Connector, Code A (E33901700)
- 22way MSK/MAK 0.63/1.5/2.8 Receptacle Unsealed Gray Connector, Code B (E33901800)
Lear Connection Systems is offering other variants of this product:
- MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm² (E53852200)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E33122200)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E53852300)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm² (E34231200)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm² (E53858900)
