TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E33901700
- Product Family
- MSK, MAK
Other properties
- No. of cavities
- 22
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 0.63, 1.5, 2.8
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 105
- Connector Application
- Inline, Door to body, Roof to body
- Mechanical coding
- A
2D Drawing

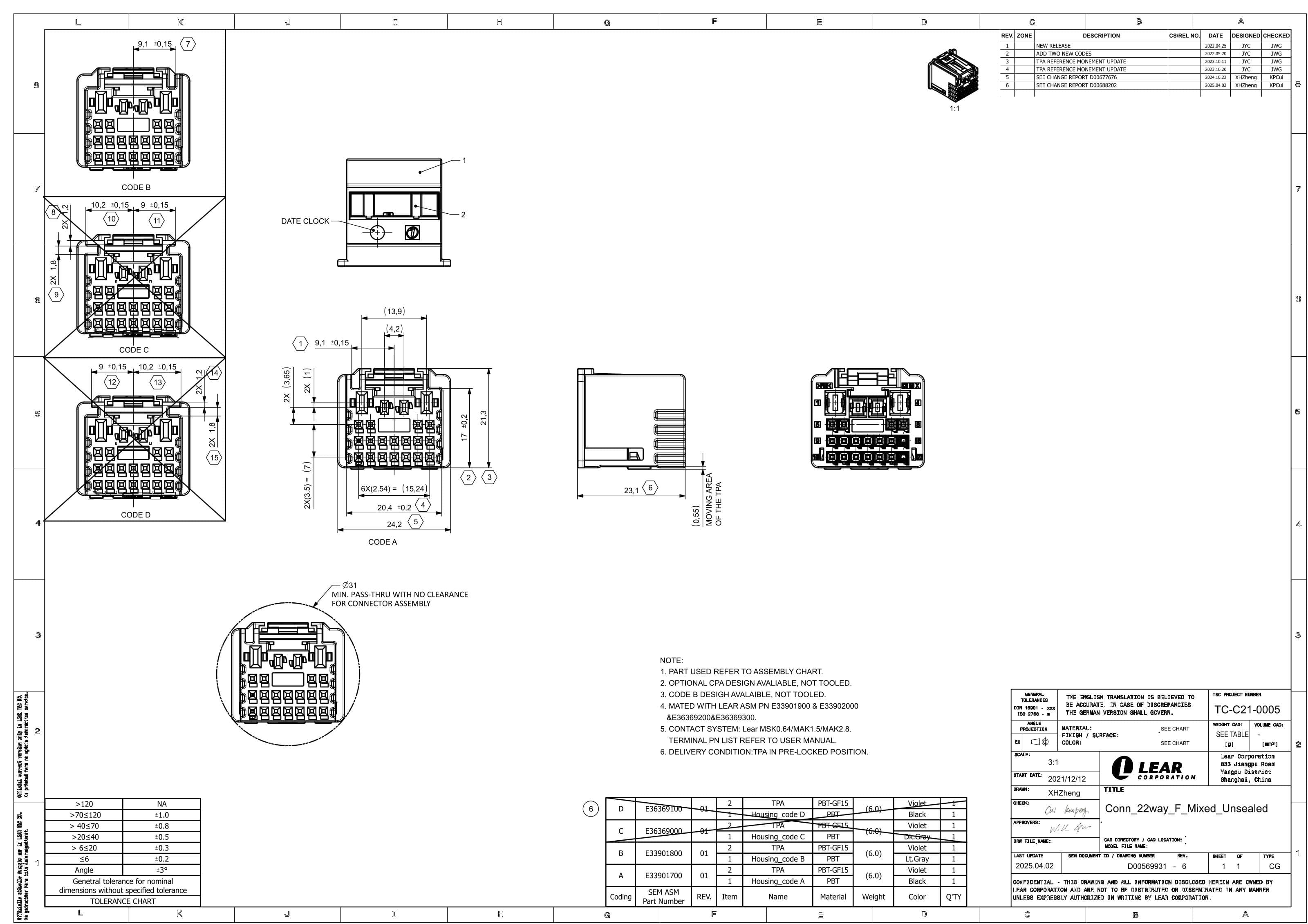

2D Drawing E33901700
22way COS/AFS 0.63/1.5/2.8 Tab Unsealed Black Connector, Code A
E33901900
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
22
Product Family
COS, AFS
Terminal Size [mm]
0.63, 1.5, 2.8
Sealable
Unsealed
MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm²
E34231200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
E33122000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E33122200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 1.5mm²
E13277500
Product Category:
TERMINALSLegacy Part Number:
29084000001Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
1.5
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E31841000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E53848000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E33116800
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E53848100
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 4mm²
E13276000
Product Category:
TERMINALSLegacy Part Number:
29086000001Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
4
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
E30813200
Product Category:
TERMINALSLegacy Part Number:
28272000002Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
E30813300
Product Category:
TERMINALSLegacy Part Number:
28273000002Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm²
E26349400
Product Category:
TERMINALSLegacy Part Number:
28034000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E26349300
Product Category:
TERMINALSLegacy Part Number:
28038000001Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E33901700 - 22way MSK/MAK 0.63/1.5/2.8 Receptacle Unsealed Black Connector, Code A
Part Number: E33901700
Product Specification
This unsealed receptacle connector offers 22 cavities and belongs to the MSK/MAK product family within the CONNECTORS category. It accommodates mixed terminal sizes of 0.63, 1.5, and 2.8 mm, making it suitable for multi-gauge wiring configurations.
Primarily designed for inline, door-to-body, and roof-to-body connections in automotive vehicles.
Mechanical coding A provides a poka-yoke mating feature to prevent incorrect connector pairing. The connector is equipped with Terminal Position Assurance (TPA) to secure terminals in their seated positions.
The main connector part is molded in PBT with a dominant black color. The operating temperature range spans -40 to 105 °C.
Part Number: E33901700, compatible with: 6098-7119.
This product requires other components for a fully functional assembly configuration:
- 22way COS/AFS 0.63/1.5/2.8 Tab Unsealed Black Connector, Code A (E33901900)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm² (E34231200)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm² (E33122000)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E33122200)
- MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 1.5mm² (E13277500)
- MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (E31841000)
- MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.2-0.35mm² (E53848000)
- MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E33116800)
- MAK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E53848100)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 4mm² (E13276000)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm² (E30813200)
- MAK 2.8 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (E30813300)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.22-0.5mm² (E26349400)
- MSK 0.63 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm² (E26349300)
Lear Connection Systems is offering other variants of this product:
