TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E53852200
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 1.5
- Core Material
- CuNiSi
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.2
- Maximum Cable Cross section [mm²]
- 0.35
- Min Temp (C)
- -40
- Max Temp (C)
- +130

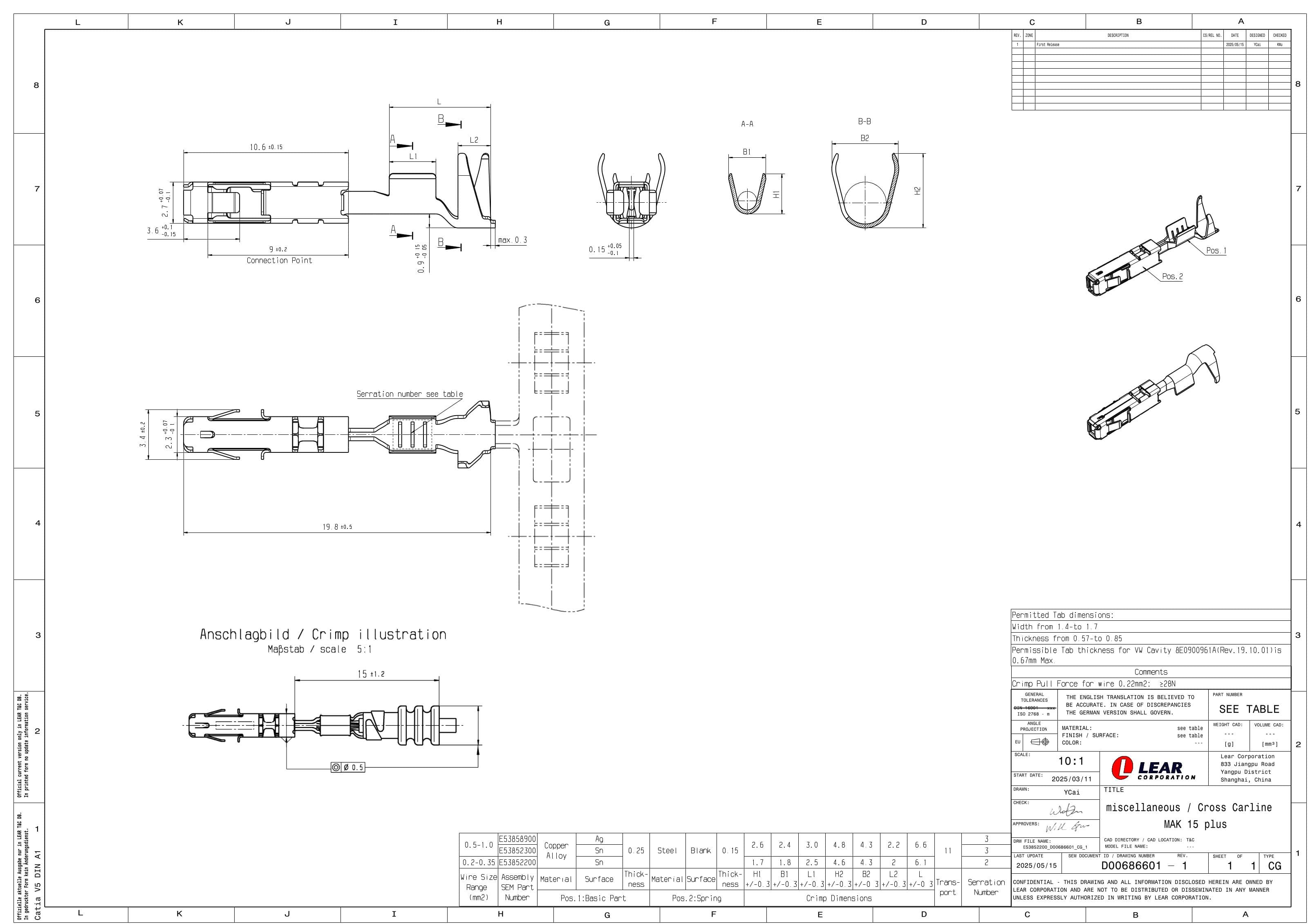

2D Drawing
2D Drawing E53852200
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
E33122000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E33122200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E53852300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm²
E34231200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm²
E53858900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
E53852200 - MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
Part Number: E53852200
Product Specification
A sealed receptacle terminal belonging to the MAK product family, sized at 1.5 mm. Categorized under terminals, it is designed for crimp termination with a tin (Sn) plating and is suitable for conductor cross-sections of 0.2–0.35 mm².
The terminal operates across a temperature range of −40 °C to +130 °C, supporting reliable performance in demanding automotive thermal environments.
Part Number: E53852200.
This product requires other components for a fully functional assembly configuration:
Lear Connection Systems is offering other variants of this product:
- MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm² (E33122000)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E33122200)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E53852300)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm² (E34231200)
- MAK 1.5 Receptacle Sealed Crimp Terminal, Ag, 0.5-1mm² (E53858900)
