TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E45062400
- Product Family
- HC
Other properties
- Terminal Size [mm]
- 14.5
- Application
- High Current
- Core Material
- Cu
- Plating Material
- Ag
- Sealable
- Sealed
- Connection Technology
- Ultrasonic Weld
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 35
- Maximum Cable Cross section [mm²]
- 50
- Min Temp (C)
- -40
- Max Temp (C)
- +170

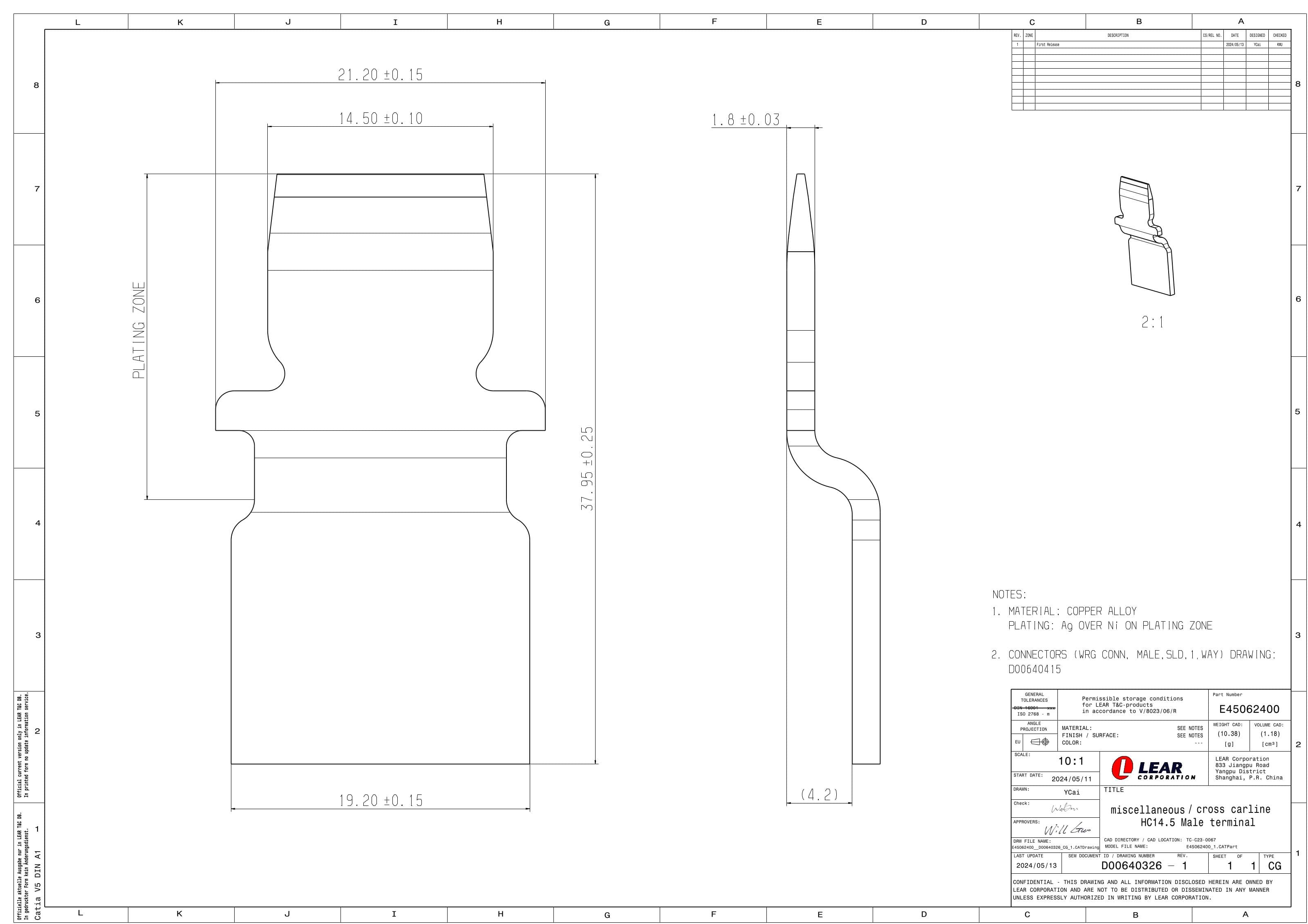

2D Drawing
2D Drawing E45062400
1way HC 14.5 Receptacle Unsealed Black Connector with CPA, Code A
E45039000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Unsealed
1way HC 14.5 Tab Unsealed Black Connector, Code A
E04335602
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Unsealed
1way HC 14.5 Tab Unsealed Black Connector, Code A
E45039200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Unsealed
E45062400 - HC 14.5 Tab Sealed Ultrasonic Terminal, Ag, 35-50mm²
Part Number: E45062400
Product Specification
A sealed tab terminal belonging to the HC product family, sized at 14.5 mm. It falls within the Terminals product category.
Rated for an operating temperature range of −40 °C to +170 °C.
Part Number: E45062400.
This product requires other components for a fully functional assembly configuration:
Lear Connection Systems is offering other variants of this product:
