TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E45039000
- Product Family
- HC
Other properties
- No. of cavities
- 1
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 14.5
- Sealable
- Unsealed
- CPA
- With CPA
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- +125
- Connector Application
- Inline, High Current, Power Connections
- Mechanical coding
- A

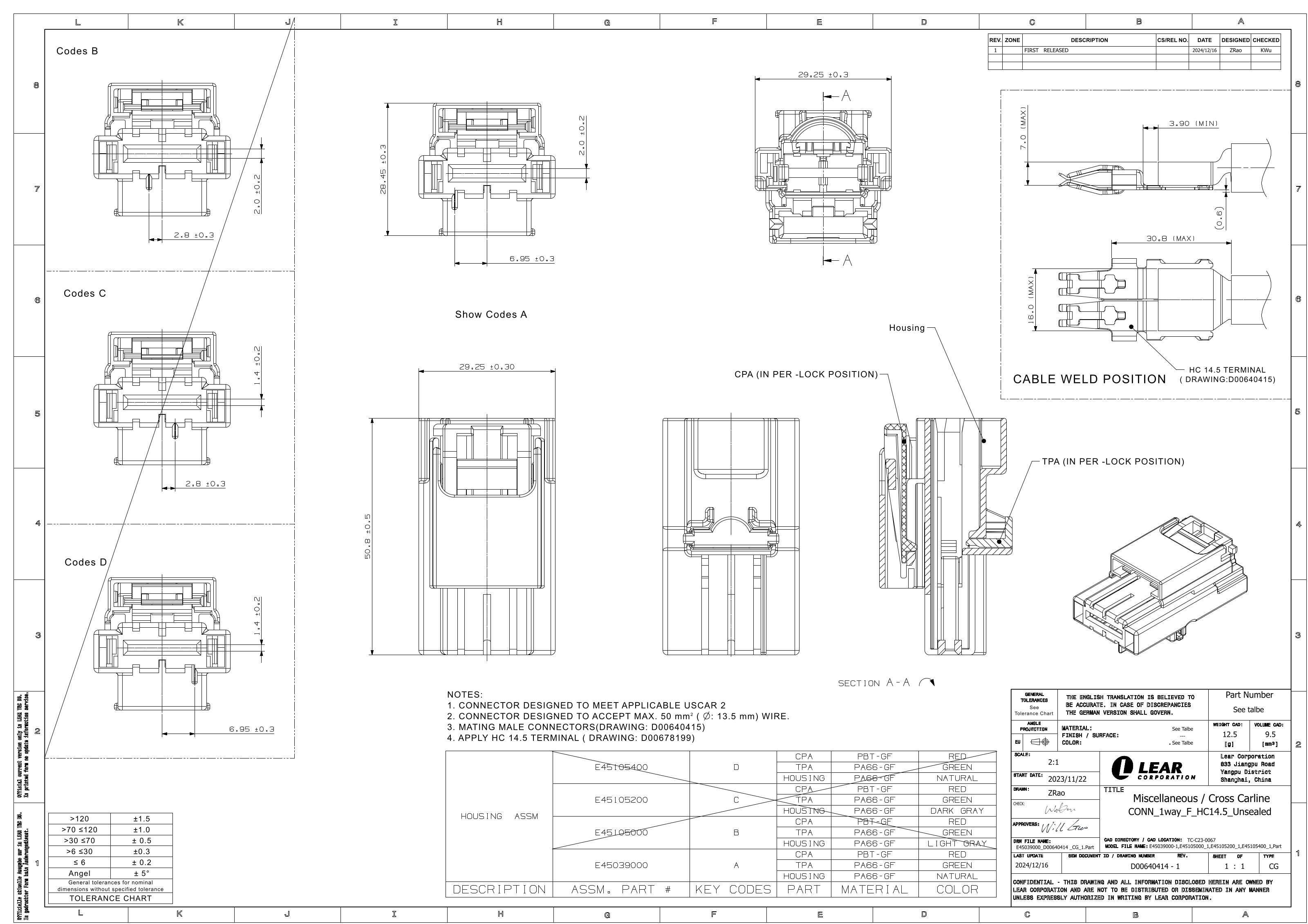

2D Drawing
2D Drawing E45039000
1way HC 14.5 Tab Unsealed Black Connector, Code A
E45039200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Unsealed
HC 14.5 Tab Sealed Ultrasonic Terminal, Ag, 35-50mm²
E45062400
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
14.5
Minimum Cable Cross section [mm²]
35
Maximum Cable Cross section [mm²]
50
E45039000 - 1way HC 14.5 Receptacle Unsealed Black Connector with CPA, Code A
Part Number: E45039000
Product Specification
This single-cavity connector belongs to the HC product family within the Connectors category, accommodating one circuit via a 14.5 mm receptacle terminal. The connector is unsealed.
Primarily designed for inline applications in automotive vehicles.
Mating integrity is supported by a Code A mechanical coding feature for poka-yoke alignment, along with both Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) to secure the connection at both the connector and terminal levels.
The main connector part is molded in PA66 GF with a dominant black color.
Part Number: E45039000.
This product requires other components for a fully functional assembly configuration:
