TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E45039200
- Product Family
- HC
Other properties
- No. of cavities
- 1
- Terminal Type
- Tab
- Terminal Size [mm]
- 14.5
- Sealable
- Unsealed
- TPA
- With TPA
- Color
- BLACK
- Mechanical coding
- A
2D Drawing

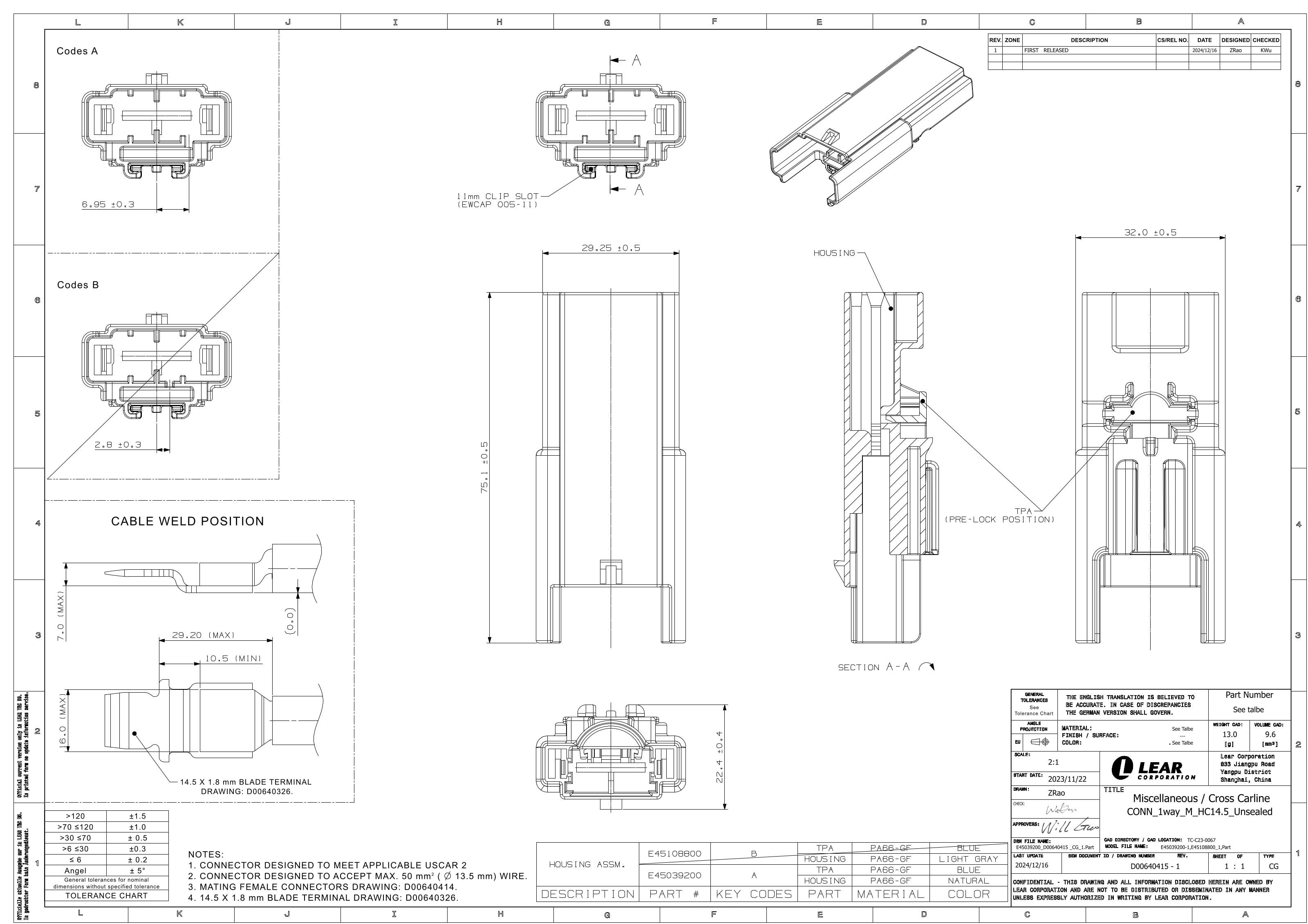

2D Drawing E45039200
1way HC 14.5 Receptacle Unsealed Black Connector with CPA, Code A
E04315302
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Unsealed
1way HC 14.5 Receptacle Unsealed Black Connector with CPA, Code A
E45039000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
1
Product Family
HC
Terminal Size [mm]
14.5
Sealable
Unsealed

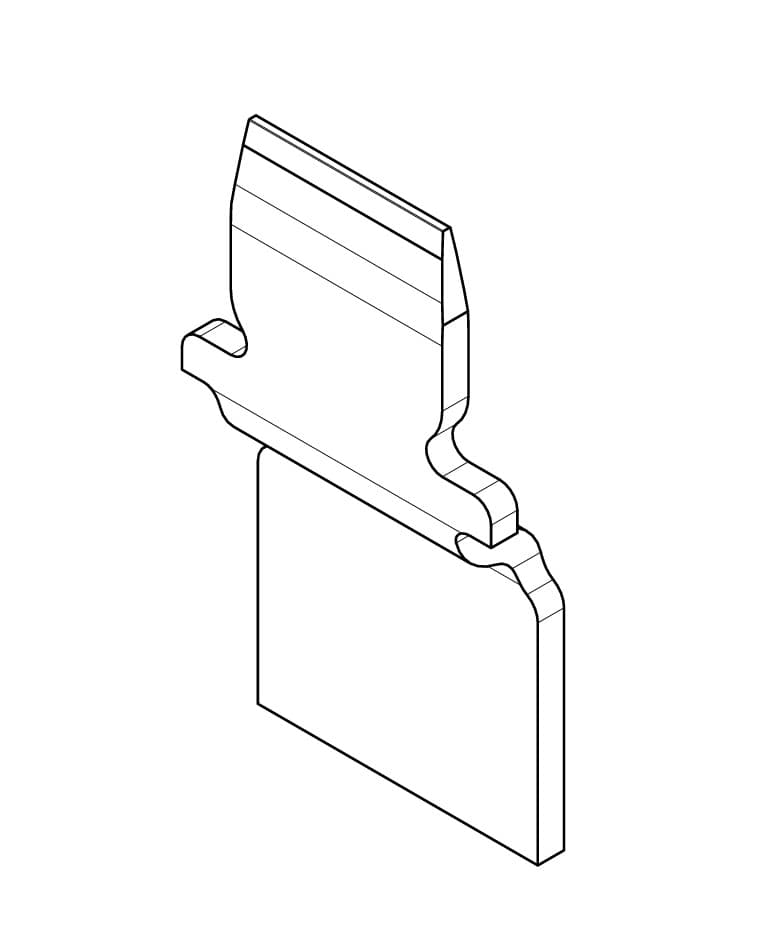

HC 14.5 Tab Unsealed Ultrasonic Terminal, Ag, 35-50mm²
E04310700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
14.5
Minimum Cable Cross section [mm²]
35
Maximum Cable Cross section [mm²]
50

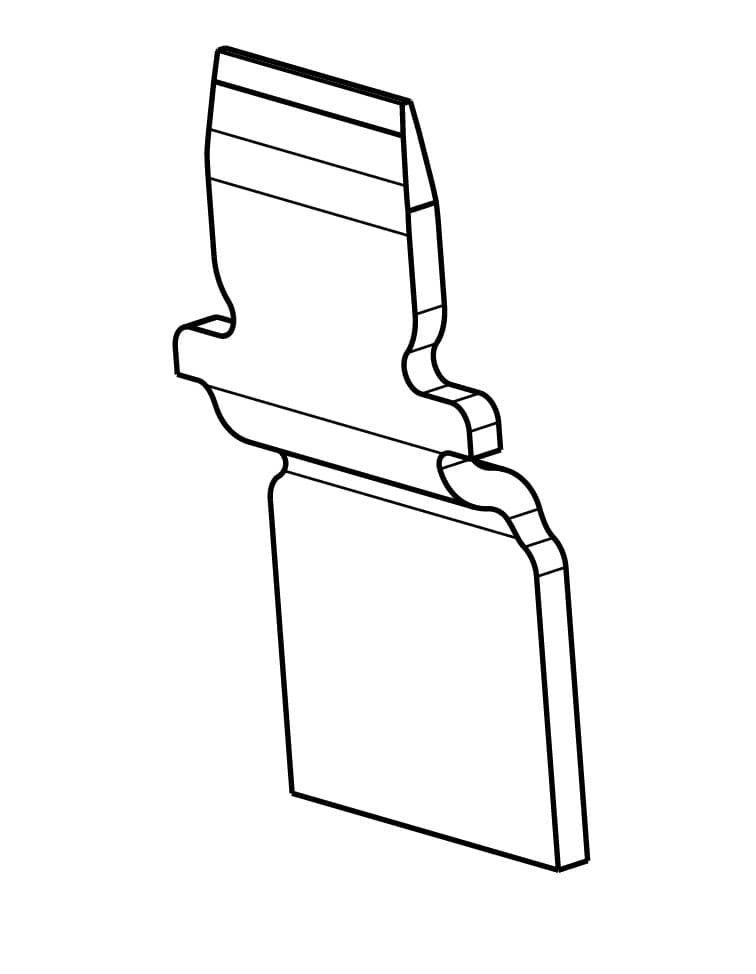

HC 14.5 Tab Sealed Ultrasonic Terminal, Ag, 35-50mm²
E45062400
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
14.5
Minimum Cable Cross section [mm²]
35
Maximum Cable Cross section [mm²]
50
E45039200 - 1way HC 14.5 Tab Unsealed Black Connector, Code A
Part Number: E45039200
Product Specification
This connector belongs to the HC product family within the Connectors category, configured as a 1-way (single-circuit) unsealed design with a 14.5 mm tab terminal type.
Mechanical coding A provides a poka-yoke mating feature to prevent incorrect connector pairing. Terminal Position Assurance (TPA) is included to secure terminals reliably within the housing.
The main connector part is molded in PA66 GF with a dominant black color.
Part Number: E45039200.
This product requires other components for a fully functional assembly configuration:
