TECHNICAL INFORMATION

Identification

Product Category
SEALS
Part Number
E34059902

Other properties

Seal type
Wire Seal Cap
Nominal cavity hole diameter [mm]
25.2
Cable diam min [mm]
14
Cable diam max [mm]
14.4
Remarks
Validated with FLR2G 70mm2 cable

2D Drawing

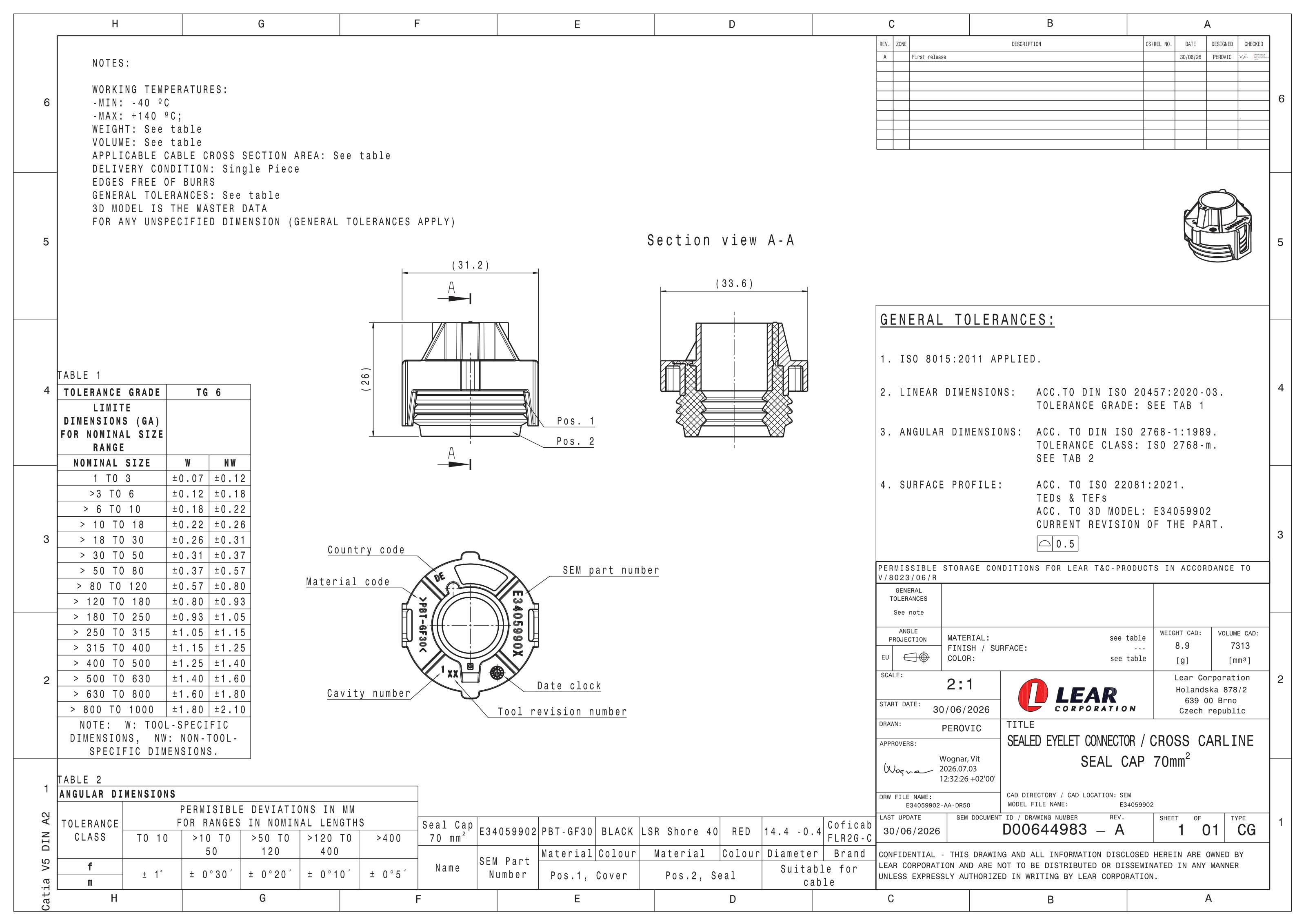

2D Drawing E34059902

DOWNLOAD
1way Eyelet Sealed Black Connector with CPA, Code A
1way Eyelet Sealed Black Connector with CPA, Code A
E34059403
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code B
1way Eyelet Sealed Black Connector with CPA, Code B
E34059503
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code C
1way Eyelet Sealed Black Connector with CPA, Code C
E34059603
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code D
1way Eyelet Sealed Black Connector with CPA, Code D
E34059703
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code Z
1way Eyelet Sealed Black Connector with CPA, Code Z
E34059803
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
Ultrasonic Weld Straight Ring Terminal, M8, 70mm²
Ultrasonic Weld Straight Ring Terminal, M8, 70mm²
E33935202
Product Category:
EYELETS
Legacy Part Number:
–
Minimum Cable Cross section [mm²]
70
Maximum Cable Cross section [mm²]
70
Thread Diameter [mm]
M8
48V Sealed Eyelet Connector

48V Sealed Eyelet Connector

Lear’s Sealed Eyelet ready for 48V connections e.g. OBC, HV Inverter and 48V Motor / Generator units. Ruggedized system for large cable applications. Ideal solution for 12 to 48V requiring sealed ring connections.

E34059902 - Wire Seal Cap, Cavity Hole Diameter 25.2mm

Part Number: E34059902

Wire Seal Cap, Cavity Hole Diameter 25.2mm

Product Specification

A wire sealing cap that delivers environmental protection at the cable entry point of an occupied connector cavity. Its two-component (2K) construction pairs a VMQ sealing element with a PBT-GF30 rigid plastic component, combining effective sealing performance with enhanced cable support. The integrated rigid element reinforces strain relief and cable retention, particularly suited to larger wire cross-sections.

Designed for a nominal cavity hole diameter of 25.2 mm, it accepts cable insulation diameters from 14 mm to 14.4 mm.

Validated with FLR2G 70 mm² cable.

Part Number: E34059902.

This product requires other components for a fully functional assembly configuration:

CONTACT US
