TECHNICAL INFORMATION

Identification

Product Category
CONNECTORS
Part Number
E34059403

Other properties

No. of cavities
1
Terminal Type
Eyelet
Sealable
Sealed
CPA
With CPA
Color
BLACK
Min Temp (C)
-40
Max Temp (C)
140
Connector Application
48V
Mechanical coding
A
Remarks
Eyelet hole diamer 8.5mm - matching M8 stud size. Mating cable cross sectional area is 70mm2. Contact us to confirm availability of this variant

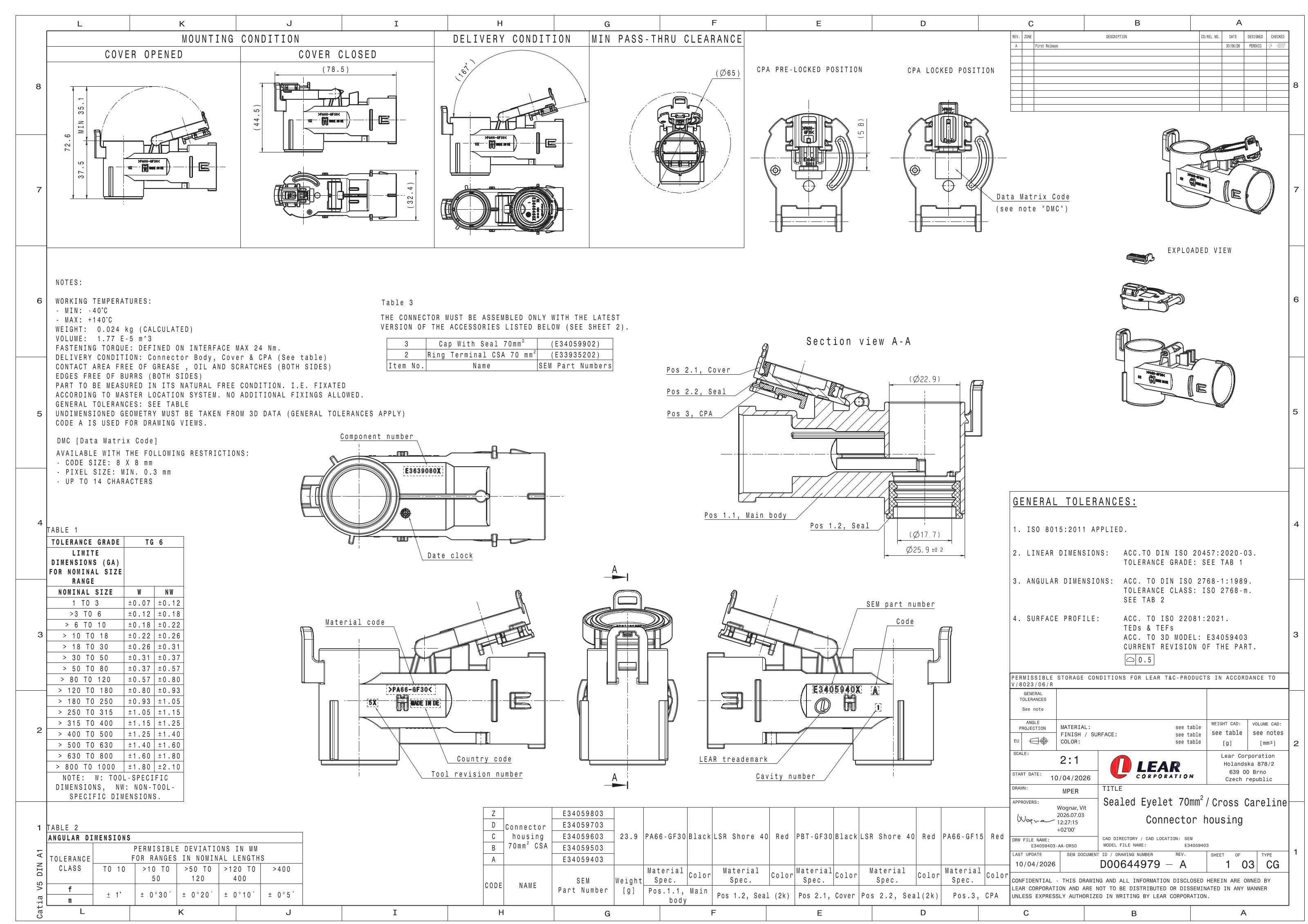

2D Drawing

2D Drawing E34059403

DOWNLOAD

3D PDF

3D PDF E34059403

DOWNLOAD

3D Cad

3D Cad E34059403

DOWNLOAD
1way Eyelet Sealed Black Connector with CPA, Code B
1way Eyelet Sealed Black Connector with CPA, Code B
E34059503
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code C
1way Eyelet Sealed Black Connector with CPA, Code C
E34059603
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code D
1way Eyelet Sealed Black Connector with CPA, Code D
E34059703
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code Z
1way Eyelet Sealed Black Connector with CPA, Code Z
E34059803
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
SEALED EYELET 70CSA
SEALED EYELET 70CSA
E33935202
Product Category:
EYELETS
Legacy Part Number:
–
Minimum Cable Cross section [mm²]
70
Maximum Cable Cross section [mm²]
70
Thread Diameter [mm]
M8

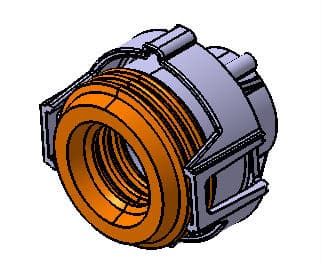

SEALED CAP 70CSA
SEALED CAP 70CSA
E34059902
Product Category:
SEALS
Legacy Part Number:
–
Seal type
Wire Seal Cap
Cable diam min [mm]
14
Cable diam max [mm]
14.4

Loading...

E34059403 - 1way Eyelet Sealed Black Connector with CPA, Code A

Part Number: E34059403

Click to see 3D model

1way Eyelet Sealed Black Connector with CPA, Code A

Product Specification

A single-cavity sealed connector fitted with an eyelet terminal. The sealed construction ensures reliable environmental protection for the connection.

Primarily designed for 48V applications in automotive vehicles. The eyelet features an 8.5 mm hole diameter, matching an M8 stud size, with a mating cable cross-sectional area of 70 mm².

Mechanical coding A provides a poka-yoke mating feature to prevent incorrect assembly, and the connector is equipped with a Connector Position Assurance (CPA) device to verify full mating engagement.

The main connector part is molded in PA66 GF with a dominant black color. The connector operates across a temperature range of −40 °C to 140 °C.

Please contact us to confirm availability of this variant.

Part Number: E34059403.

This product requires other components for a fully functional assembly configuration:
