TECHNICAL INFORMATION

Identification

Product Category
EYELETS
Part Number
E33935202

Other properties

Connection Technology
Ultrasonic Weld
Shape
Straight
Thread Diameter [mm]
M8
Special feature for connection area
Round Hole
No. of wire connections
1
Minimum Cable Cross section [mm²]
70
Maximum Cable Cross section [mm²]
70
Ring diameter inside [mm]
8.5
Core Material
Cu
Plating Material
Ag
Max Temp (C)
150

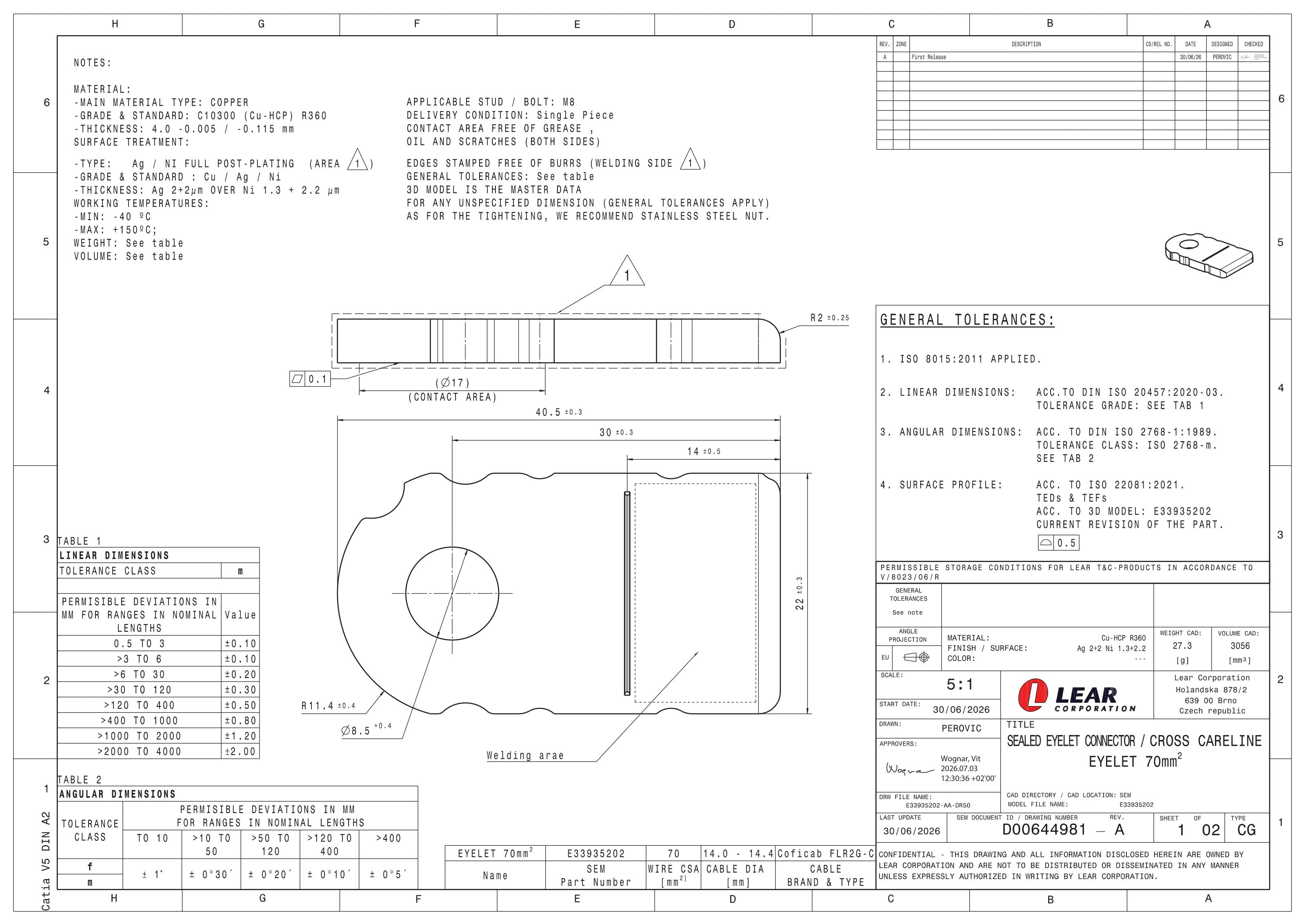

2D Drawing

2D Drawing E33935202

DOWNLOAD
1way Eyelet Sealed Black Connector with CPA, Code A
1way Eyelet Sealed Black Connector with CPA, Code A
E34059403
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code B
1way Eyelet Sealed Black Connector with CPA, Code B
E34059503
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code C
1way Eyelet Sealed Black Connector with CPA, Code C
E34059603
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code D
1way Eyelet Sealed Black Connector with CPA, Code D
E34059703
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code Z
1way Eyelet Sealed Black Connector with CPA, Code Z
E34059803
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
Wire Seal Cap, Cavity Hole Diameter 25.2mm
Wire Seal Cap, Cavity Hole Diameter 25.2mm
E34059902
Product Category:
SEALS
Legacy Part Number:
–
Seal type
Wire Seal Cap
Cable diam min [mm]
14
Cable diam max [mm]
14.4
48V Sealed Eyelet Connector

48V Sealed Eyelet Connector

Lear’s Sealed Eyelet ready for 48V connections e.g. OBC, HV Inverter and 48V Motor / Generator units. Ruggedized system for large cable applications. Ideal solution for 12 to 48V requiring sealed ring connections.

E33935202 - Ultrasonic Weld Straight Ring Terminal, M8, 70mm²

Part Number: E33935202

Ultrasonic Weld Straight Ring Terminal, M8, 70mm²

Product Specification

The crimp area uses ultrasonic welding to attach a single conductor, accepting a fixed cross-section of 70 mm².

The contact area is straight and designed for an M8 stud, with an inside ring diameter of 8.5 mm and a round hole configuration.

The terminal is constructed from a copper (Cu) core with a silver (Ag) plating.

Maximum continuous current rating is 262 A.

Part Number: E33935202.

This product requires other components for a fully functional assembly configuration:

CONTACT US
