TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E37600300
Product Family
COS

Other properties

Terminal Size [mm]
0.63
Application
Signal
Core Material
CuZn
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Tab
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.35
Min Temp (C)
-40
Max Temp (C)
+130

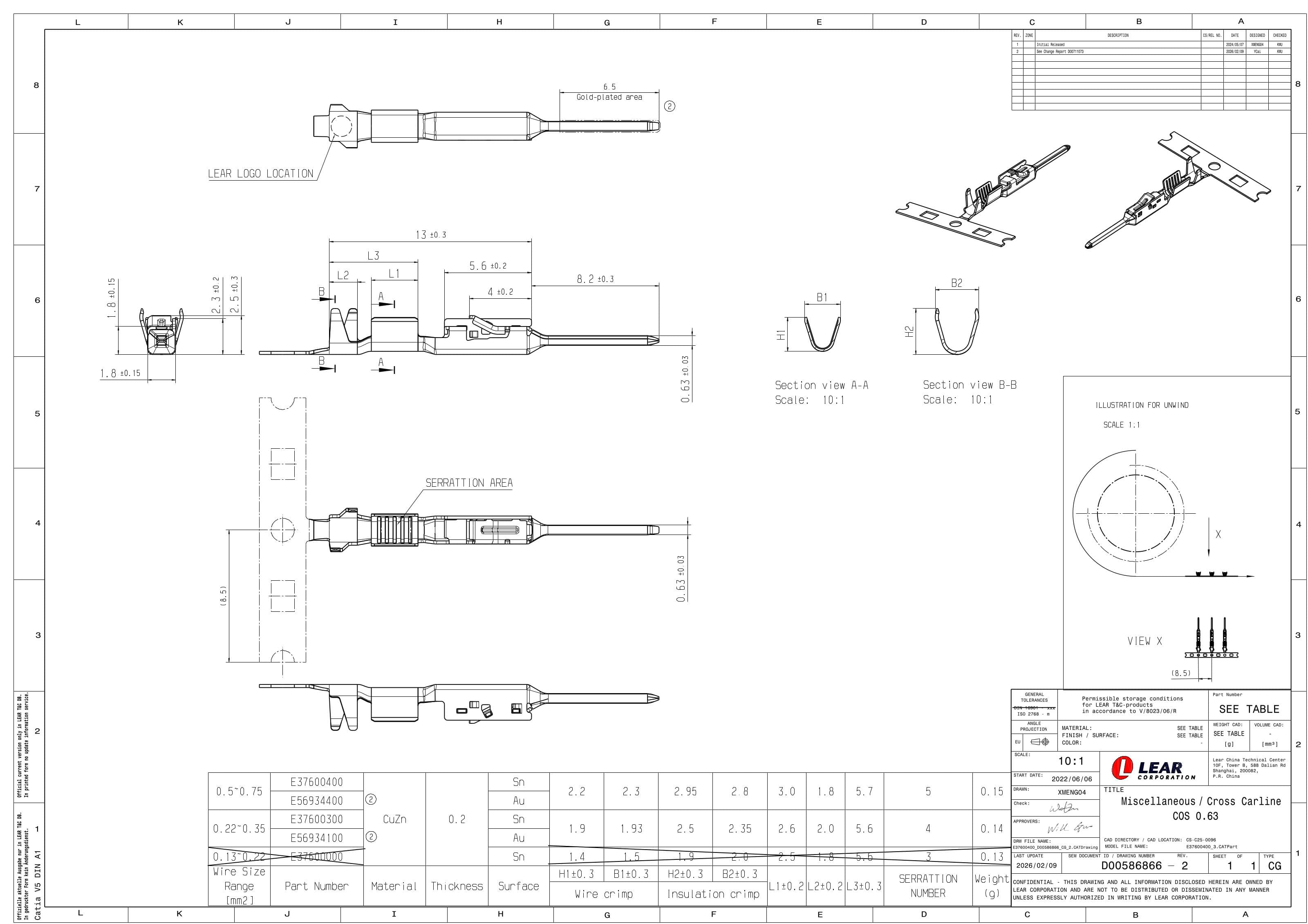

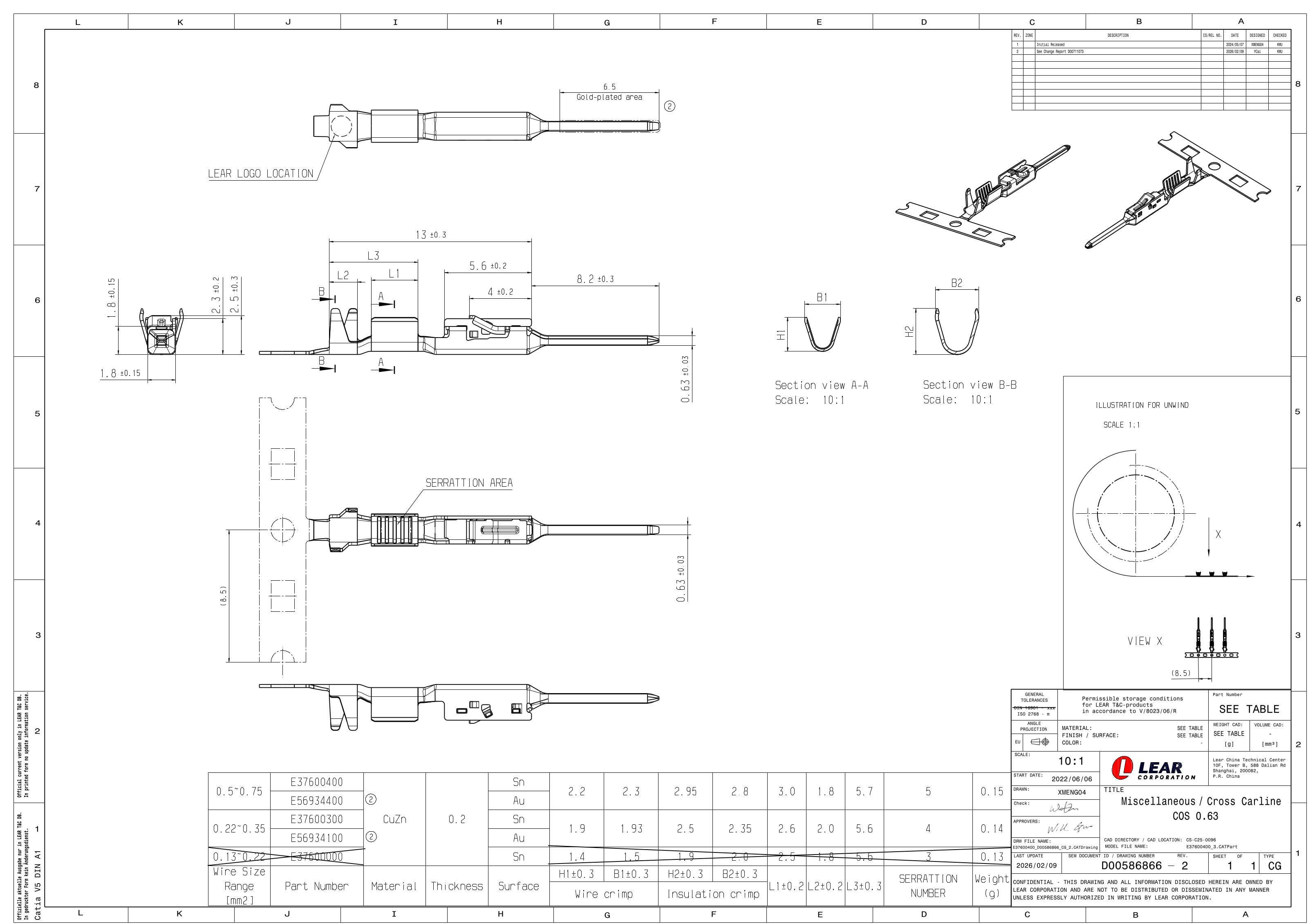

2D Drawing

2D Drawing E37600300

DOWNLOAD
COS 0.63 Tab Unsealed Crimp Terminal, Au, 0.22-0.35mm²
COS 0.63 Tab Unsealed Crimp Terminal, Au, 0.22-0.35mm²
E56934100
Product Category:
TERMINALS
Legacy Part Number:
–
Plating Material
Au
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.35
Max Temp (C)
+150
COS 0.63 Tab Unsealed Crimp Terminal, Au, 0.5-0.75mm²
COS 0.63 Tab Unsealed Crimp Terminal, Au, 0.5-0.75mm²
E56934400
Product Category:
TERMINALS
Legacy Part Number:
–
Plating Material
Au
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
Max Temp (C)
+150
COS 0.63 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
COS 0.63 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E37600400
Product Category:
TERMINALS
Legacy Part Number:
–
Plating Material
Sn
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
Max Temp (C)
+130
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2
41way COS/MAS/AFS 0.63/1.2/2.8 Tab Unsealed Gray Connector, Code 2
E33083800
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
41
Product Family
COS, MAS, AFS
Terminal Size [mm]
0.63, 1.2, 2.8
Sealable
Unsealed
2way MSK 0.63 Tab Unsealed Black Connector
2way MSK 0.63 Tab Unsealed Black Connector
E53024100
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
2
Product Family
MSK
Terminal Size [mm]
0.63
Sealable
Unsealed

E37600300 - COS 0.63 Tab Unsealed Crimp Terminal, Sn, 0.22-0.35mm²

Part Number: E37600300

COS 0.63 Tab Unsealed Crimp Terminal, Sn, 0.22-0.35mm²

Product Specification

An unsealed tab terminal belonging to the COS product family, categorized under terminals. Designed around a 0.63 mm terminal size, it is suited for applications where a sealed interface is not required.

Rated for an operating temperature range of −40 to +130 °C, it is built to perform reliably across the thermal demands typical of automotive environments.

Part Number: E37600300.

This product requires other components for a fully functional assembly configuration:
