TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 320257AX3
- Legacy Part Number
- 26684330186
- Product Family
- AFK
Other properties
- Terminal Size [mm]
- 4.8
- Core Material
- Cu
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 2.5
- Maximum Cable Cross section [mm²]
- 4
- Min Temp (C)
- -40
- Max Temp (C)
- +130
AFK 4.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
320257AV7
Product Category:
TERMINALSLegacy Part Number:
26682330186Core Material
Cu
Plating Material
Sn
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
Max Temp (C)
+130
AFK 4.8 Receptacle Sealed Crimp Terminal, Ag, 4-6mm²
E57960000
Product Category:
TERMINALSLegacy Part Number:
–Core Material
CuFe
Plating Material
Ag
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
Max Temp (C)
+150
AFK 4.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
320257AY1
Product Category:
TERMINALSLegacy Part Number:
26679330186Core Material
CuFe
Plating Material
Sn
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
Max Temp (C)
+130
Loading...

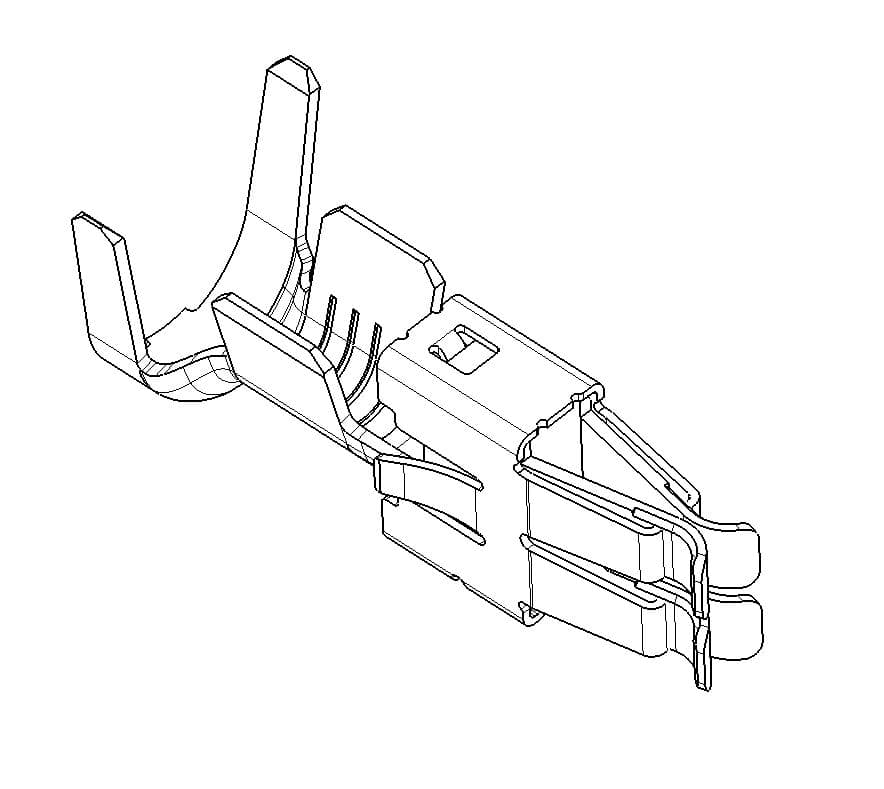

320257AX3 - AFK 4.8 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
Part Number: 320257AX3
Click to see 3D model
Product Specification
Previously cataloged under part number 26684330186.
Lear's AFK Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. Its high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. Two locking latches ensure secure locking in cavity.
lts compact design, low mating efforts and good terminal retention is ideal for high density connectors.
Part Number: 320257AX3, compatible with: 9289661, 9690441, 19643341, 9289662, 9690441.
Lear Connection Systems is offering other variants of this product:
