TECHNICAL INFORMATION
Identification
- Product Category
- SEALS
- Part Number
- E00020638
- Legacy Part Number
- 16697627626
Other properties
- Seal type
- Single Wire Seal
- Nominal cavity hole diameter [mm]
- 8.2
- Cable diam min [mm]
- 2.7
- Cable diam max [mm]
- 3.7
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector with CPA
E14999600
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25434200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
Loading...

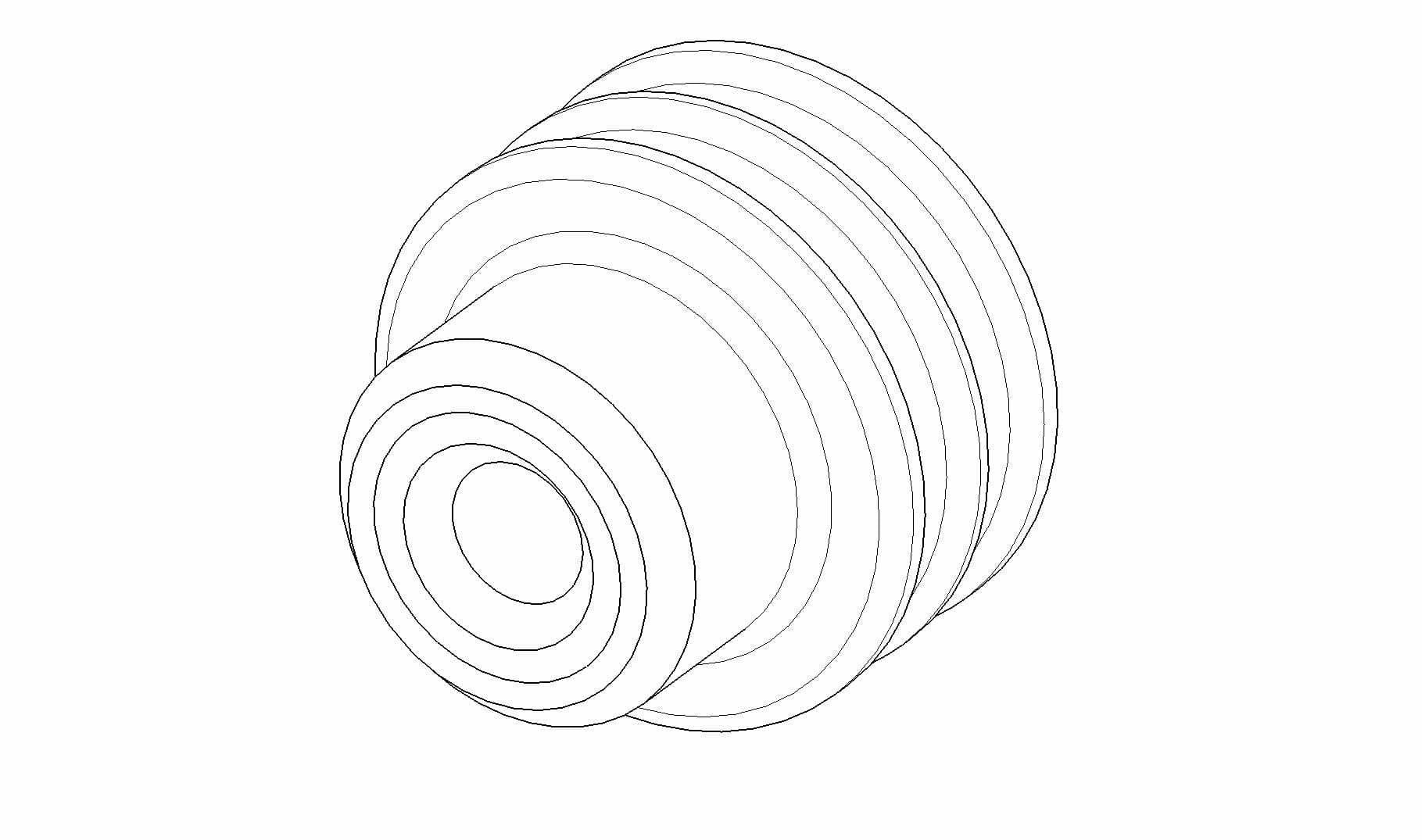

E00020638 - Single Wire Seal, Cavity Hole Diameter 8.2mm
Part Number: E00020638
Click to see 3D model
Product Specification
Previously cataloged under part number 16697627626.
A single wire seal that provides environmental protection at the cable entry point of an occupied connector cavity. Engineered to form a reliable seal around the wire, it helps prevent water and contaminant ingress while maintaining connector performance. Manufactured from VMQ silicone, it is designed to fit a connector cavity with a nominal hole diameter of 8.2 mm and accepts cable insulation diameters from 2.7 mm to 3.7 mm.
Part Number: E00020638.
This product requires other components for a fully functional assembly configuration:
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector with CPA (E14999600)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25434200)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25435200)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25435300)
- 46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector (E25435400)
