TECHNICAL INFORMATION

Identification

Product Category
SEALS
Part Number
E33840102

Other properties

Seal type
Wire Seal Cap
Nominal cavity hole diameter [mm]
22.3
Cable diam min [mm]
11.8
Cable diam max [mm]
12.2
Remarks
Validated with FLR2G 50mm2 cable

2D Drawing

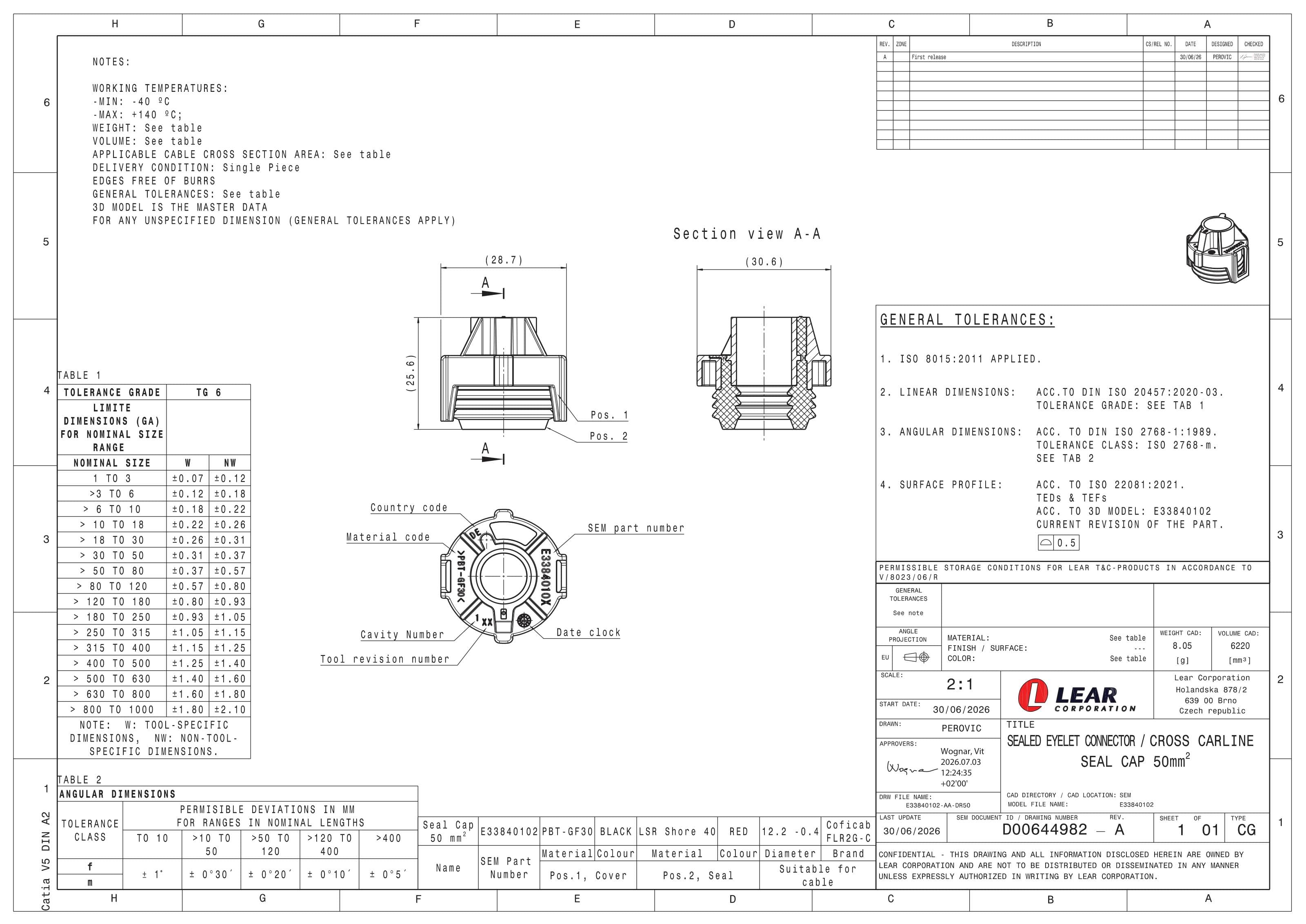

2D Drawing E33840102

DOWNLOAD
1way Eyelet Sealed Black Connector with CPA, Code A
1way Eyelet Sealed Black Connector with CPA, Code A
E34058903
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code B
1way Eyelet Sealed Black Connector with CPA, Code B
E34059003
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code C
1way Eyelet Sealed Black Connector with CPA, Code C
E34059103
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code D
1way Eyelet Sealed Black Connector with CPA, Code D
E34059203
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code Z
1way Eyelet Sealed Black Connector with CPA, Code Z
E34059303
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
Ultrasonic Weld Straight Ring Terminal, M8, 50mm²
Ultrasonic Weld Straight Ring Terminal, M8, 50mm²
E33840002
Product Category:
EYELETS
Legacy Part Number:
–
Minimum Cable Cross section [mm²]
50
Maximum Cable Cross section [mm²]
50
Thread Diameter [mm]
M8
48V Sealed Eyelet Connector

48V Sealed Eyelet Connector

Lear’s Sealed Eyelet ready for 48V connections e.g. OBC, HV Inverter and 48V Motor / Generator units. Ruggedized system for large cable applications. Ideal solution for 12 to 48V requiring sealed ring connections.

E33840102 - Wire Seal Cap, Cavity Hole Diameter 22.3mm

Part Number: E33840102

Wire Seal Cap, Cavity Hole Diameter 22.3mm

Product Specification

A wire sealing cap that provides environmental protection at the cable entry point of an occupied connector cavity. Its two-component (2K) design combines effective sealing performance with enhanced cable support. The integrated rigid plastic element reinforces strain relief and cable retention, particularly for larger wire cross-sections.

Constructed from VMQ and PBT-GF30, it is sized for a nominal cavity hole diameter of 22.3 mm and accepts cable insulation diameters from 11.8 mm to 12.2 mm.

Validated with FLR2G 50 mm² cable.

Part Number: E33840102.

This product requires other components for a fully functional assembly configuration:
