TECHNICAL INFORMATION

Identification

Product Category
CONNECTORS
Part Number
E34059103

Other properties

No. of cavities
1
Terminal Type
Eyelet
Sealable
Sealed
CPA
With CPA
Color
BLACK
Min Temp (C)
-40
Max Temp (C)
140
Connector Application
48V
Mechanical coding
C
Remarks
Eyelet hole diamer 8.5mm - matching M8 stud size. Mating cable cross sectional area is 50mm2.

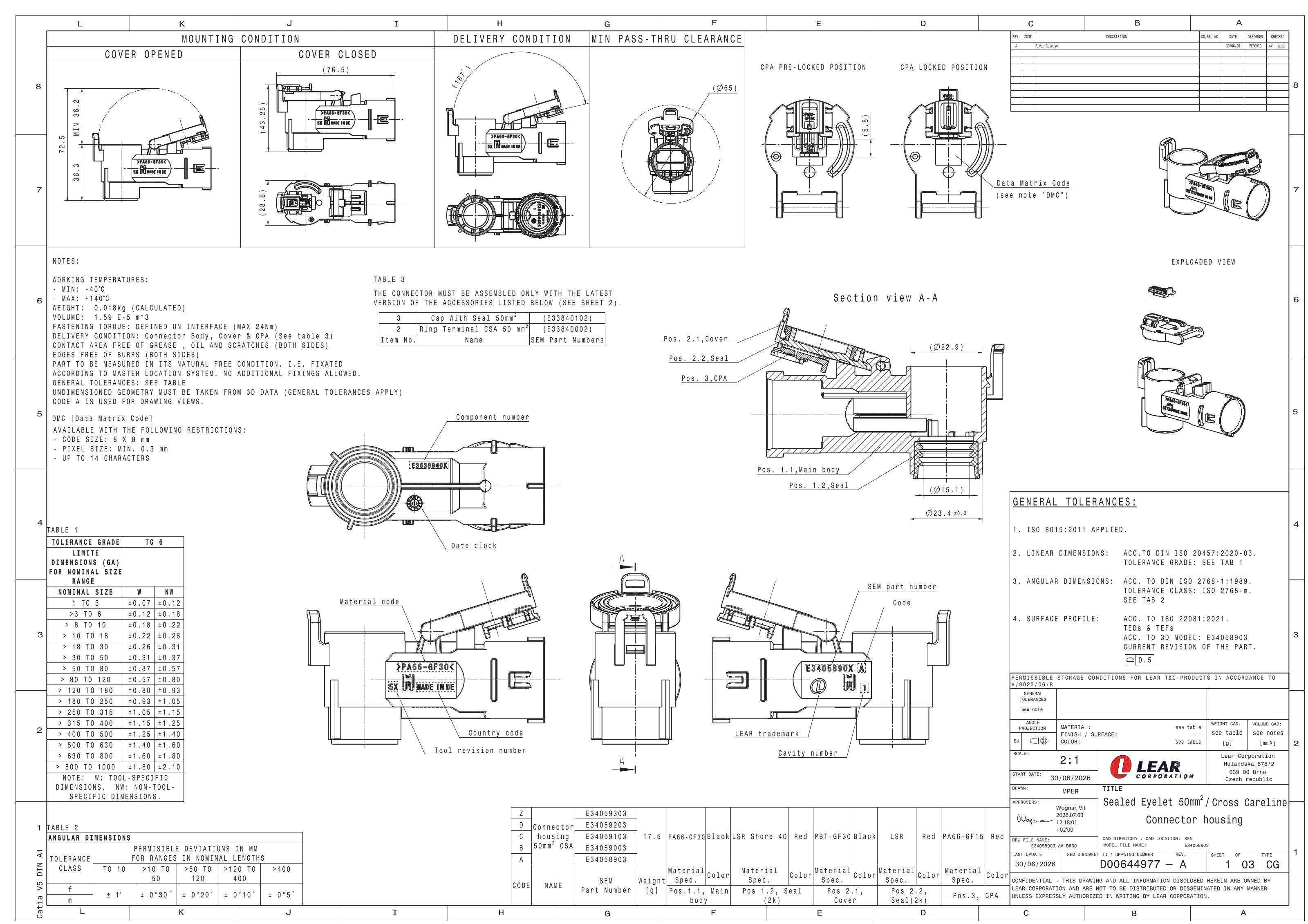

2D Drawing

2D Drawing E34059103

DOWNLOAD

3D PDF

3D PDF E34059103

DOWNLOAD

3D Cad

3D Cad E34059103

DOWNLOAD
1way Eyelet Sealed Black Connector with CPA, Code A
1way Eyelet Sealed Black Connector with CPA, Code A
E34058903
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code B
1way Eyelet Sealed Black Connector with CPA, Code B
E34059003
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code D
1way Eyelet Sealed Black Connector with CPA, Code D
E34059203
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
1way Eyelet Sealed Black Connector with CPA, Code Z
1way Eyelet Sealed Black Connector with CPA, Code Z
E34059303
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
1
Product Family
–
Terminal Size [mm]
–
Sealable
Sealed
SEALED EYELET 50CSA
SEALED EYELET 50CSA
E33840002
Product Category:
EYELETS
Legacy Part Number:
–
Minimum Cable Cross section [mm²]
50
Maximum Cable Cross section [mm²]
50
Thread Diameter [mm]
M8
SEALED CAP 50CSA
SEALED CAP 50CSA
E33840102
Product Category:
SEALS
Legacy Part Number:
–
Seal type
Wire Seal Cap
Cable diam min [mm]
11.8
Cable diam max [mm]
12.2

Loading...

E34059103 - 1way Eyelet Sealed Black Connector with CPA, Code C

Part Number: E34059103

Click to see 3D model

1way Eyelet Sealed Black Connector with CPA, Code C

Product Specification

Single-cavity sealed connector with an eyelet terminal type. The sealed construction ensures environmental protection suitable for demanding automotive installations.

Primarily designed for 48V applications in automotive vehicles. Mechanical coding C provides a poka-yoke mating feature to prevent incorrect assembly, and the connector is equipped with a Connector Position Assurance (CPA) mechanism to confirm full mating engagement.

The main connector part is molded in PA66 GF with a dominant black color. Operating temperature range spans −40 to 140 °C.

The eyelet hole diameter is 8.5 mm, matching an M8 stud size. The mating cable cross-sectional area is 50 mm².

Part Number: E34059103.
