TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E05685100
- Legacy Part Number
- 19623000001
- Product Family
- MAK
Other properties
- No. of cavities
- 1
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 12
- Sealable
- Sealed
- CPA
- With CPA
- TPA
- With TPA
- Color
- BLACK
- Connector Application
- Inline
- Mechanical coding
- A

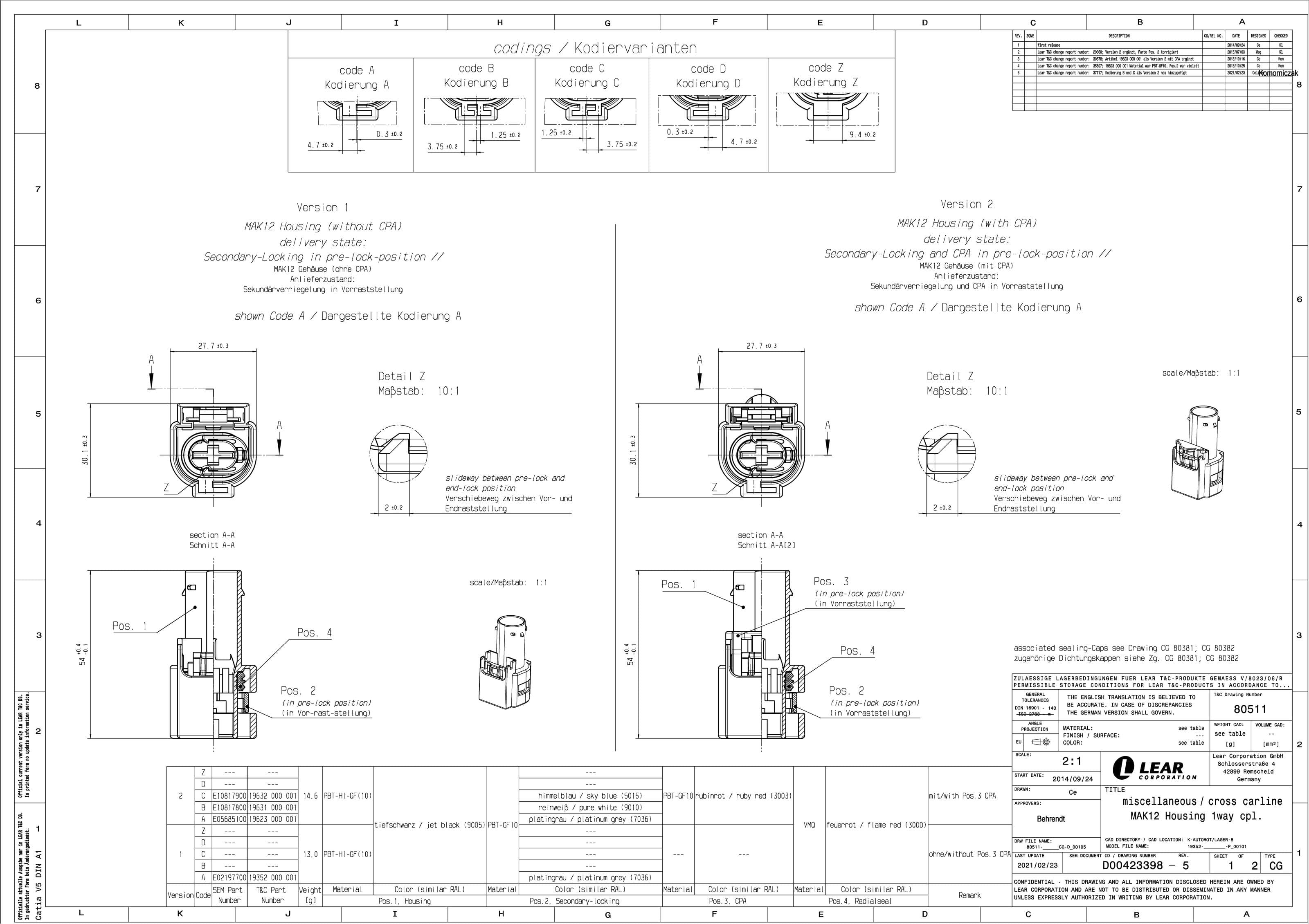

E05685100 - 1way MAK 12 Receptacle Sealed Black Connector with CPA, Code A
Part Number: E05685100
Product Specification
Previously cataloged under part number 19623000001.
This connector belongs to the MAK product family within the CONNECTORS category. It is a sealed receptacle configured with a single cavity (1 way) and a terminal size of 12 mm.
Primarily designed for inline applications in automotive vehicles.
Mating integrity is supported by a Code A mechanical coding (poka-yoke) feature, ensuring correct connector orientation during assembly. The connector is equipped with both a Connector Position Assurance (CPA) and a Terminal Position Assurance (TPA) device, providing dual retention confirmation for a secure, fully seated connection.
The main connector part is molded in PBT GF with a dominant black color.
Part Number: E05685100.
This product requires other components for a fully functional assembly configuration:
Lear Connection Systems is offering other variants of this product:
