TECHNICAL INFORMATION

Identification

Product Category
SEALS
Part Number
E06190400
Legacy Part Number
19654000001

Other properties

Seal type
Wire Seal Cap
Nominal cavity hole diameter [mm]
10.6
Cable diam min [mm]
9.4
Cable diam max [mm]
10.4

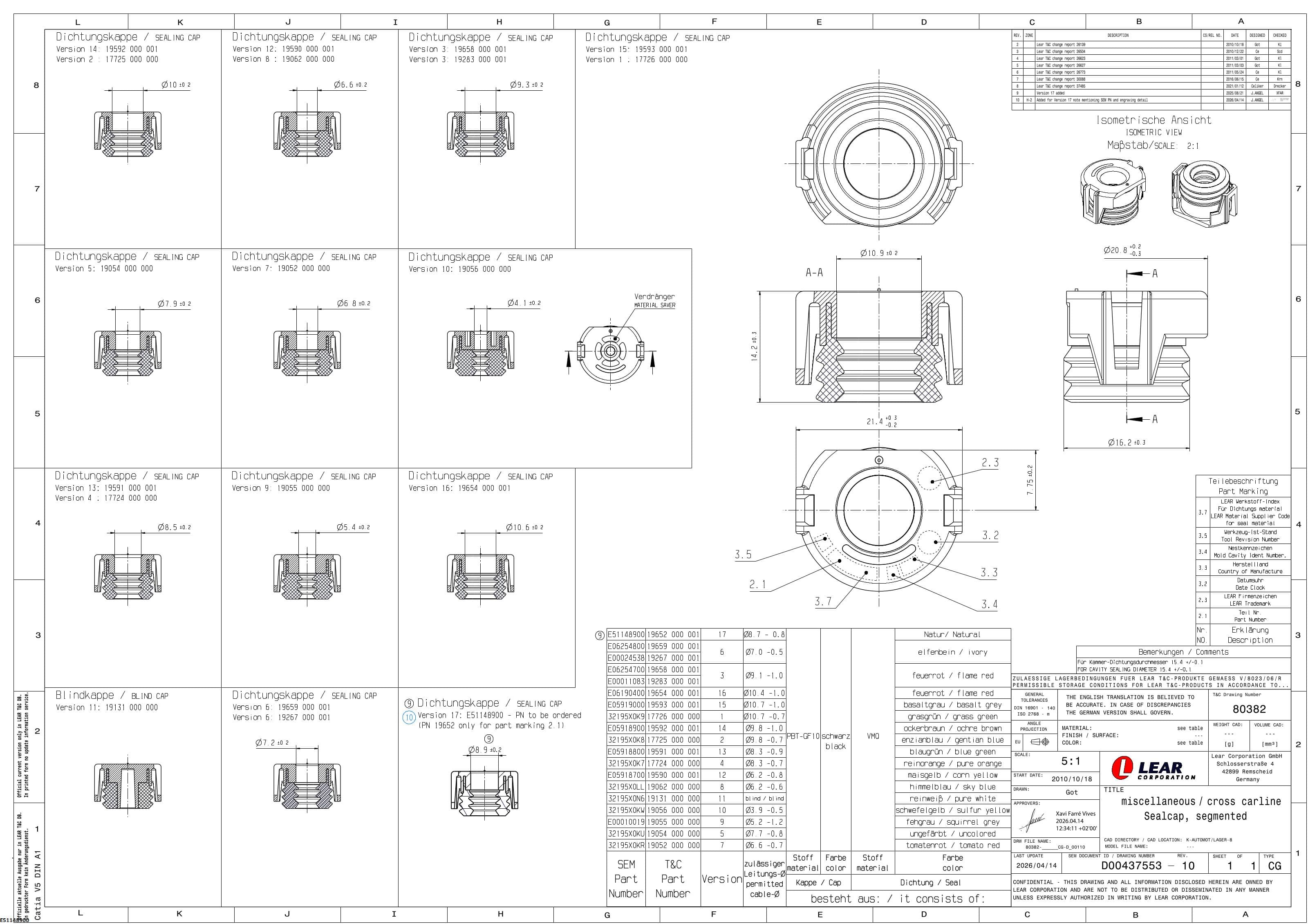

2D Drawing

2D Drawing E06190400

DOWNLOAD

3D PDF

3D PDF E06190400

DOWNLOAD

3D Cad

3D Cad E06190400

DOWNLOAD
1way MAK 12 Receptacle Sealed Black Connector with CPA, Code A
1way MAK 12 Receptacle Sealed Black Connector with CPA, Code A
E05685100
Product Category:
CONNECTORS
Legacy Part Number:
19623000001
No. of cavities
1
Product Family
MAK
Terminal Size [mm]
12
Sealable
Sealed

Loading...

E06190400 - Wire Seal Cap

Part Number: E06190400

Click to see 3D model

Wire Seal Cap

Product Specification

Previously cataloged under part number 19654000001.

A wire sealing cap that provides environmental protection at the cable entry point of an occupied connector cavity. Its two-component (2K) design combines effective sealing performance with enhanced cable support. The integrated rigid plastic element reinforces strain relief and cable retention, particularly for larger wire cross-sections.

Constructed from VMQ and PBT-GF10, the cap accepts cable insulation diameters from 9.4 mm to 10.4 mm.

Part Number: E06190400.

This product requires other components for a fully functional assembly configuration:
