TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E05685100
- Legacy Part Number
- 19623000001
- Product Family
- MAK
Other properties
- No. of cavities
- 1
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 12
- Sealable
- Sealed
- CPA
- With CPA
- TPA
- With TPA
- Color
- BLACK
- Connector Application
- Inline
RELATED PARTS
WIRE SEAL CAP
Part Number: 32195X0K4
Product Category: SEALS
Legacy Part Number: 17706000000
Seal type
Wire Seal Cap
Cable diam min [mm]
5.6
Cable diam max [mm]
5.9
WIRE SEAL CAP
Part Number: 32195X0K5
Product Category: SEALS
Legacy Part Number: 17707000000
Seal type
Wire Seal Cap
Cable diam min [mm]
7.6
Cable diam max [mm]
8.3
WIRE SEAL CAP
Part Number: E03744800
Product Category: SEALS
Legacy Part Number: 19488000001
Seal type
Wire Seal Cap
Cable diam min [mm]
6.9
Cable diam max [mm]
7.7
RESTRICTED PRODUCT
Part Number: E03903900
Product Category: SEALS
Legacy Part Number: 17334000001
Seal type
Single Wire Seal
Cable diam min [mm]
10
Cable diam max [mm]
10.7
RESTRICTED PRODUCT
Part Number: E03905800
Product Category: SEALS
Legacy Part Number: 17570000001
Seal type
Single Wire Seal
Cable diam min [mm]
8.1
Cable diam max [mm]
9.1
MAK 12 TERMINAL
Part Number: E04422100
Product Category: TERMINALS
Legacy Part Number: 28815000001
Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35
WIRE SEAL CAP
Part Number: E06190400
Product Category: SEALS
Legacy Part Number: 19654000001
Seal type
Wire Seal Cap
Cable diam min [mm]
9.4
Cable diam max [mm]
10.4
MAK 12.0 TERMINAL
Part Number: E06825700
Product Category: TERMINALS
Legacy Part Number: 28499000003
Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35

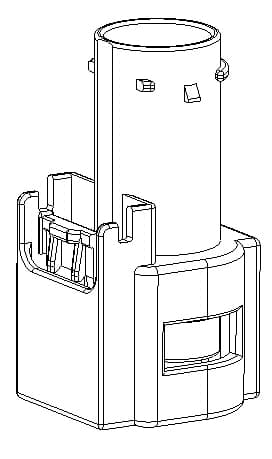

MAK12 HOUSING 1WAY
Part Number: E05685100
Product Specification
Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.
The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
