TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E34895900
- Product Family
- AFS, MAS
Other properties
- No. of cavities
- 4
- Terminal Type
- Tab
- Terminal Size [mm]
- 4.8, 9.5
- Sealable
- Sealed
- Color
- BLACK
- Connector Application
- Inline, Cooling Fan, 48V
- Mechanical coding
- A

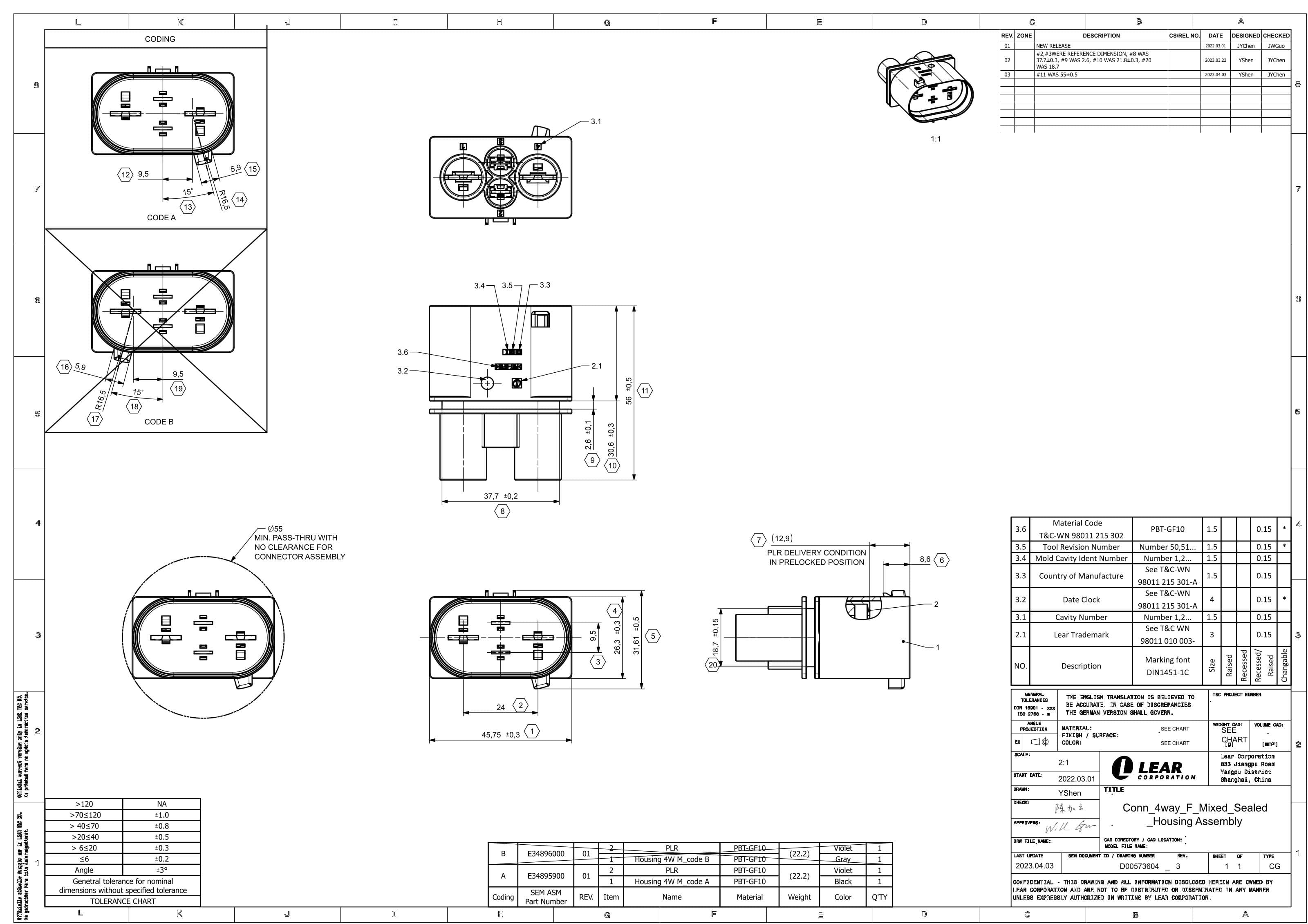

2D Drawing
2D Drawing E34895900
AFS Tab Sealed Crimp Terminal, Sn, 0.5-1mm²
3202636Q4
Product Category:
TERMINALSLegacy Part Number:
26687330185Terminal Size [mm]
–
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFS 4.8 Tab Sealed Crimp Terminal, Sn, 1.5-2.5mm²
3202636T5
Product Category:
TERMINALSLegacy Part Number:
26691330185Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
AFS 4.8 Tab Sealed Crimp Terminal, Sn, 2.5-4mm²
3202636U3
Product Category:
TERMINALSLegacy Part Number:
26693330185Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
AFS 4.8 Tab Sealed Crimp Terminal, Sn, 4-6mm²
3202636K7
Product Category:
TERMINALSLegacy Part Number:
26978306179Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
AFS 4.8 Tab Sealed Crimp Terminal, Ag, 4-6mm²
3202636L5
Product Category:
TERMINALSLegacy Part Number:
26978306710Terminal Size [mm]
4.8
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6

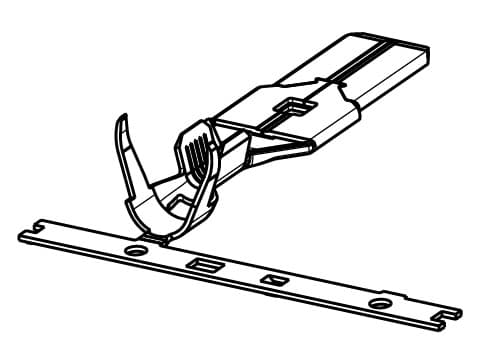

MAS 9.5 Tab Sealed Crimp Terminal, Sn, 2.5-4mm²
E37991200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
9.5
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAS 9.5 Tab Sealed Crimp Terminal, Ag, 2.5-4mm²
E36213600
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
9.5
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAS 9.5 Tab Sealed Crimp Terminal, Sn, 6-8mm²
E37991300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
8
MAS 9.5 Tab Sealed Crimp Terminal, Ag, 6-8mm²
E36213700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
8
E34895900 - 4way AFS/MAS 4.8/9.5 Tab Sealed Black Connector, Code A
Part Number: E34895900
Product Specification
This sealed connector provides 4 cavities and accepts tab terminals in both 4.8 mm and 9.5 mm sizes. It belongs to the Connectors product category and is part of the AFS and MAS product families.
Primarily designed for inline and cooling fan applications in automotive vehicles.
Mating integrity is ensured through a mechanical coding feature (Code A) that provides poka-yoke alignment during connector mating.
The main connector part is molded in PBT GF with a dominant black color.
Part Number: E34895900.
This product requires other components for a fully functional assembly configuration:
- AFS Tab Sealed Crimp Terminal, Sn, 0.5-1mm² (3202636Q4)
- AFS 4.8 Tab Sealed Crimp Terminal, Sn, 1.5-2.5mm² (3202636T5)
- AFS 4.8 Tab Sealed Crimp Terminal, Sn, 2.5-4mm² (3202636U3)
- AFS 4.8 Tab Sealed Crimp Terminal, Sn, 4-6mm² (3202636K7)
- AFS 4.8 Tab Sealed Crimp Terminal, Ag, 4-6mm² (3202636L5)
- MAS 9.5 Tab Sealed Crimp Terminal, Sn, 2.5-4mm² (E37991200)
- MAS 9.5 Tab Sealed Crimp Terminal, Ag, 2.5-4mm² (E36213600)
- MAS 9.5 Tab Sealed Crimp Terminal, Sn, 6-8mm² (E37991300)
- MAS 9.5 Tab Sealed Crimp Terminal, Ag, 6-8mm² (E36213700)
Lear Connection Systems is offering other variants of this product:
