TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
3202636K7
Legacy Part Number
26978306179
Product Family
AFS

Other properties

Core Material
Cu
Plating Material
Not Plated
Sealable
Sealed
Connection Technology
Standard Crimp
Terminal Type
Tab
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6

DOWNLOADS

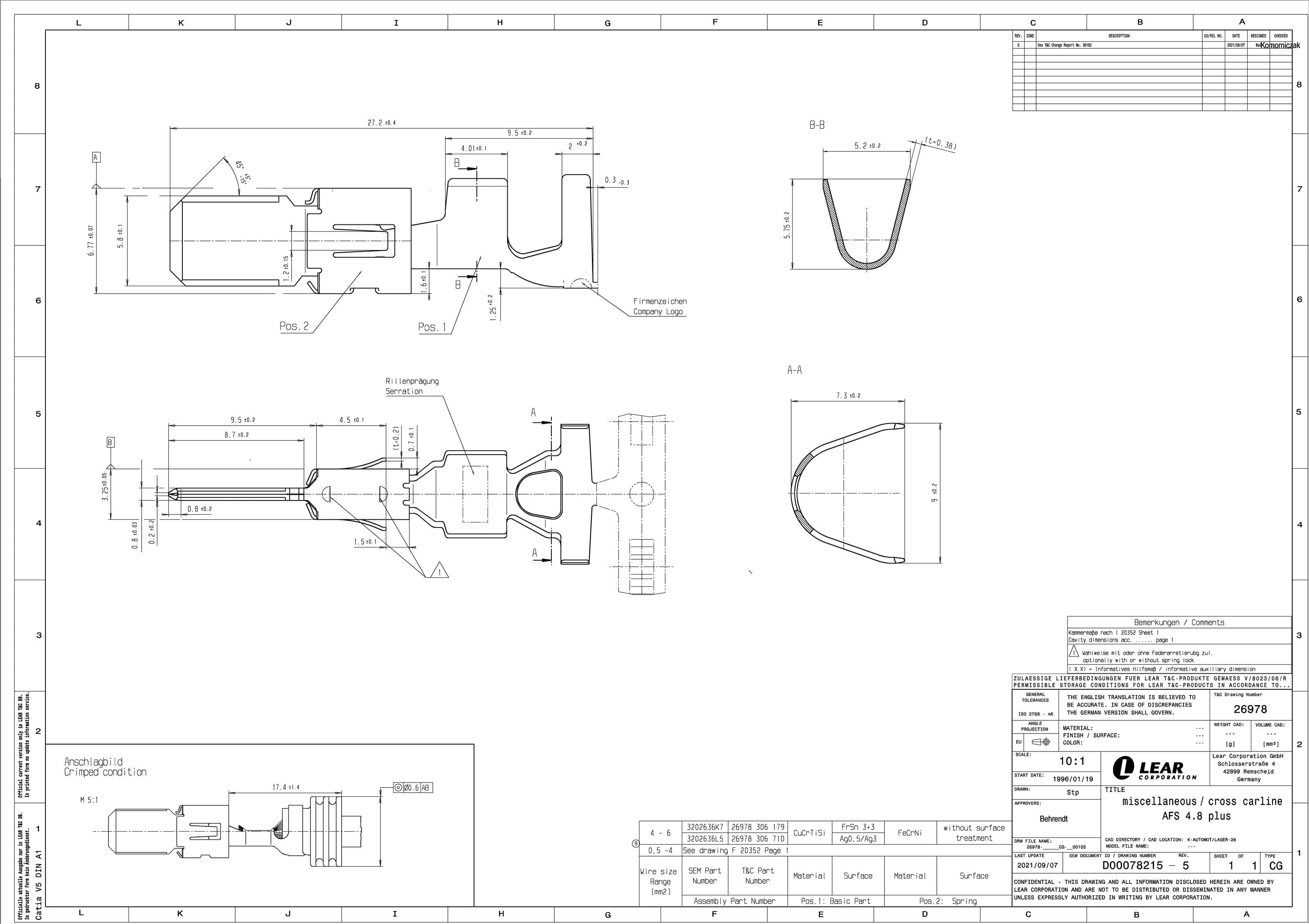

2D Drawing

2D Drawing 3202636K7

DOWNLOAD

3D PDF

3D PDF 3202636K7

DOWNLOAD

3D Cad

3D Cad 3202636K7

DOWNLOAD

Loading...

AFS 4.8 PLUS TERMINAL

Part Number: 3202636K7

Click to see 3D model

AFS 4.8 PLUS TERMINAL

Product Specification

Lear's AFS Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. lts high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. lts compact design, low mating efforts and good terminal retention allow high density connectors.
