TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E36213600
- Product Family
- MAS
Other properties
- Terminal Size [mm]
- 9.5
- Application
- High Current
- Core Material
- CuFe
- Plating Material
- Ag
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 2.5
- Maximum Cable Cross section [mm²]
- 4
- Min Temp (C)
- -40
- Max Temp (C)
- +150

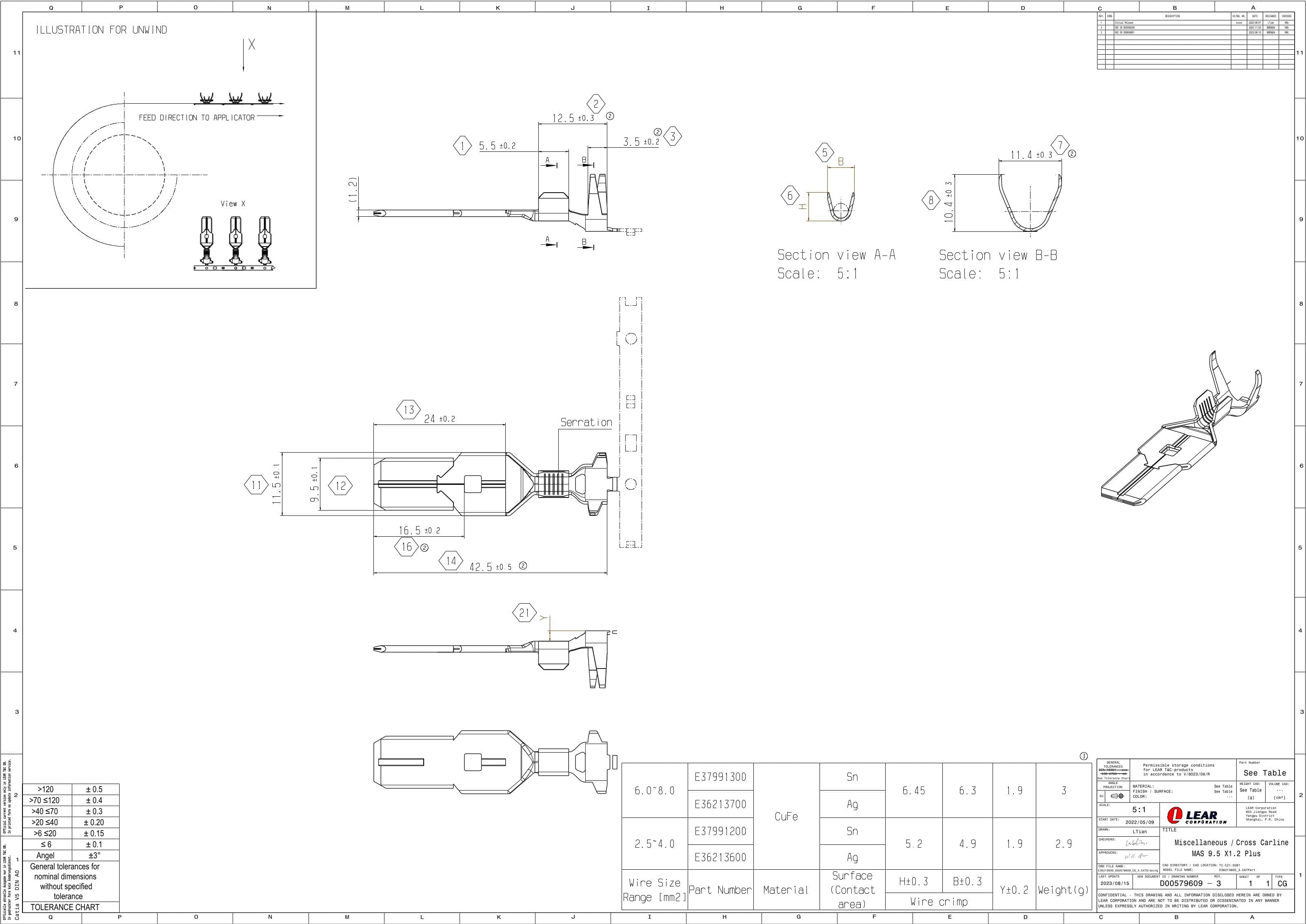

2D Drawing
2D Drawing E36213600
MAS 9.5 Tab Sealed Crimp Terminal, Sn, 2.5-4mm²
E37991200
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
9.5
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
MAS 9.5 Tab Sealed Crimp Terminal, Sn, 6-8mm²
E37991300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
8
MAS 9.5 Tab Sealed Crimp Terminal, Ag, 6-8mm²
E36213700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
8
4way AFS/MAS 4.8/9.5 Tab Sealed Black Connector, Code A
E34895900
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFS, MAS
Terminal Size [mm]
4.8, 9.5
Sealable
Sealed
4way AFS/MAS 4.8/9.5 Tab Sealed Gray Connector, Code B
E34896000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFS, MAS
Terminal Size [mm]
4.8, 9.5
Sealable
Sealed
E36213600 - MAS 9.5 Tab Sealed Crimp Terminal, Ag, 2.5-4mm²
Part Number: E36213600
Product Specification
A sealed tab terminal belonging to the MAS product family, sized at 9.5 mm. It falls within the Terminals product category.
Part Number: E36213600.
This product requires other components for a fully functional assembly configuration:
Lear Connection Systems is offering other variants of this product:
