TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E51716200
- Product Family
- AFS
Other properties
- No. of cavities
- 4
- Terminal Type
- Tab
- Terminal Size [mm]
- 1.5
- Sealable
- Unsealed
- Color
- BLACK
- Connector Application
- Inline

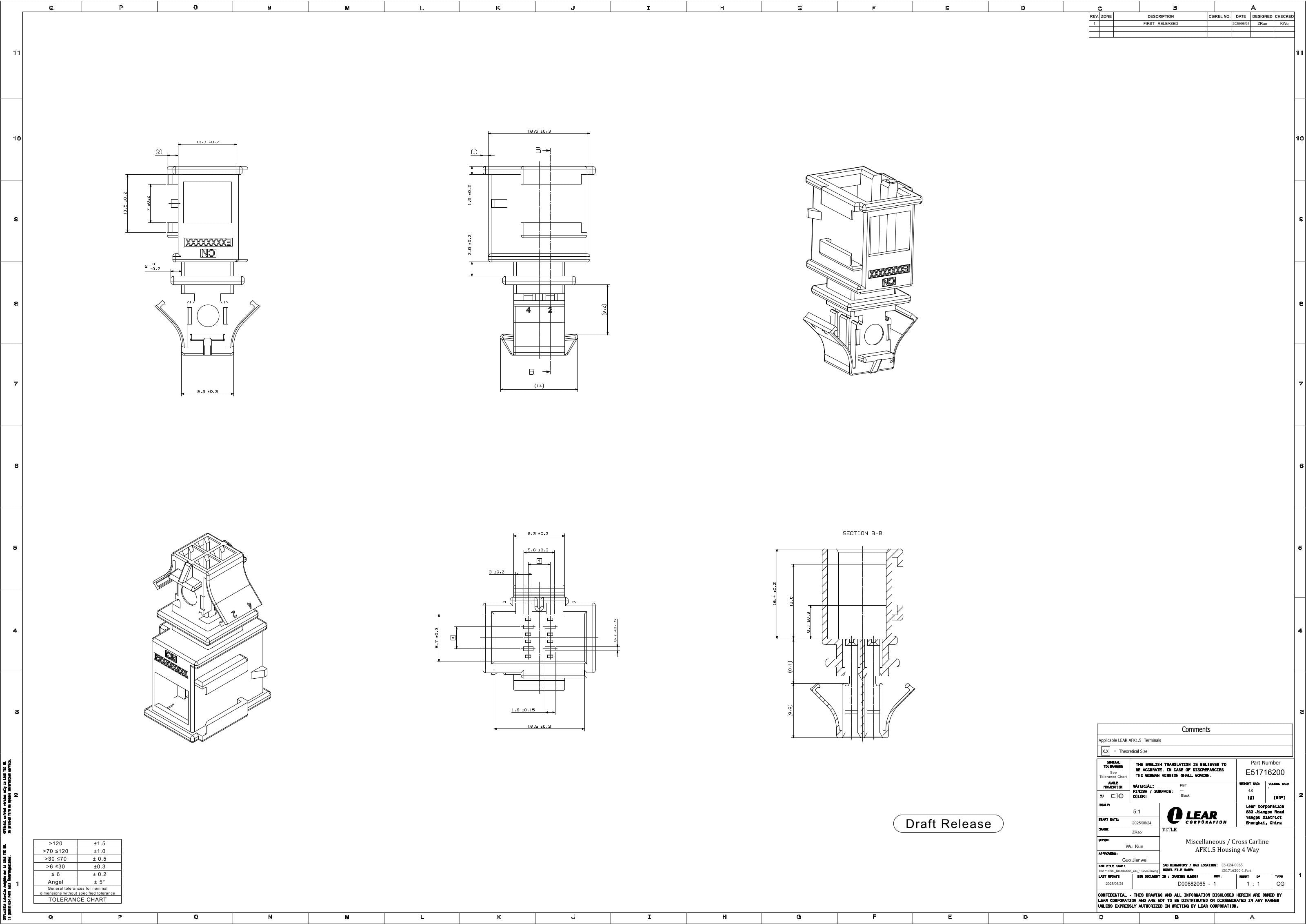

2D Drawing
2D Drawing E51716200
4way AFK 1.5 Receptacle Unsealed Black Connector
E37112300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
1.5
Sealable
Unsealed
AFS 1.5 Tab Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E26349500
Product Category:
TERMINALSLegacy Part Number:
26589000001Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFS 1.5 Tab Unsealed Crimp Terminal, Sn, 0.5-1mm²
320250A94
Product Category:
TERMINALSLegacy Part Number:
26590330185Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
E51716200 - 4way AFS 1.5 Tab Unsealed Black Connector
Part Number: E51716200
Product Specification
This connector belongs to the AFS product family within the Connectors category, configured as a 4-cavity, unsealed design with a Tab terminal type in the 1.5 mm terminal size.
Primarily designed for inline applications in automotive vehicles.
The main connector part is molded in PBT with a dominant black color.
Part Number: E51716200.
This product requires other components for a fully functional assembly configuration:
