TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E26349500
- Legacy Part Number
- 26589000001
- Product Family
- AFS
Other properties
- Terminal Size [mm]
- 1.5
- Core Material
- Cu
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 0.2
- Maximum Cable Cross section [mm²]
- 0.35
- Min Temp (C)
- -40
- Max Temp (C)
- +130
2way AFS 1.5 Tab Unsealed Black Connector
E51716000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
2
Product Family
AFS
Terminal Size [mm]
1.5
Sealable
Unsealed
4way AFS 1.5 Tab Unsealed Black Connector
E51716200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFS
Terminal Size [mm]
1.5
Sealable
Unsealed
8way AFS 1.5 Tab Unsealed Black Connector
E49024500
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
8
Product Family
AFS
Terminal Size [mm]
1.5
Sealable
Unsealed
22way COS/AFS 0.63/1.5/2.8 Tab Unsealed Black Connector, Code A
E33901900
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
22
Product Family
COS, AFS
Terminal Size [mm]
0.63, 1.5, 2.8
Sealable
Unsealed
22way COS/AFS 0.63/1.5/2.8 Tab Unsealed Gray Connector, Code B
E33902000
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
22
Product Family
COS, AFS
Terminal Size [mm]
0.63, 1.5, 2.8
Sealable
Unsealed

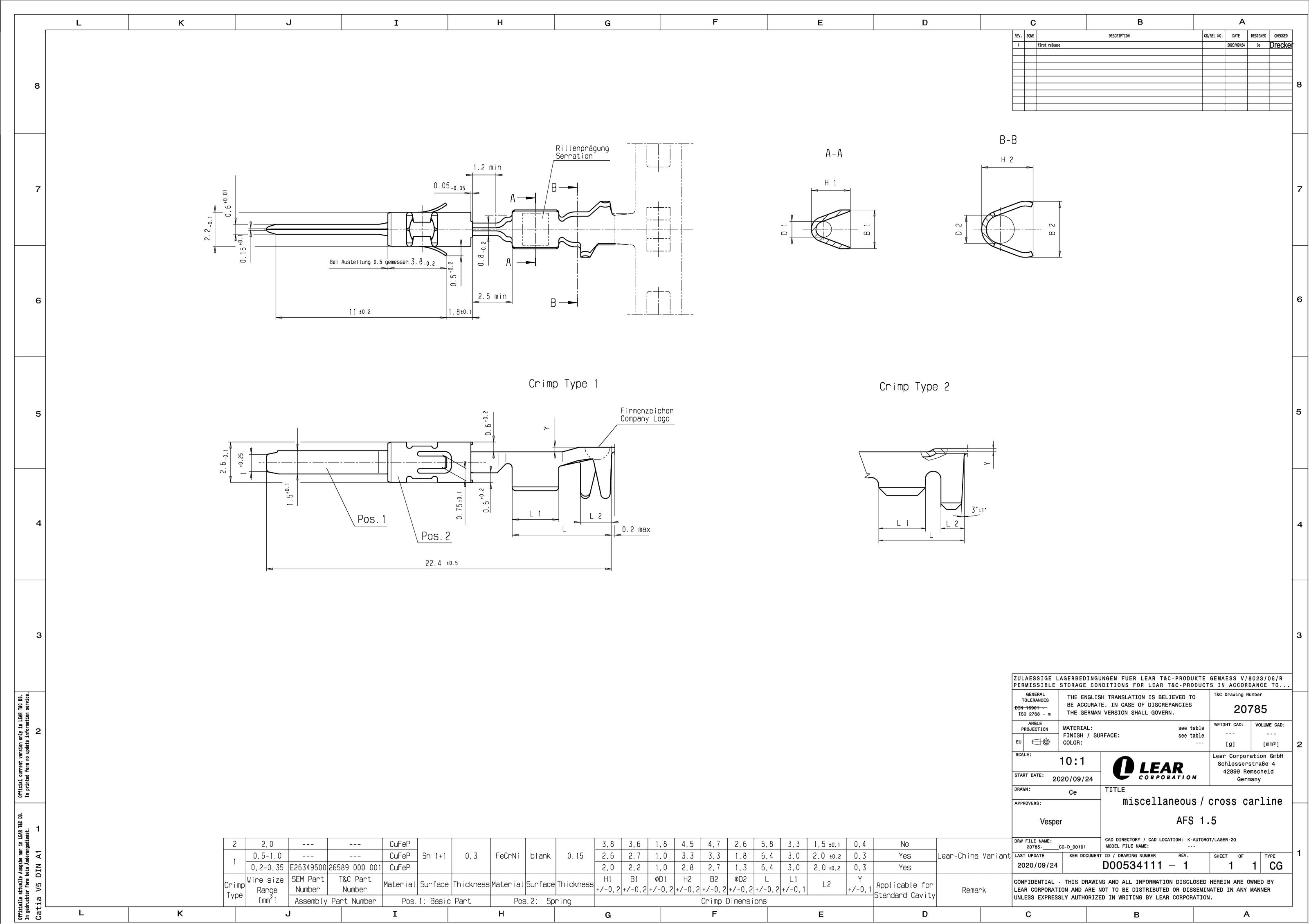

E26349500 - AFS 1.5 Tab Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
Part Number: E26349500
Product Specification
Previously cataloged under part number 26589000001.
Lear's AFS Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. lts high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. lts compact design, low mating efforts and good terminal retention allow high density connectors.
Part Number: E26349500.
This product requires other components for a fully functional assembly configuration:
- 2way AFS 1.5 Tab Unsealed Black Connector (E51716000)
- 4way AFS 1.5 Tab Unsealed Black Connector (E51716200)
- 8way AFS 1.5 Tab Unsealed Black Connector (E49024500)
- 22way COS/AFS 0.63/1.5/2.8 Tab Unsealed Black Connector, Code A (E33901900)
- 22way COS/AFS 0.63/1.5/2.8 Tab Unsealed Gray Connector, Code B (E33902000)
