TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E26574000
- Legacy Part Number
- 26592000001
- Product Family
- AFK
Other properties
- Terminal Size [mm]
- 1.5
- Core Material
- Cu
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1
- Min Temp (C)
- -40
- Max Temp (C)
- +130
4way AFK 1.5/2.8 Receptacle Unsealed Black Connector
E01561800
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
1.5, 2.8
Sealable
Unsealed
4way AFK 1.5/2.8 Receptacle Unsealed Natural Connector
E01562100
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
1.5, 2.8
Sealable
Unsealed
4way AFK 1.5 Receptacle Unsealed Black Connector
E37112300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
4
Product Family
AFK
Terminal Size [mm]
1.5
Sealable
Unsealed
6way AFK 1.5 Receptacle Unsealed Black Connector
E52643900
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
6
Product Family
AFK
Terminal Size [mm]
1.5
Sealable
Unsealed

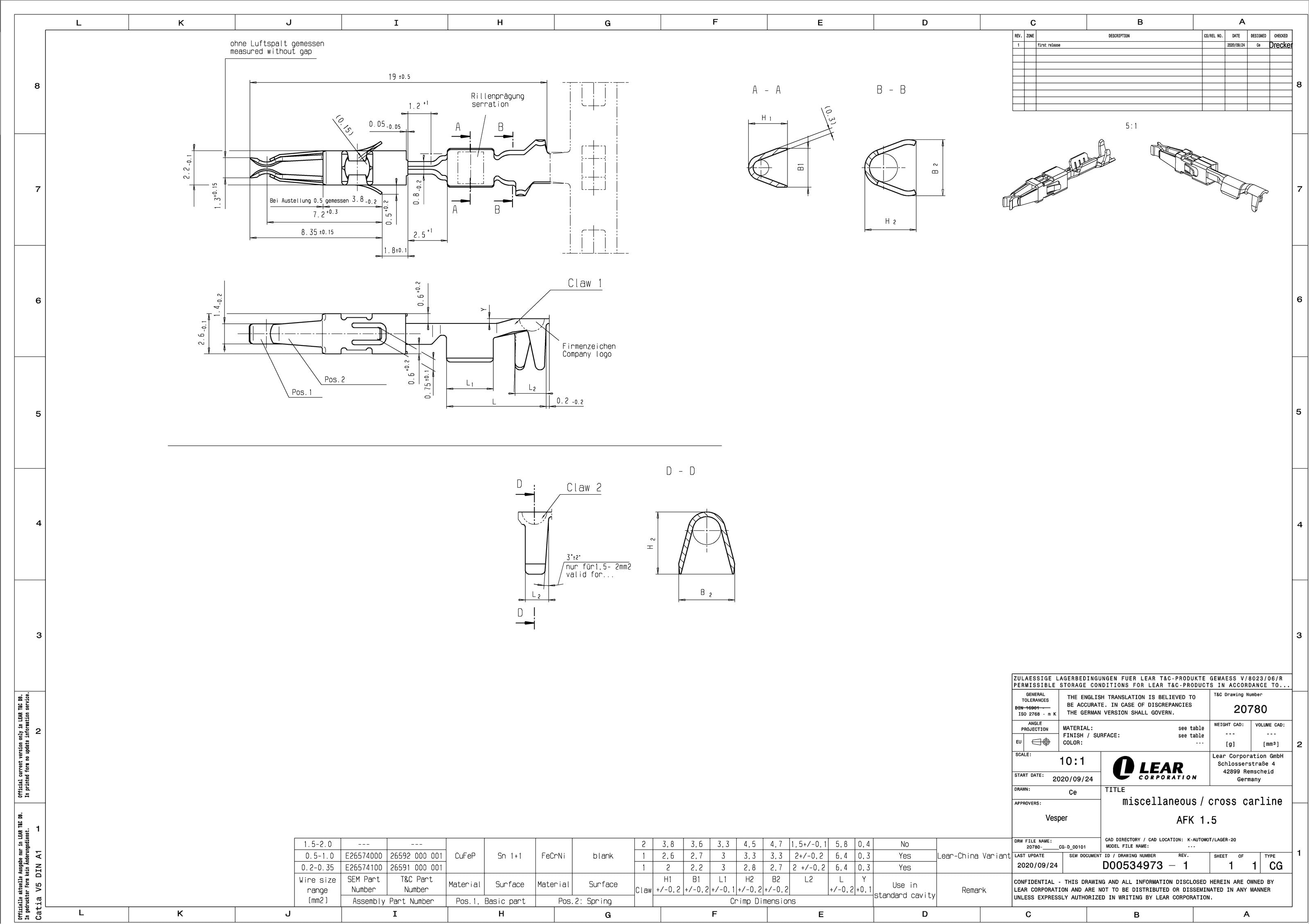

E26574000 - AFK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.5-1mm²
Part Number: E26574000
Product Specification
Previously cataloged under part number 26592000001.
Lear's AFK Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. Its high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. Two locking latches ensure secure locking in cavity.
lts compact design, low mating efforts and good terminal retention is ideal for high density connectors.
Part Number: E26574000.
This product requires other components for a fully functional assembly configuration:
