TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E27341000
- Legacy Part Number
- 29128000002
- Product Family
- MAS
Other properties
- Terminal Size [mm]
- 1.2
- Core Material
- CuNiSi
- Plating Material
- Ag
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 0.13
- Maximum Cable Cross section [mm²]
- 0.22
- Min Temp (C)
- -40
- Max Temp (C)
- 150

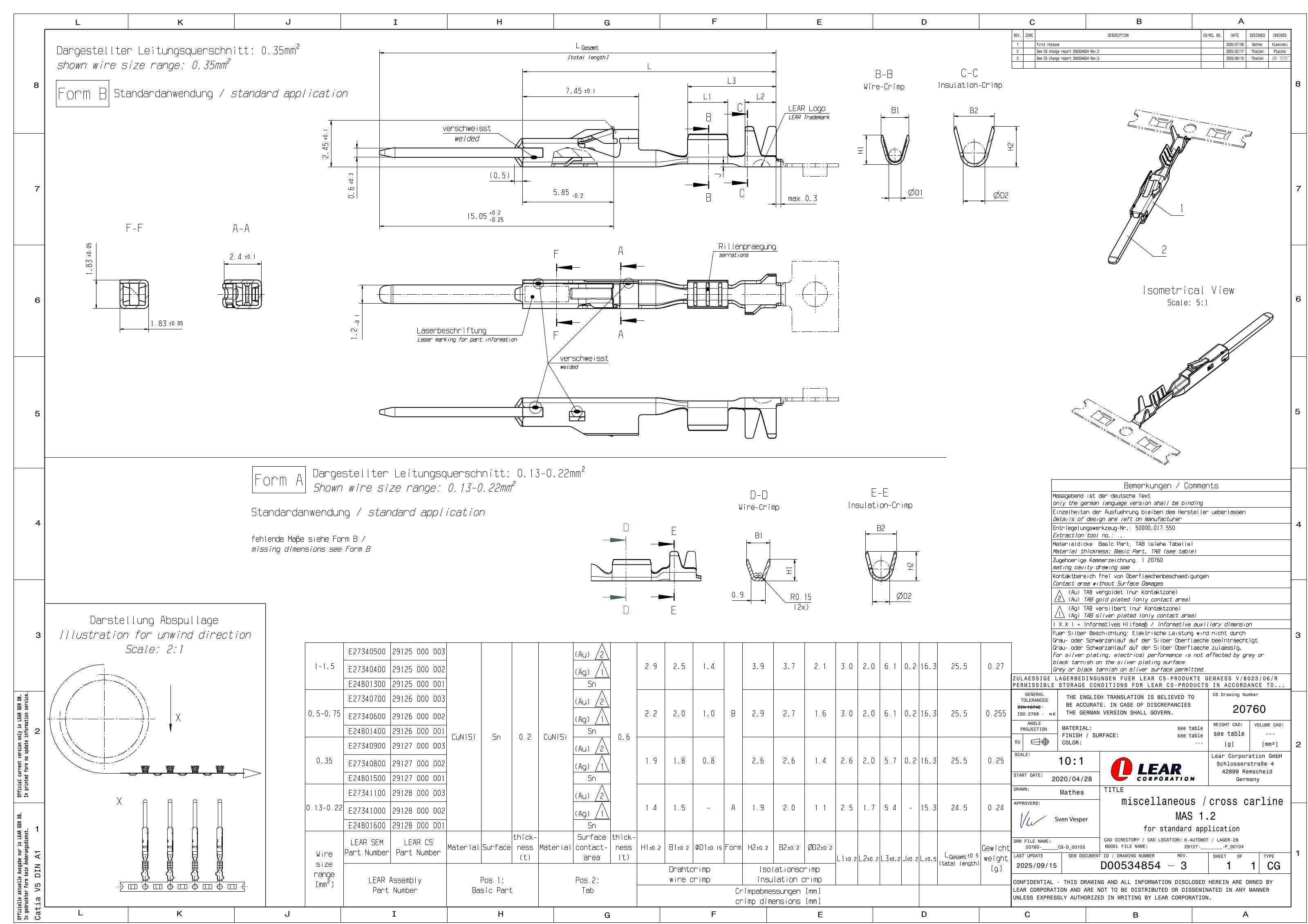

2D Drawing
2D Drawing E27341000
E27341000 - MAS 1.2 TERMINAL
Part Number: E27341000
Product Specification
Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.
The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
Part Number: E27341000.
