TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E37019300
Product Family
AFS

Other properties

Terminal Size [mm]
2.8
Core Material
CuFe
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Tab
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
4
Min Temp (C)
-40
Max Temp (C)
+130

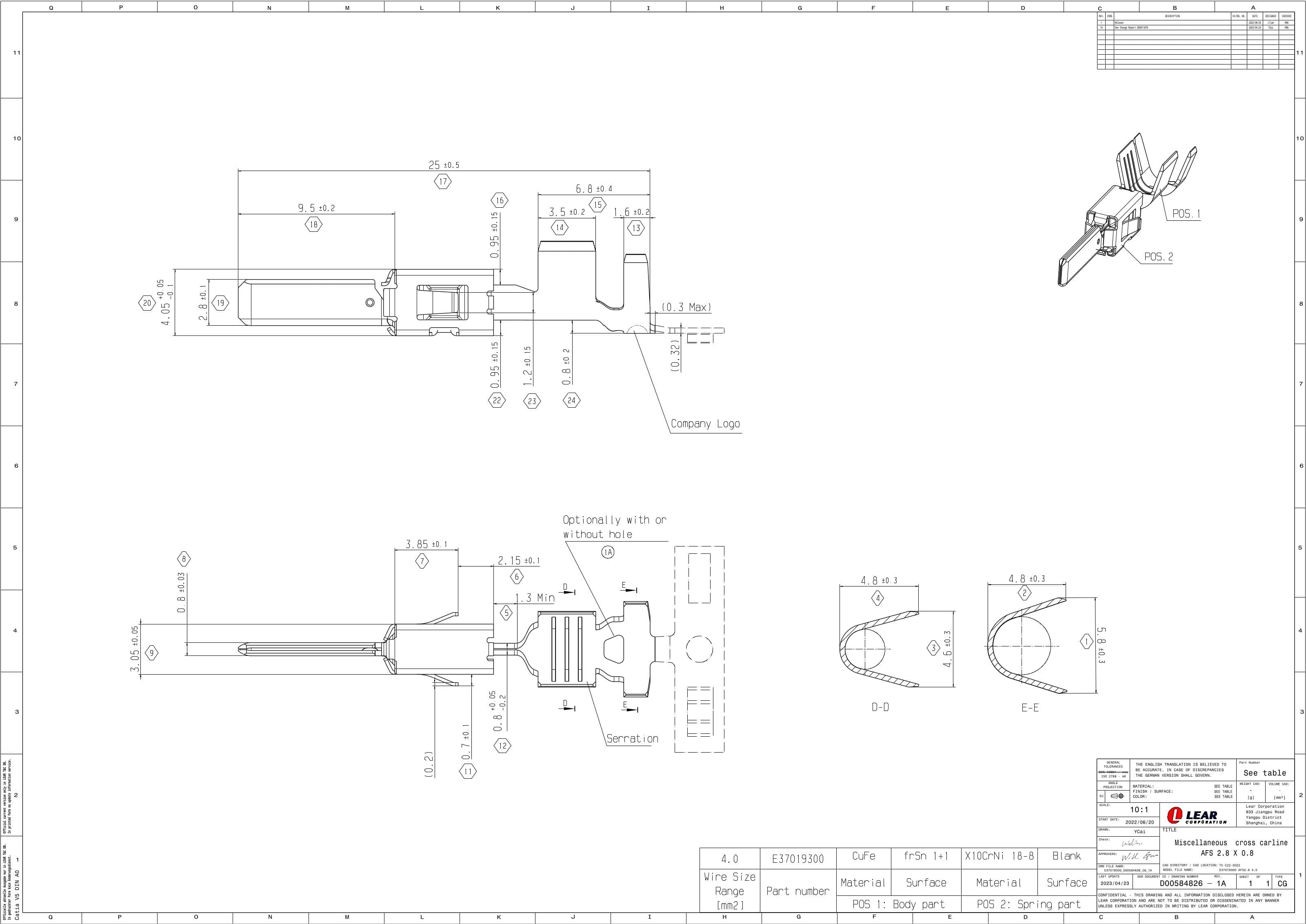

2D Drawing

2D Drawing E37019300

DOWNLOAD
AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
320250AA1
Product Category:
TERMINALS
Legacy Part Number:
26671330185
Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 0.5-1mm²
AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 0.5-1mm²
320250AB9
Product Category:
TERMINALS
Legacy Part Number:
26659330185
Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
320250AC7
Product Category:
TERMINALS
Legacy Part Number:
26657330185
Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5

E37019300 - AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 4mm²

Part Number: E37019300

AFS 2.8 Tab Unsealed Crimp Terminal, Sn, 4mm²

Product Specification

An unsealed tab terminal belonging to the AFS product family, categorized under terminals. Designed around a 2.8 mm terminal size, it is suited for crimp-style termination.

Rated for an operating temperature range of −40 °C to +130 °C, accommodating the thermal demands typical of automotive electrical environments.

Part Number: E37019300.
