HC 6.3 TERMINAL

Product Description

Lear’s High Current Connection Systems are developed to meet the demanding conditions of high power automotive applications and enhance their performance. Mainly used in Electric Vehicles and 48volt systems.

Our terminal and connector innovations combined with Lear’s system-level expertise results in an uncompromised solution for high power systems, delivered in the smallest packaged environment. The HC6.3 and HC14.5 give our cusotmers the abilitiy to transfer more current with reduced tab size compared to standard automotive terminal systems, Lear also offer a wide varity of flexible wire connections.

Downloads

3D PDF

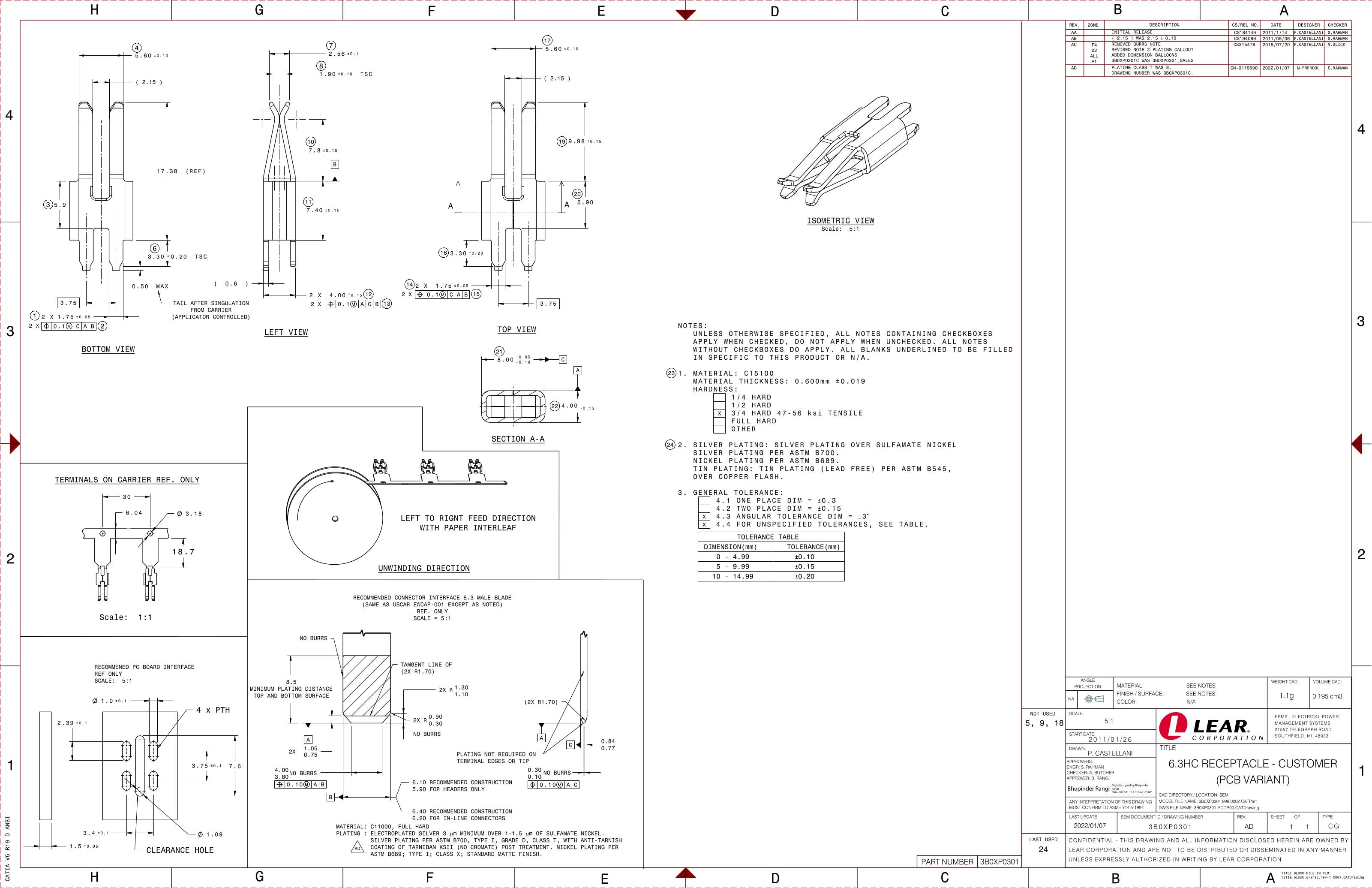

2D drawing
3D CAD
No downloads available

Product Specifications

Part Type

Terminals

Legacy Part Number

Product Family

HC

Terminal Size [mm]

6.30

Application

High Current

Material

A-Cu

Plating Material

D-Ag

Sealed

Yes
No

Connection Technology

PCB Soldered

Terminal Type

Receptacle

Minimum Cable Cross section [mm²]

Maximum Cable Cross section [mm²]

Min Temp (C)

Max Temp (C)

Current Range

Remarks

Terminal Weld PCB

RoHS

Yes

ELV
