TECHNICAL INFORMATION

Identification

Product Category
SEALS
Part Number
32195X0K8
Legacy Part Number
17725000000

Other properties

Seal type
Wire Seal Cap
Nominal cavity hole diameter [mm]
9.8
Cable diam min [mm]
9.1
Cable diam max [mm]
9.8

2D Drawing

2D Drawing 32195X0K8

DOWNLOAD

3D PDF

3D PDF 32195X0K8

DOWNLOAD

3D Cad

3D Cad 32195X0K8

DOWNLOAD
4way AFK/MAK 2.8/12 Receptacle Sealed Black Connector with CPA, Code A
4way AFK/MAK 2.8/12 Receptacle Sealed Black Connector with CPA, Code A
E01588300
Product Category:
CONNECTORS
Legacy Part Number:
19335000001
No. of cavities
4
Product Family
AFK, MAK
Terminal Size [mm]
2.8, 12
Sealable
Sealed

Loading...

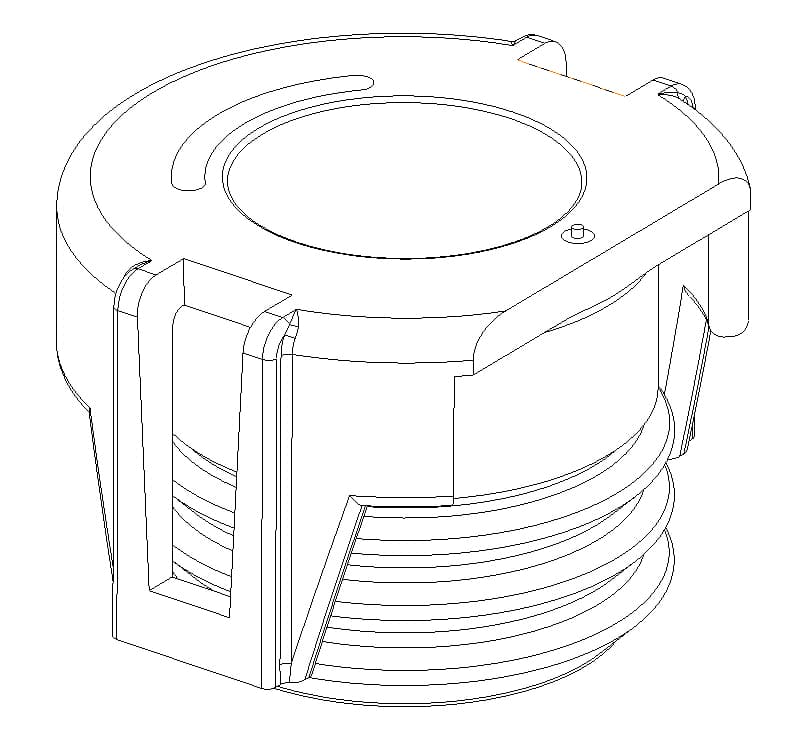

32195X0K8 - Wire Seal Cap, Cavity Hole Diameter 9.8mm

Part Number: 32195X0K8

Click to see 3D model

Wire Seal Cap, Cavity Hole Diameter 9.8mm

Product Specification

Previously cataloged under part number 17725000000.

A wire sealing cap that provides environmental protection at the cable entry point of an occupied connector cavity. Its two-component (2K) design combines effective sealing performance with enhanced cable support, with the integrated rigid plastic element reinforcing strain relief and cable retention — particularly suited to larger wire cross-sections. The seal body is constructed from VMQ, with the rigid structural element formed from PBT-GF14.

Designed to fit a connector cavity with a nominal hole diameter of 9.8 mm, it accepts cable insulation diameters from 9.1 mm to 9.8 mm.

Part Number: 32195X0K8.

This product requires other components for a fully functional assembly configuration:
