TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E01588300
- Legacy Part Number
- 19335000001
- Product Family
- AFK, MAK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 2.8, 12
- Sealable
- Sealed
- CPA
- With CPA
- TPA
- With TPA
- Color
- BLACK
- Min Temp (C)
- -40
- Max Temp (C)
- 125
- Connector Application
- Inline, Cooling Fan, HVAC
- Mechanical coding
- A

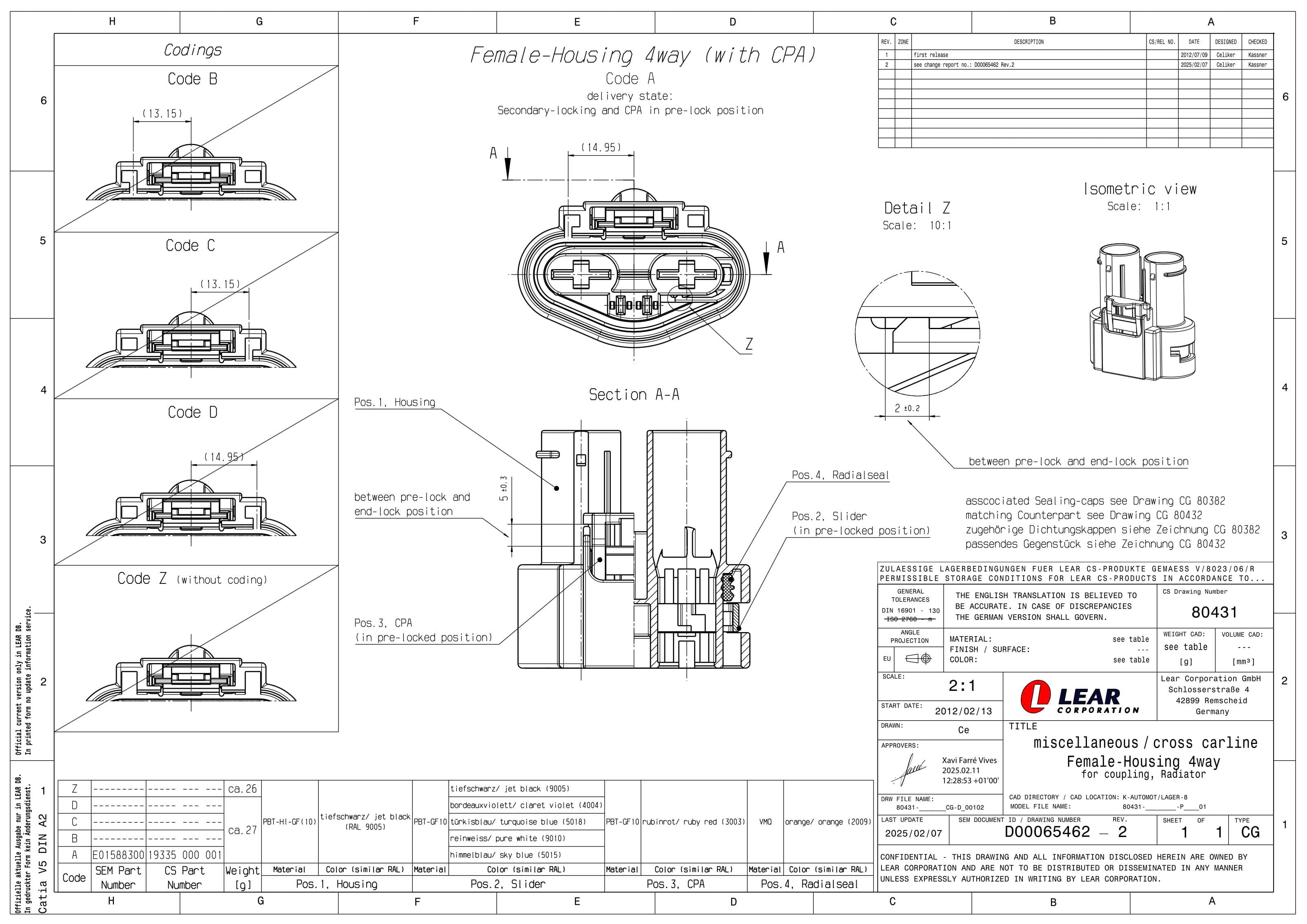

2D Drawing
2D Drawing E01588300
2way MAK 12 Receptacle Sealed Black Connector with CPA, Code A
E11426600
Product Category:
CONNECTORSLegacy Part Number:
19921000001CPA
With CPA
Color
BLACK
Connector Application
–
No. of cavities
2
2way MAK 12 Receptacle Sealed Connector with CPA
E11426800
Product Category:
CONNECTORSLegacy Part Number:
19923000001CPA
With CPA
Color
BLUE
Connector Application
–
No. of cavities
2
2way MAK 12 Receptacle Sealed Connector with CPA
E11426700
Product Category:
CONNECTORSLegacy Part Number:
19922000001CPA
With CPA
Color
WHITE
Connector Application
–
No. of cavities
2
2way MAK 12 Receptacle Sealed Black Connector, Code A
E05940900
Product Category:
CONNECTORSLegacy Part Number:
19600000001CPA
–
Color
BLACK
Connector Application
Inline
No. of cavities
2
4way AFS/MAS 2.8/12 Tab Sealed Black Connector, Code A
E01588400
Product Category:
CONNECTORSLegacy Part Number:
19336000001No. of cavities
4
Product Family
AFS, MAS
Terminal Size [mm]
2.8, 12
Sealable
Sealed
MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
3202595K6
Product Category:
TERMINALSLegacy Part Number:
28318306185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
32025Y194
Product Category:
TERMINALSLegacy Part Number:
28319306185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
E00000266
Product Category:
TERMINALSLegacy Part Number:
28320306185Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm²
E46488000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm²
E46488300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm²
E46488500
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm²
E06825700
Product Category:
TERMINALSLegacy Part Number:
28499000003Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35
MAK 12 Receptacle Sealed Ultrasonic Terminal, 4-35mm²
32025Y29U
Product Category:
TERMINALSLegacy Part Number:
28499306710Terminal Size [mm]
12
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35
Cavity Blind Plug
32195X0N6
Product Category:
SEALSLegacy Part Number:
19131000000Seal type
Cavity Blind Plug
Cable diam min [mm]
–
Cable diam max [mm]
–
Single Wire Seal, Cavity Hole Diameter 5.2mm
3204513S1
Product Category:
SEALSLegacy Part Number:
16695627642Seal type
Single Wire Seal
Cable diam min [mm]
1
Cable diam max [mm]
2.5
Wire Seal Cap, Cavity Hole Diameter 6.2mm
32195X0LL
Product Category:
SEALSLegacy Part Number:
19062000000Seal type
Wire Seal Cap
Cable diam min [mm]
5.6
Cable diam max [mm]
6.2
Wire Seal Cap, Cavity Hole Diameter 7.7mm
32195X0KU
Product Category:
SEALSLegacy Part Number:
19054000000Seal type
Wire Seal Cap
Cable diam min [mm]
6.9
Cable diam max [mm]
7.7
Wire Seal Cap, Cavity Hole Diameter 8.3mm
32195X0K7
Product Category:
SEALSLegacy Part Number:
17724000000Seal type
Wire Seal Cap
Cable diam min [mm]
7.6
Cable diam max [mm]
8.3
Wire Seal Cap, Cavity Hole Diameter 9.8mm
32195X0K8
Product Category:
SEALSLegacy Part Number:
17725000000Seal type
Wire Seal Cap
Cable diam min [mm]
9.1
Cable diam max [mm]
9.8
Wire Seal Cap
E00010019
Product Category:
SEALSLegacy Part Number:
19055000000Seal type
Wire Seal Cap
Cable diam min [mm]
4
Cable diam max [mm]
5.2
E01588300 - 4way AFK/MAK 2.8/12 Receptacle Sealed Black Connector with CPA, Code A
Part Number: E01588300
Product Specification
Previously cataloged under part number 19335000001.
This connector belongs to the CONNECTORS product category within the AFK and MAK product families, configured as a 4-cavity receptacle accommodating terminal sizes of 2.8 mm and 12 mm. The connector is fully sealed and incorporates Terminal Position Assurance (TPA) alongside Connector Position Assurance (CPA) to ensure reliable terminal retention and a secure mated connection.
Primarily designed for inline, cooling fan, and HVAC automotive vehicle applications. Mating integrity is further supported by mechanical coding A, providing a poka-yoke feature that prevents incorrect connector mating.
The main connector part is molded in PBT GF with a dominant black color. The connector operates across a temperature range of -40 to 125 °C.
Part Number: E01588300.
This product requires other components for a fully functional assembly configuration:
- 4way AFS/MAS 2.8/12 Tab Sealed Black Connector, Code A (E01588400)
- MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm² (3202595K6)
- MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (32025Y194)
- MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E00000266)
- MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.2-0.35mm² (E46488000)
- MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 0.5-1mm² (E46488300)
- MAK 2.8 Receptacle Sealed Crimp Terminal, Sn, 1.5-2.5mm² (E46488500)
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm² (E06825700)
- MAK 12 Receptacle Sealed Ultrasonic Terminal, 4-35mm² (32025Y29U)
- Cavity Blind Plug (32195X0N6)
- Single Wire Seal, Cavity Hole Diameter 5.2mm (3204513S1)
- Wire Seal Cap, Cavity Hole Diameter 6.2mm (32195X0LL)
- Wire Seal Cap, Cavity Hole Diameter 7.7mm (32195X0KU)
- Wire Seal Cap, Cavity Hole Diameter 8.3mm (32195X0K7)
- Wire Seal Cap, Cavity Hole Diameter 9.8mm (32195X0K8)
- Wire Seal Cap (E00010019)
Lear Connection Systems is offering other variants of this product:
