TECHNICAL INFORMATION
Identification
- Product Category
- SEALS
- Part Number
- 320455A94
- Legacy Part Number
- 16276627642
Other properties
- Seal type
- Single Wire Seal
- Nominal cavity hole diameter [mm]
- 5.2
- Cable diam min [mm]
- 1.2
- Cable diam max [mm]
- 2.1
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25434200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435200
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435300
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
46way CLF/MAK 1.2/2.8/6.3 Receptacle Sealed Black Connector
E25435400
Product Category:
CONNECTORSLegacy Part Number:
–No. of cavities
46
Product Family
CLF, MAK
Terminal Size [mm]
1.2, 2.8, 6.3
Sealable
Sealed
Loading...

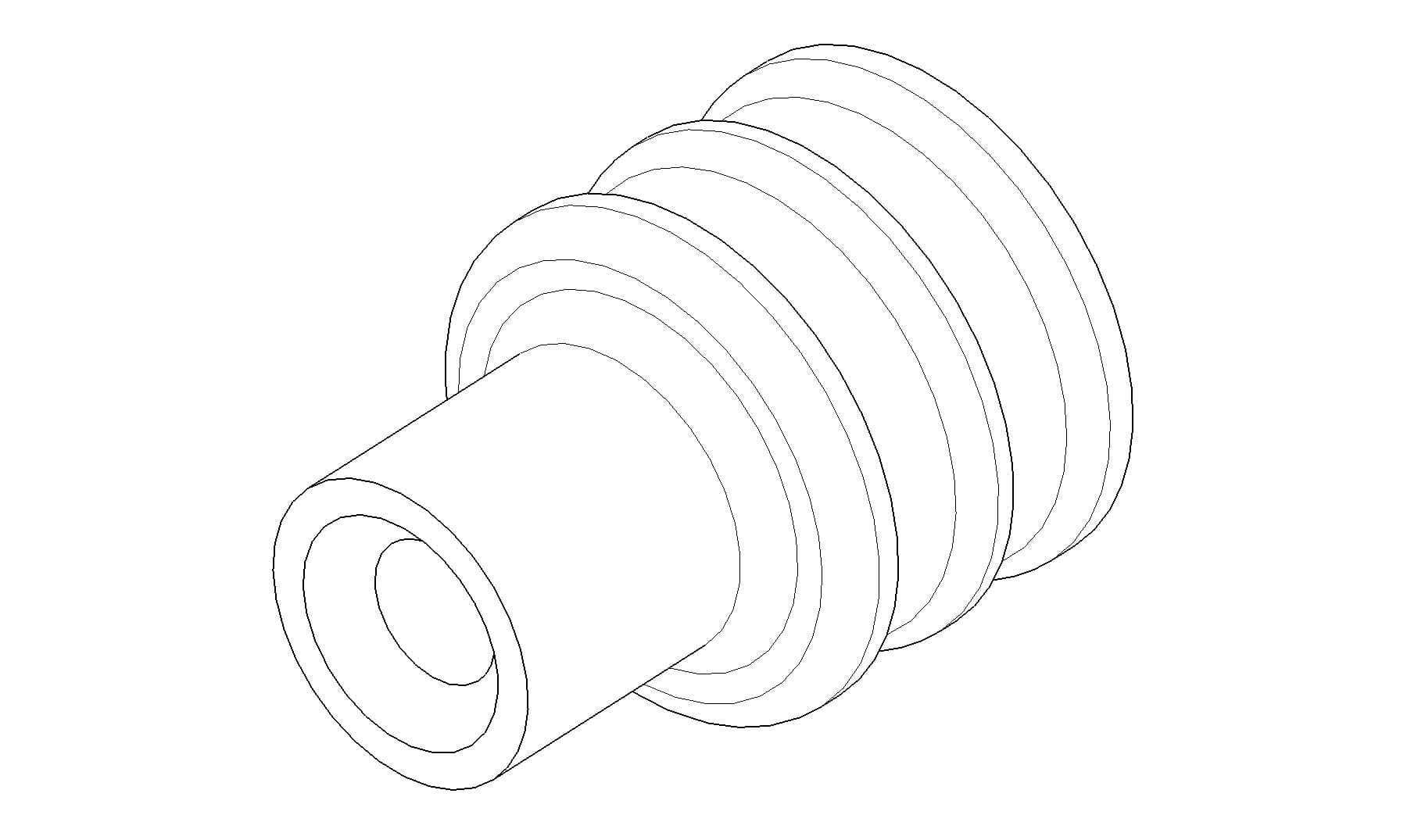

320455A94 - Single Wire Seal, Cavity Hole Diameter 5.2mm
Part Number: 320455A94
Click to see 3D model
Product Specification
Previously cataloged under part number 16276627642.
A single wire seal that provides environmental protection at the cable entry point of an occupied connector cavity. Engineered to form a reliable seal around the wire, it helps prevent water and contaminant ingress while maintaining connector performance. Constructed from VMQ silicone, it is designed to fit a connector cavity with a nominal hole diameter of 5.2 mm.
The seal accepts cable insulation diameters from 1.2 mm to 2.1 mm.
Part Number: 320455A94.
This product requires other components for a fully functional assembly configuration:
