Eyelets / Ring Terminals

Grounding Experts. Lear’s Eyelet product portfolio includes a wide spectrum of standard and customized ring terminal solutions.

Published

Contents
Eyelets / Ring Terminals
Various eyelet types and tailored configuration possibilities enable finding the best solution for a broad range of standard automotive 12V/24V applications as well as for 48V and electric vehicles.
Product Features
  • Wire size range, hole diameter and shape, thickness, bending, many mating stud sizes
  • With and without anti-rotation feature
  • Cable copper and aluminum variants
  • Plating: Sn, Ag, Ni, no surface treatment

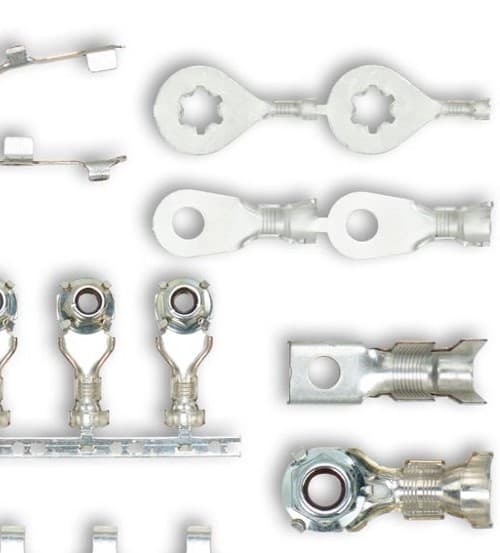

  • Large selection of different types: standard crimp ring terminals with and without nuts, tube crimp eyelets, and ultrasonic welded
  • Types with lateral crimping area
Product Functions
  • Extensive range of typical and customized solutions for grounding (2000+ part numbers)
  • Applications: Battery connections, ground connections, power distribution units, high power connections
  • Easy installation and assembly for different crimp feed types (end-to-end, left/right payoff, loose pieces)
  • Proven quality
  • Customized configuration possibilities
