TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E33902000
- Product Family
- COS, AFS
Other properties
- No. of cavities
- 22
- Terminal Type
- Tab
- Terminal Size [mm]
- 0.63, 1.5, 2.8
- Sealable
- Unsealed
- Fixation feature
- YES
- TPA
- With TPA
- Color
- GRAY
- Min Temp (C)
- -40
- Max Temp (C)
- 105
- Connector Application
- Inline, Door to body, Roof to body
- Mechanical coding
- B
2D Drawing

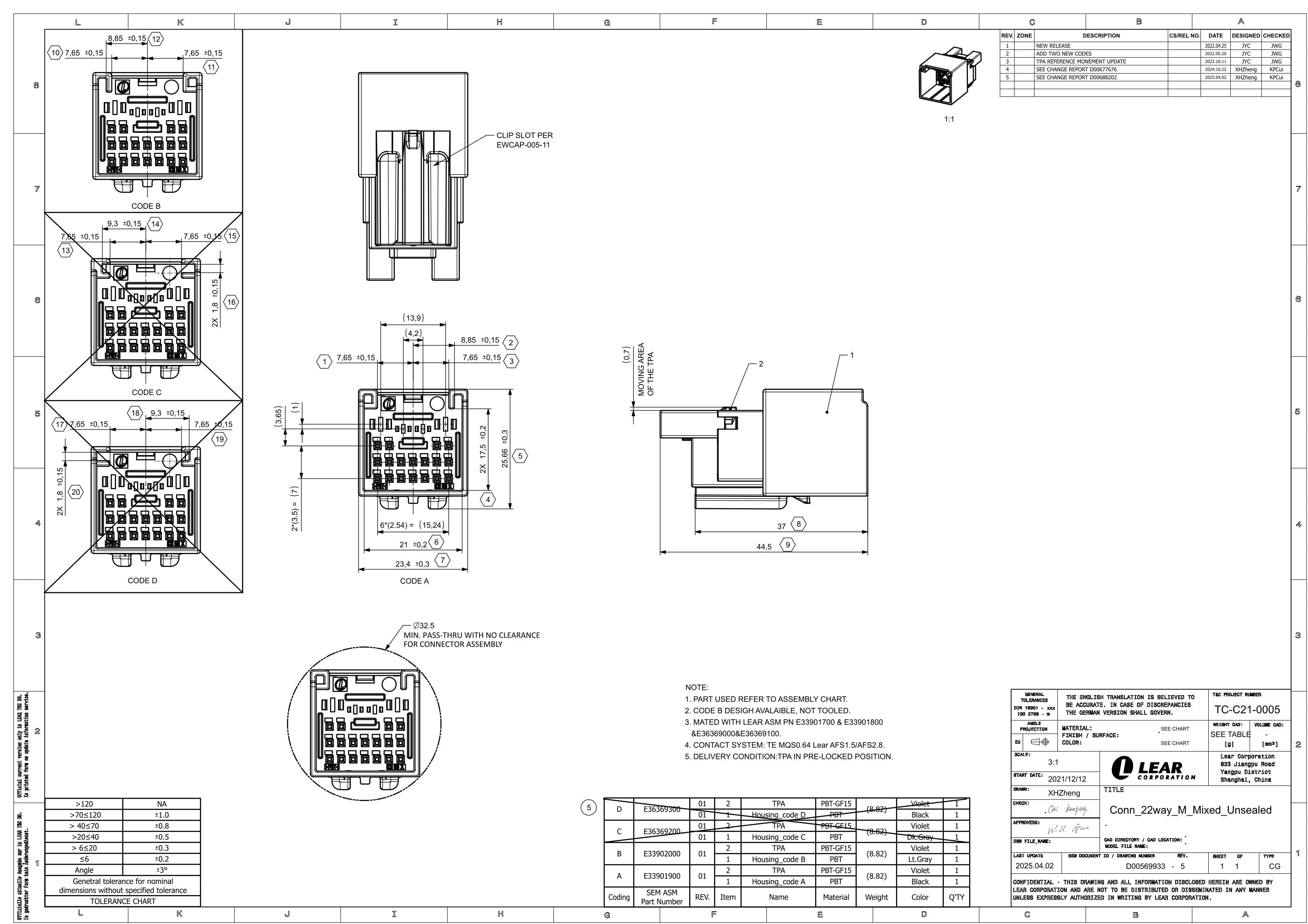

2D Drawing E33902000
E33902000 - 22way COS/AFS 0.63/1.5/2.8 Tab Unsealed Gray Connector, Code B
Part Number: E33902000
Product Specification
This unsealed connector offers 22 cavities and accommodates tab terminals in three sizes: 0.63, 1.5, and 2.8 mm. It belongs to the COS and AFS product families within the Connectors category.
Primarily designed for inline, door to body, and roof to body applications in automotive vehicles.
Mating integrity is ensured through a Code B mechanical coding (poka-yoke) feature, and the connector is equipped with Terminal Position Assurance (TPA). A connector-to-car body fixation feature is also incorporated.
The main connector part is molded in PBT with a dominant gray color. The operating temperature range spans -40 to 105 °C.
Part Number: E33902000, compatible with: 6098-7129.
This product requires other components for a fully functional assembly configuration:
